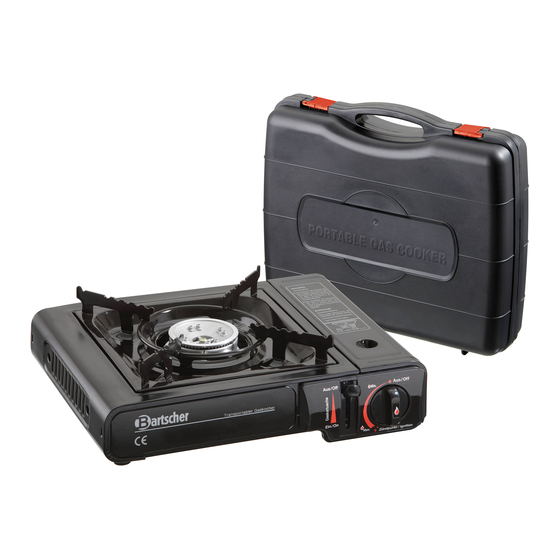

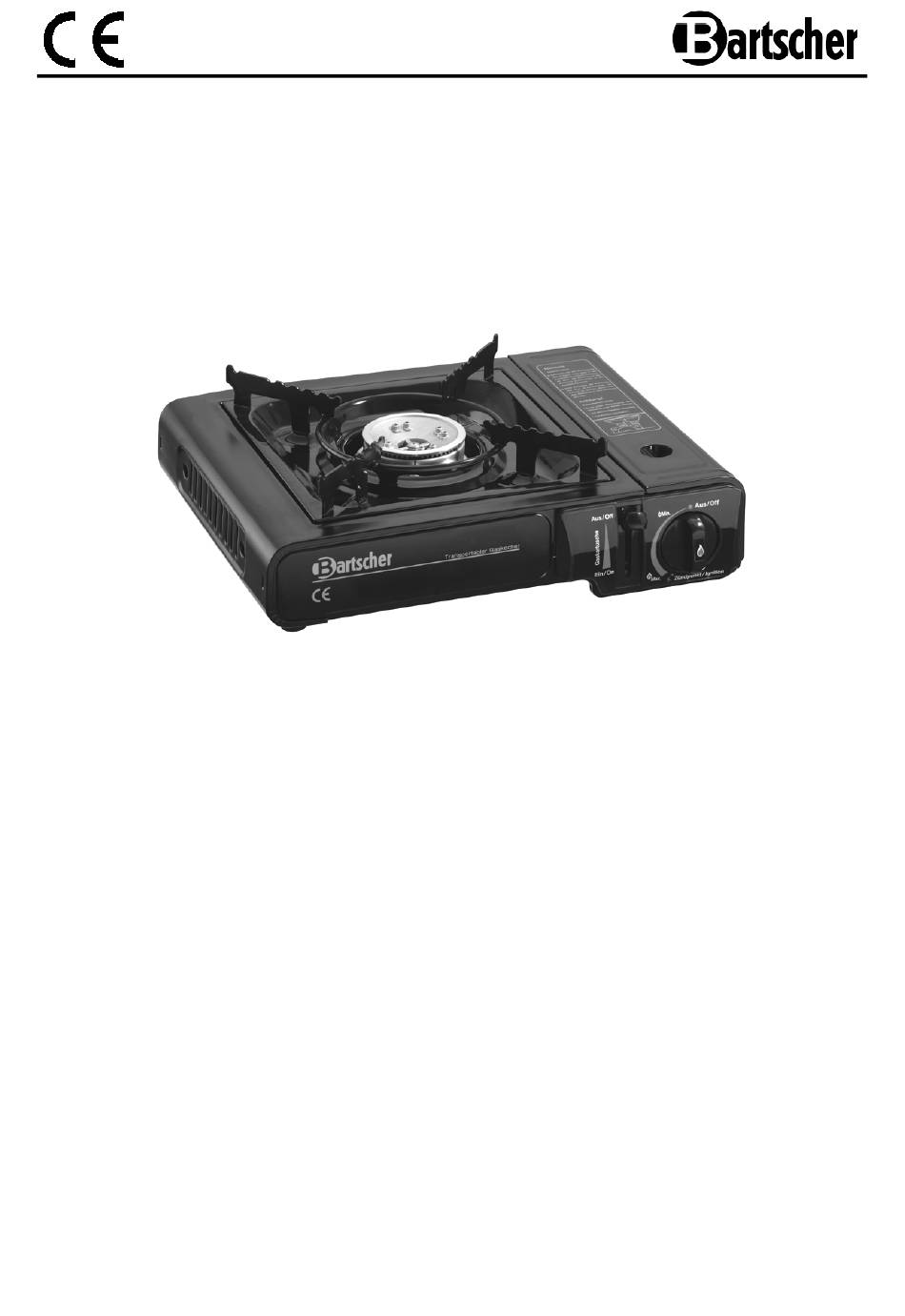

- Page 1 A150421 Original-Gebrauchsanleitung V6/0217...
- Page 2 ----------------------------------------- Seite 1 bis 14 DEUTSCH ----------------------------------------- from page 15 to 28 ENGLISH ----------------------------------------- de page 29 à page 42 FRANÇAIS ----------------------------------------- pagine da 43 a 56 ITALIANO ----------------------------------------- de la página 57 a la 70 ESPAŇOL ----------------------------------------- as páginas desde 71 até 84 PORTUGUÊS ----------------------------------------- blz.
-
Page 3: Table Of Contents
4.1 Overview of parts ....................23 4.2 Technical specification ..................24 5. Operation ......................... 25 6. Cleaning ........................27 7. Troubleshooting ...................... 27 8. Waste disposal ......................28 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 4: Safety
Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 5: Safety Instructions
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.2 Safety instructions CAUTION! Use the device outdoors! The device is not intended for use by individuals (including •... - Page 6 It is forbidden to use griddle plates. • This device should be used only in combination with the • Bartscher gas cartridge Code-No. A150425, according to EN 417. Using different cartridges may be dangerous. Gas cartridges should be exchanged only outdoors and away •...
- Page 7 Check the device’s tightness outdoors. Do not detect leakages • using the flame, but use the soapsuds solution (leakage detector). Before removing a gas cartridge, make sure the burner is • switched off. Place the gas cooker on a stable and even surface. •...
-
Page 8: Intended Use
Safety device The gas cooker is equipped additionally with a safety device that cuts off the gas supply in case the pressure inside the cartridge rises to quick, e.g. due to overheating. The gas cartridge cannot be arrested if the control dial is not set to Aus/Off position or the grid is not in transportation position respectively. -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Overview of parts ⑥ ⑤ ④ ⑦ ③ ② ⑧ ① ⑨ ① Enclosure ② Frame for cooking tray ③ Windbreak ④ Pot fitting ⑤ Burner head piece ⑥ Gas cartridge ⑦ Lid of cartridge slot ⑧... -
Page 12: Technical Specification
Connection pressure Butane vapor pressure Gas consumption: 150 g/h Gas type: Butane Cartridges: Bartscher butane cartridges Code-No. A150425 Dimensions: W 340 x D 280 x H 120 mm Weight: 1.6 kg Pressure shut off device: 5,0 ~ 6,5 bar We reserve the right to make technical changes! -
Page 13: Operation
5. Operation Valve nose 1. Position the pot fitting correctly. Take note of the warning label! 2. Open the lid of the cartridge slot (3) and insert the cartridge with head piece pointing to the front. So the recess faces upwards and is adjusted into the valve guide. - Page 14 CAUTION! If you hear a “fizzling” sound this means that the gas cartridge is not connected properly. Correct the position of the gas cartridge. Remove gas container CAUTION! Only change gas container outdoors! o Set the control dial (11) to Aus/Off position (10).
-
Page 15: Cleaning
6. Cleaning o Before and after every use the cooker should be cleaned thoroughly. o Set the control dial (11) to Aus/Off position (10). o Set the cartridge locking lever (15) to Aus/Off position (17). o In case of need the cartridge locking lever (15) may be set directly to Aus/Off position (17). -
Page 16: Waste Disposal
For that purpose remove burner head piece from the device. CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
