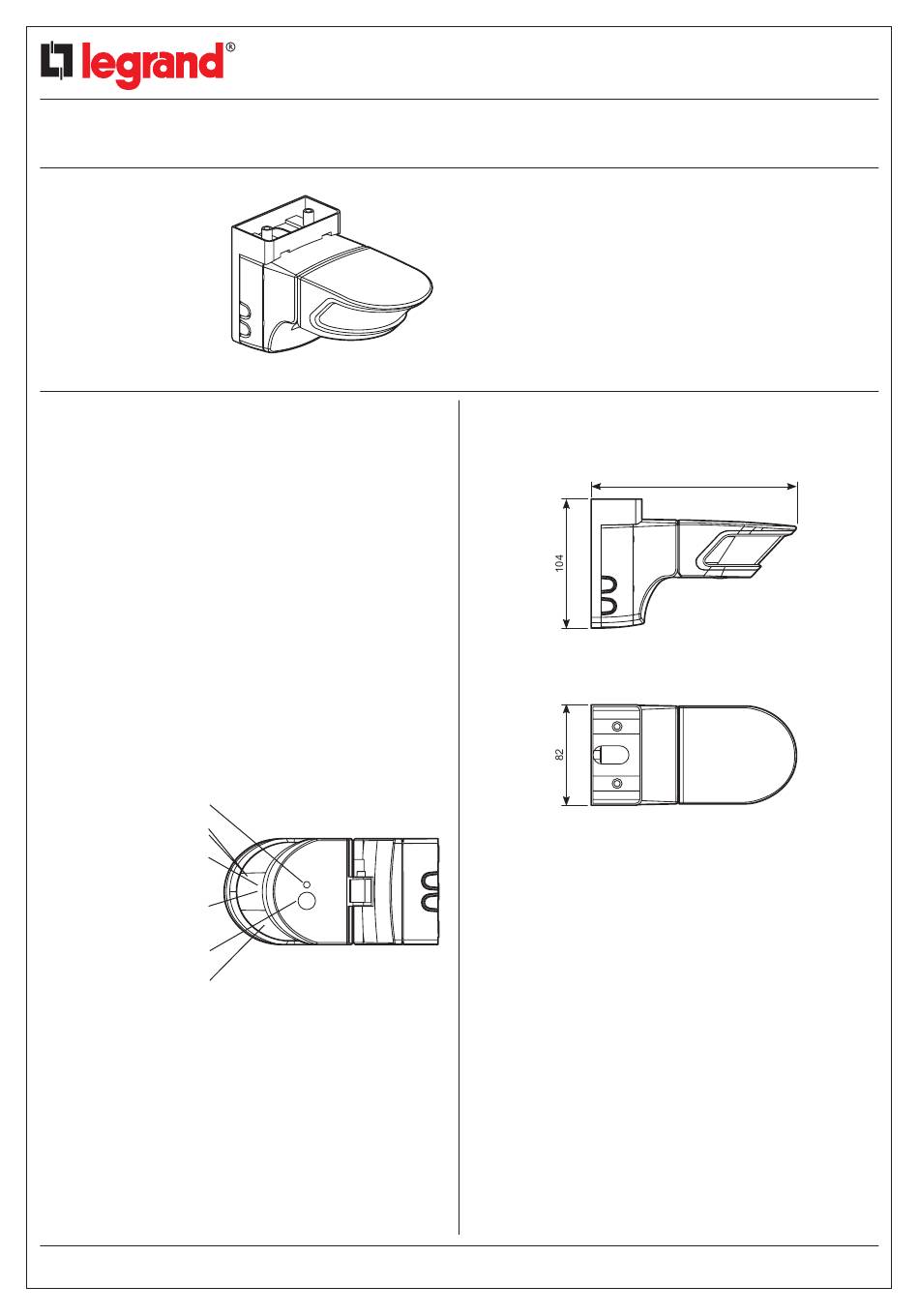

Digital detector - PIR
1. USE
This device allows a light source to be controlled automatically via a
controller through the detection of movement in its surveillance zone.
Movement detector with detection angle of: 270° horizontally
Vertical orientation: 90°
Detection type: infra-red (PIR)
Assembly type: wall and ceiling
2. TECHNICAL FEATURES
Voltage: 27 V =
No load power consumption: 12 mA
Connection between detector and actuator: RJ 45 lead or cable or
BUS/SCS cable to be fitted with RJ 45 connector
Surface mounted
Weight: 250 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP55
Usage temperature: -5ºC to +45ºC
Storage temperature: -20ºC to +70ºC
Green programming indicator
PIR Detector
PIR receiver LED
(for configuration tool
or remote control)
PIR transmission LED
(for configuration tool)
Learn BUTTON
Green detection indicator
Technical data sheet: F01131EN/01
CONTENTS
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 488 30
3. OVERALL DIMENSIONS
Updated on: 18/08/2010
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical features . . . . . . . . . . . . . . . .1
3. Overall dimensions. . . . . . . . . . . . . . . .1
4. Connection . . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . . .2
6. Settings . . . . . . . . . . . . . . . . . . . . . . . .3
7. Performance. . . . . . . . . . . . . . . . . . . . .4
8. Maintenance. . . . . . . . . . . . . . . . . . . . .4
9. Standards . . . . . . . . . . . . . . . . . . . . . . .4
166
Created on: 20/05/2010
Page
1/4
Advertisement
Related Manuals for LEGRAND 488 30
Summary of Contents for LEGRAND 488 30
- Page 1 87045 LIMOGES Cedex Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88 Digital detector - PIR Catalogue number(s): 488 30 CONTENTS Page 1. Use ......1 2.
- Page 2 Digital detector - PIR Catalogue number(s): 488 30 4. CONNECTION 5. INSTALLATION Type of terminals: RJ 45 Wall RJ 45 RJ 45 patch and equipment cords Ceiling CLICK RJ 45 - BUS/SCS connector RJ 45 doubler Option: It is possible to manage the detector by infra-red remote control.
- Page 3 Digital detector - PIR Catalogue number(s): 488 30 6. SETTINGS 6. SETTINGS (continued) Partial on/Group off mode: - Parameters: Possibility of controlling one or more lighting points individually. In this mode it is essential for a lighting group to be created:...
- Page 4 Digital detector - PIR Catalogue number(s): 488 30 7. PERFORMANCE 8. MAINTENANCE Keep the lens clean. Height Clean the surface with a cloth. Do not use: acetone, tar-removing cleaning agents or trichloroethylene. Maintenance with the following products: - Hexane (En 60669-1),...
