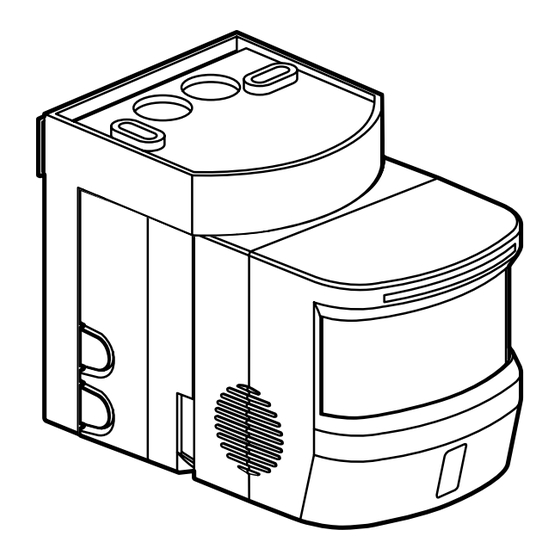

Digital detector - PIR
1. USE
This device allows a light source to be controlled automatically via a
controller through the detection of movement in its surveillance zone.
Movement detector with detection angle of: 140° horizontally
Horizontal orientation: 45°
Vertical orientation: 90°
Detection type: infrared (PIR)
Mounting type: wall and ceiling
2. TEChNICal fEaTURES
Voltage: 27 V =
No load power consumption: 12 mA
Connection between detector and controller: RJ 45 lead or cable or
BUS/SCS cable to be fitted with RJ 45 connector
Weight: 250 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP42
Usage temperature: -5ºC to +45ºC
Storage temperature: -20ºC to +70ºC
Closed cover
Open cover
PIR Detector Sensor
IR reception LED
(for configuration tool
or remote control)
IR transmission LED
(for configuration tool)
Green programming indicator
Green detection indicator
Configurators
LEARN button
Technical data sheet: S000064187EN-1
CONTENTS
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 488 25

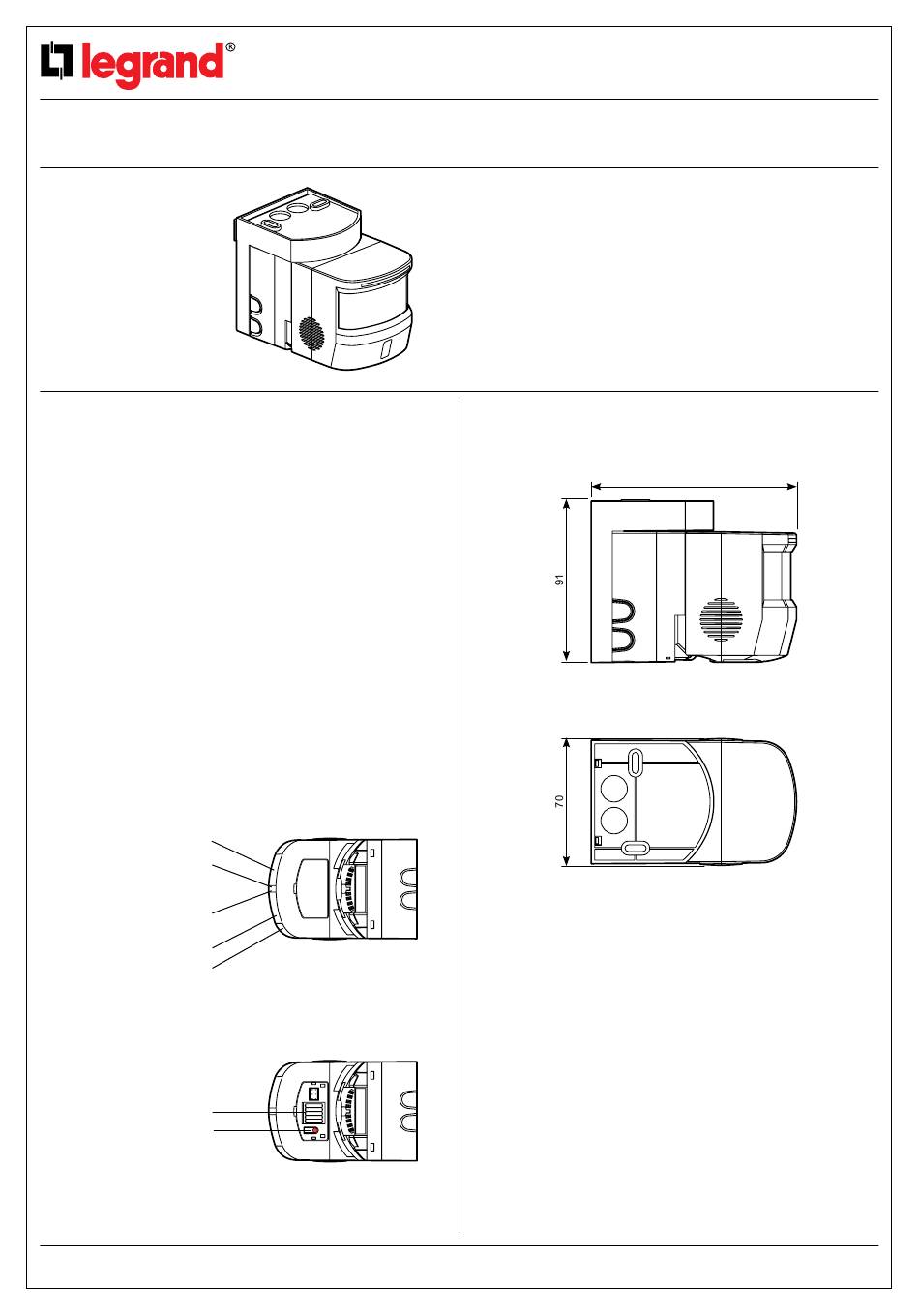

3. OvERall DImENSIONS
Updated on:
CONTENTS
1. Use. . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical features . . . . . . . . . . . . . . .1
3. Overall dimensions. . . . . . . . . . . . . . .1
4. Connection . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . .2
6. Disassembly. . . . . . . . . . . . . . . . . . . .2
7. Settings . . . . . . . . . . . . . . . . . . . . . . .3
8. Performance. . . . . . . . . . . . . . . . . . . .4
9. Maintenance. . . . . . . . . . . . . . . . . . . .4
10. Standards and approvals . . . . . . . . . .4
116
Created on: 23/03/2011
Page
1/4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND 488 25
Summary of Contents for LEGRAND 488 25
- Page 1 87045 LIMOGES Cedex Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88 Digital detector - PIR Catalogue number(s): 488 25 CONTENTS Page 1. Use......1 2.
- Page 2 Digital detector - PIR Catalogue number(s): 488 25 4. CONNECTION 5. INSTallaTION Type of terminals: RJ 45 Wall RJ 45 RJ 45 patch and equipment cords Ceiling RJ 45 - BUS/SCS connector RJ 45 doubler Option: It is possible to control the detector by infrared remote control.
- Page 3 Digital detector - PIR Catalogue number(s): 488 25 7. SETTINgS 7. SETTINgS (continued) Partial on/group off mode: - Parameters: Possibility of controlling one or more lighting points individually. In this mode it is essential for a lighting group to be created:...
- Page 4 Digital detector - PIR Catalogue number(s): 488 25 8. PERfORmaNCE 9. maINTENaNCE Keep the lens clean. height Clean the surface with a cloth. 12° Do not use: acetone, tar-removing cleaning agents or 2.4 m trichloroethylene. Maintenance with the following products: - Hexane (En 60669-1)
