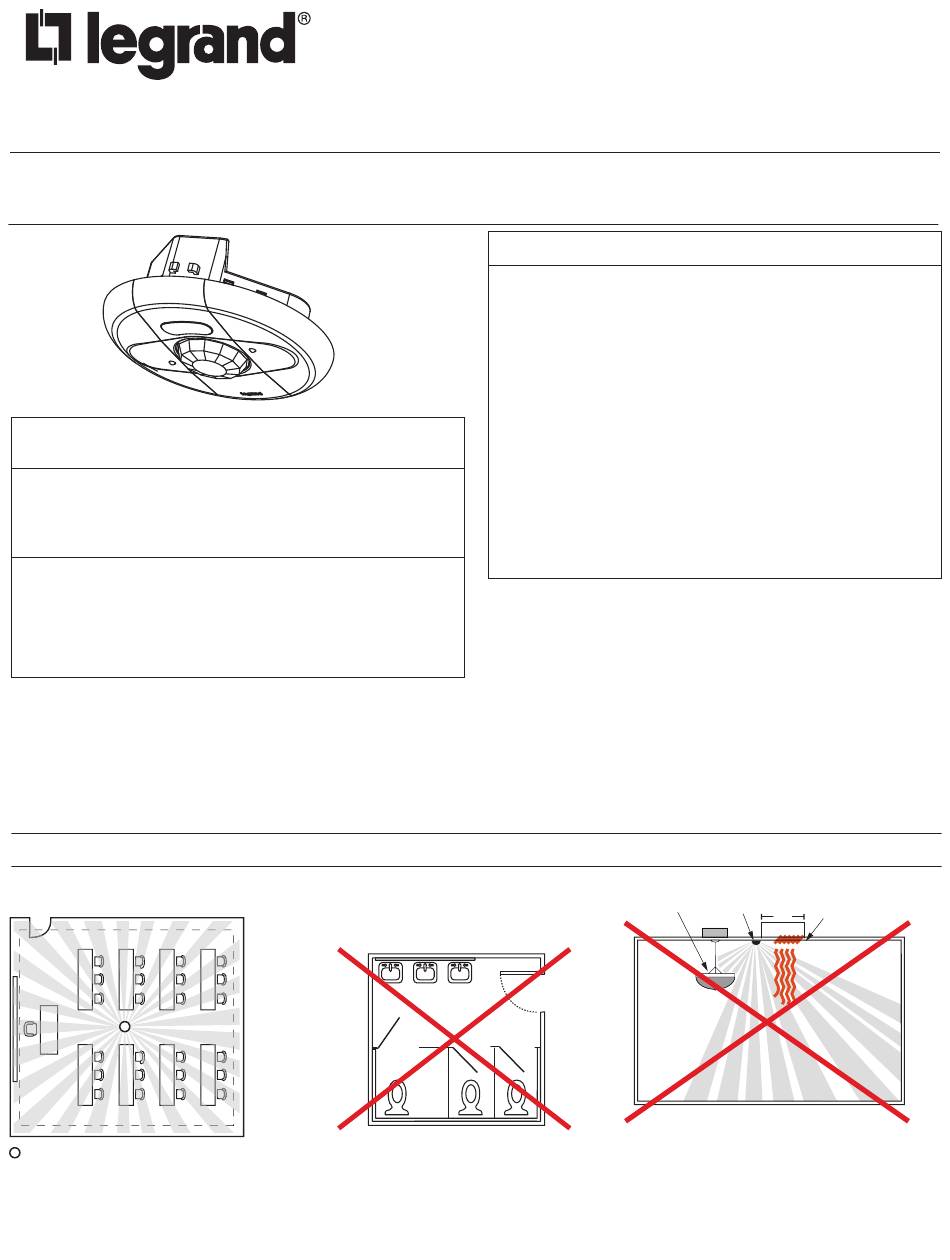

LEGRAND Wattstopper LMPC-100 Instructions Manual

No: 32619 – 11/23 rev. 1
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMPC-100, LMPC-100-1, LMPC-100-5
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
LMPC-100-U and LMPC-100-1-U are BAA and TAA compliant (Product produced in the U.S.)
This unit is pre-set for Plug n' Go™ operation, adjustment is
optional.
For full operational details, adjustment and more features of the
product, see the DLM System Installation Guide provided with
Wattstopper room controllers, and also available at
www.legrand.us/wattstopper.
Installation shall be in accordance with all applicable
regulations, local and NEC codes. Wire connections shall be
rated suitable for the wire size (lead and building wiring) employed.
For Class 2 DLM devices and device wiring: To be connected to a
Class 2 power source only. Do not reclassify and install as Class
1, or Power and Lighting Wiring.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
Sensor Capteur
SENSOR PLACEMENT
25' 7.6m
25'
7.6m
Wattstopper

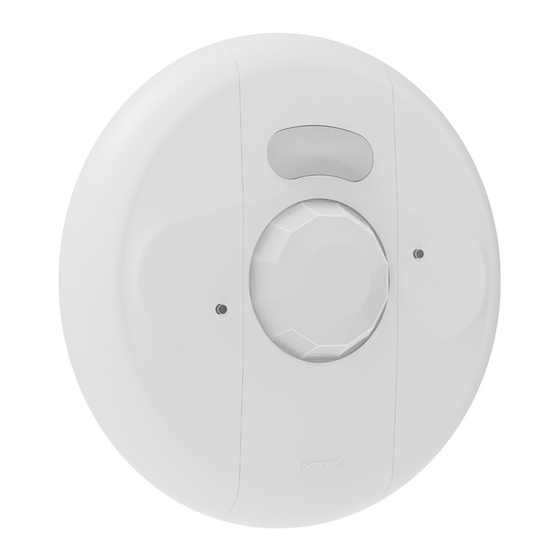

DLM PIR Ceiling Mount Occupancy Sensor (version 4)
DLM IRP Montage au Plafond Détecteur de Présence (v4)
DLM Sensor de Ocupación PIR de Montaje en Techo (v4)
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Voltage ..................................................................................... 24VDC
Current Consumption ....................................................................7mA
Power Supply ........................................ Wattstopper Room Controller
Connection to the DLM Local Network ........................... 2 RJ-45 ports
DLM Local Network characteristics when using LMRC-11x/2xx room
controllers:
Low voltage power provided over Cat 5e cable (LMRJ);
max current 800mA. Supports up to 64 load addresses,
48 communicating devices including up to 4 LMRC-10x series
and/or LMPL-101 controllers.
Free topology up to 1,000' max.
Environment ........................................................ For Indoor Use Only
Operating Temperature ........................32° to 131°F (0° to 55°C)
Storage Temperature ......................... 23° to 176°F (-5° to 80°C)
Relative Humidity ..............................5 to 95% (non condensing)
Patent Pending
Mount sensor at least 6' away from air supply.
Avoid obstacles that block sensor's line-of-sight.
®
SPECIFICATIONS
Pendant
fixture
Sensor
6'
Strong air
supply
