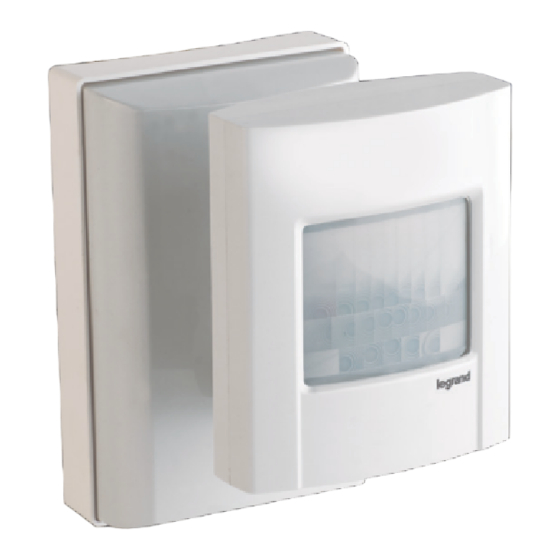

Weatherproof movement sensor

Advertisement

Quick Links

Read all instructions before installation. This instruction manual is
to be left at the installation site. This movement detector must only
be connected to a 230-240Vac 50Hz supply by a licensed electrician.
1

Specifications

Supply Voltage: 230-240V a.c. 50Hz
Min. Load
Max. Load
Operating Temp.
Mounting height
Weatherproof rating
Standby
PIR Detection Angle
Contact Status
Range Sensitivity Adjustment 1m to 18 m
Timer Adjustment
Active Detection
Head Swivel
2

Installation

The movement detector has been designed for a harsh climate, complying with the strict IP66 rating and is intended to be used in outdoor
installations, however the detector can be installed indoors.
The detector can be installed on the ceiling surface or on the wall. It must be installed onto the (included) surface mounting block to
maintain IP66 rating. The recommended mounting height of the detector is 2.4m.
The head should be oriented in such a way that the expected traffic is moving across the field of view of the detector and not directly
towards it. Refer to Figure 2.
To change the head orientation, adjust the head position by hand to the desired position. Refer to Figure 3 to see different mounting options.
Add silicon flush caps (provided) to mounting holes to maintain IP66 rating.
If you intend to use multiple sensors on the same circuit ensure sensoring range/area does not overlap.
Triscan Weatherproof Movement Sensor
3 Wire
0VA
2400W Incandescent
2400VA Fluorescent
1200VA LED
0° to 40°C
1.8 to 2.4m
IP66
0.5W
120°
Normally Open
10 Lux to Full Sun
8 secs to 15 min
PIR, Microwave and Photoelectric
120°
Instruction Manual
Adjustable range,
Adjustable head
time delay and
Protected wiring
Lux sensor
Cat No. 488TRI3W

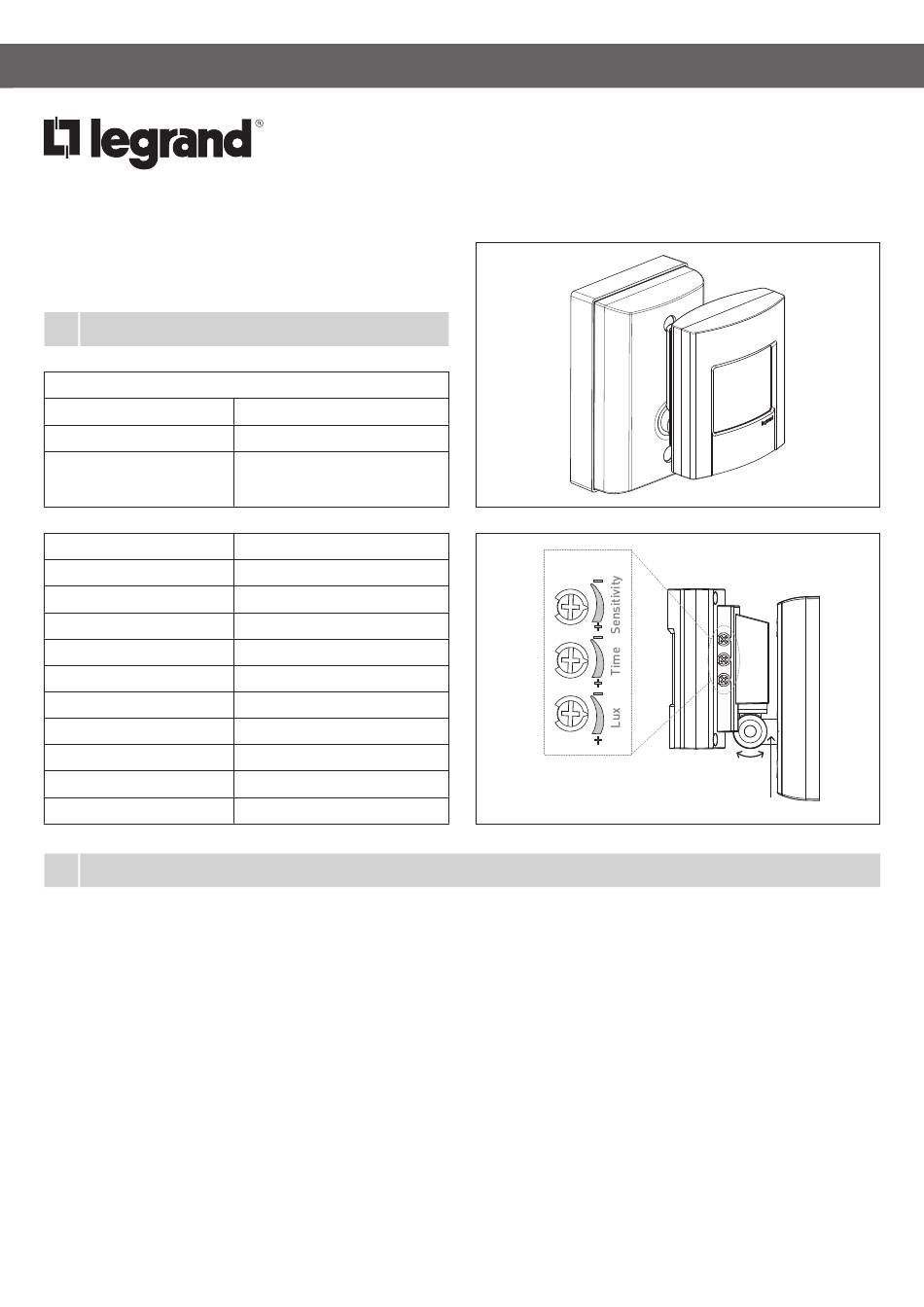

Figure 1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Triscan 488TRI3W and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND Triscan 488TRI3W

  • Page 1 Triscan Weatherproof Movement Sensor Cat No. 488TRI3W Instruction Manual Read all instructions before installation. This instruction manual is to be left at the installation site. This movement detector must only be connected to a 230-240Vac 50Hz supply by a licensed electrician. Specifications Supply Voltage: 230-240V a.c.
  • Page 2 Ceiling 3 wire Top view Brown Auto 90º Blue Traffic Direction Brown Figure 2 120º Auto & ON override Blue Ceiling Top View Side View Switch: CAT EM770 90º Brown Auto & OFF override 120º Blue Top View Side View Switch: CAT EM770 Figure 3 Brown...
  • Page 3 Remote loads can be connected up to the maximum rating. Refer to Figure 5 for electrical connection options. Note: Different connection and configuration options are possible, e.g. for remote control of detector’s operation. All wiring for such circuits must be done by a licensed electrician. Setting Up Before the detector is commissioned for operation it should be tested by a “Walk test”: 1.
  • Page 4 Such intellectual property remains the property of HPM Legrand 40°C. Extended exposure to UV rays (such as exposure to direct sunlight) in all cases. HPM Legrand reserves the right to modify the specification of may cause discolouration of this product. This product is not suitable this product at any time.
