2.6 GENERAL INSTRUCTIONS FOR INSTALLATION IN
BESPOKE ITEMS OF FURNITURE
• In order to sell an ebios Quadra Inside Automatic for installation in a
bespoke item of furniture, the builder must first accept and sign for the
product information for this type of installation (see Chapters 7 and 8).
• Without exception, the furniture design of a bespoke item of furniture for
the installation of a Quadra Inside Automatic I SL or II SL must consist
as a minimum requirement of a top / table plate and a housing compart-
ment with air supply. In the case of table installations, no housing space
is required, but it is still advisable to have such a space.
• For installation in a bespoke item of furniture (combustible materials),
always ensure that the Quadra Inside Automatic I SL or II SL may NOT be
installed in a furniture niche. Fire hazard!
• No objects are permitted above the Quadra Inside Automatic I SL or II SL,
up to the room ceiling (ceiling distance >1000 mm).
• The Quadra Inside Automatic I SL or II SL may only ever be installed
in the top plate or table plate of a furniture item. (example: bureau,
sideboard, pull-out cabinet, table)
• The furniture items must always be anchored to the wall or floor and
must be secured to prevent accidental movement, pushing and/or lifting
forces. For this, appropriate fastening materials must be selected.
• All inlet apertures and rear ventilation features must be left unob-
structed, and must not be blocked since otherwise a heat build-up would
take place. Risk of fire!
• The minimum cross section of the free opening for air intake in
to a furniture item measures 200 cm
rear ventilation features must be dimensioned appropriately.
• The area below the Quadra Inside Automatic I SL or II SL housing (hous-
ing area, Fig. 1) must not be used as a storage area. Storage area and
housing area must be separated spatially by a partition floor and a rear
panel.
1
Quadra Inside Automatic I SL or II SL
2
Cover plate / table-top
3
Housing area
4
Storage room
GB 9
/ 400 cm² (I SL / II SL). The
2

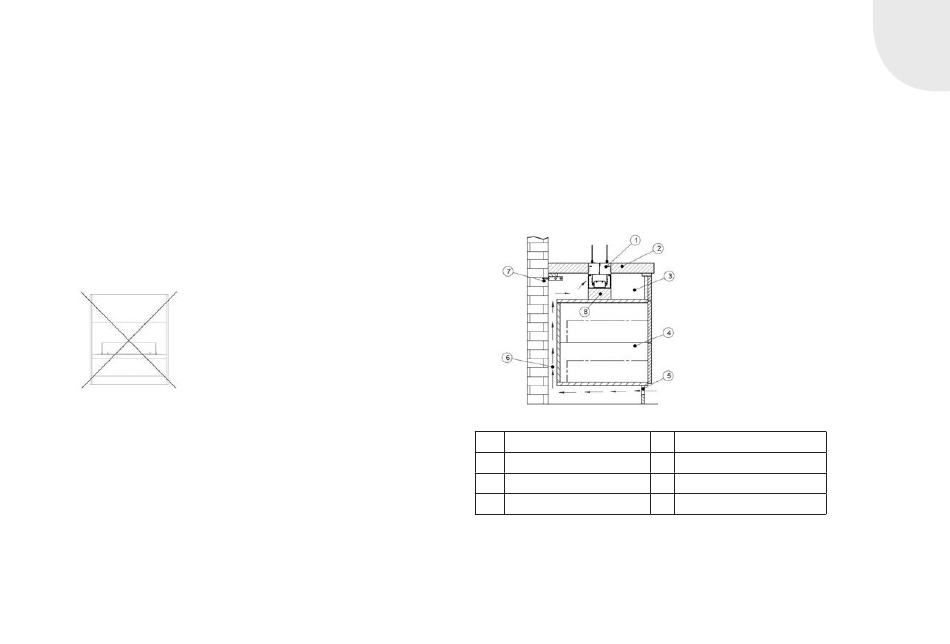

Fig. 1 Example of pull-out cabinet
Air inlet aperture
5
200 cm² / 400 cm² (I SL / II SL)
6
Rear ventilation
7
Wall mounting
8
where necessary a plinth base
