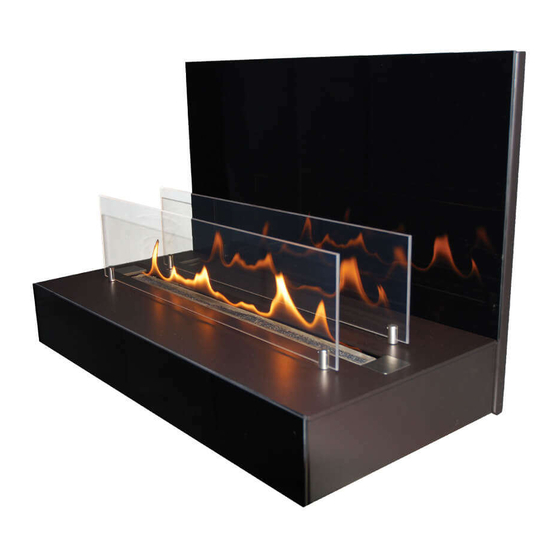

- Page 1 Installation and Operating Manual ebios-fire - Cabinet fire...
- Page 2 PREFACE / QUALITY PHILOSOPHY You have decided in favour of a Spartherm ebios-fire - thank you for your confidence in our company. In a world of excess and mass production, our company stands for the values expressed by our owner, Gerhard Manfred Rokossa: „High technical quality combined with contemporary design and service to the...
-
Page 3: Table Of Contents
CONTENTS 1. General information 5. Maintenance / troubleshooting 1.1 Scope of Delivery 5.1 Furniture and glass becomes sooted heavily, rapidly and unevenly. 5.2 Fire is difficult to ignite 2. Installation instructions 5.3 Unpleasant odours 2.1 Technical data 5.4 Appearance of flames changes 2.2 CERAMAT FN burner mat 5.5 Spilt ethanol ignites 2.3 Basic requirements for installation... -
Page 4: General Information
Storage in living space: max. 5 litres Never leave these groups of persons unattended near the ebios-fire when a fire is burning or has just been extinguished! The ebios-fire must not be 1.1 SCOPE OF DELIVERY operated without supervision! State-specific and local directives and regulations, in particular the fire... -
Page 5: Installation Instructions
The device must not be able to tilt and must be positioned horizontally. Secure the wall-mounted models and floor-mounted models on the wall or floor. This is in the interest of your own safety. 2.1 TECHNICAL DATA Fig.1 ebios-fire Bioethanol Fuel type: (ethanol content 96%) Cover plate Fill quantity: max. -
Page 6: Ceramat Fn Burner Mat
GefStoffV Hazardous substances directive The ebios-fire may only be set up in rooms and locations where there are no hazards due to the site, structural conditions and type of use. The floor area of the installation room must be designed and dimensioned so that the ebios-fire can be operated properly and as per the intended use. -
Page 7: Installation Site
Kitchen row Kitchen row 2.4 INSTALLATION SITE When setting up/installing the ebios-fire ensure that the device is not posi- tioned within the direct radiation area of large heat sources (heaters, stoves etc.) or in rooms exposed to high temperatures (e.g., saunas). -
Page 8: Operating Manual
3. OPERATING MANUAL 2.6 COMBUSTION AIR SUPPLY Your ebios-fire draws its combustion air from the room in which it is Read these installation and operating instructions carefully before installing installed (dependent on indoor air). It must be ensured that there is a suf- and starting up your ebios-fire. -
Page 9: Fuel
= 1 hour! intended for heating or continuous operation! Nevertheless, it should • Do not smoke when handling fuel and operating the ebios-fire. be taken into account that heat (approx. 3 kW) is generated as a by- product of the combustion process. Amongst other things this can cause Failure to follow these basic rules can result in uncontrolled ignition or even increased heating in the room where the fireplace is installed. -
Page 10: Startup
For your safety only fill the burner just before use to prevent it from being 4. Check the tank content. ignited unintentionally or by unauthorised persons and to also stop the fuel 5. Make sure that the cover plate is placed on the burner and covers the from evaporating. - Page 11 9. Take the bottle to wet the burner. Insert the bottle with the opening 13. Wet the burner mat with fuel using the bottle which has just been filled. into the tank opening so that it projects into the fuel. Press the bottle together so that the air escapes and the fuel is sucked up when it is released.
-
Page 12: Refilling The Burner
Please also leave the protective panes which may still be hot on the device during this time! Risk of burn injuries! Remove any dust on and below the ebios-fire furniture regularly as dust particles can burn or char. This can cause dirt in the room and on the The burners are designed for the fuel to be burnt until all gone. -
Page 13: Furniture And Glass Becomes Sooted Heavily, Rapidly And Unevenly
5.1 FURNITURE AND GLASS BECOMES SOOTED 5.4 APPEARANCE OF FLAMES CHANGES HEAVILY, RAPIDLY AND UNEVENLY. • Is the burner mat damaged? If this did not occur from the very start, please check the following points: • Has the correct fuel been used? •... -
Page 14: General Warranty Conditions
• Use of unsuitable or non-designated fuel. unaffected. • We recommend bioethanol from Spartherm Feuerungstechnik GmbH with a concentration in excess of 96% for your ebios-fire device. Spartherm Feuerungstechnik GmbH grants a 24-month warranty on ebios- • incorrect transportation and/or incorrect storage fire devices (Solitaire and inserts) •... -
Page 15: Elimination Of Defects / Repair
Within the scope of this warranty promise Spartherm Feuerungstechnik and deed. It is expressly recommended to have ebios-fire products checked GmbH reserves the right to either remedy the fault or replace the device free regularly by a stove fitter/specialist dealer. - Page 16 IT Il vostro rivenditore specializzato | E Sus comercios especializados NL Uw vakhandelaar | PL Państwa sprzedawca | РУС Ваш дилер SPARTHERM Feuerungstechnik GmbH · Maschweg 38 · D-49324 Melle Phone +49 (0) 5422 94 41-0 · Fax +49 (0) 5422 9441-14 · www.spartherm.com GB 16...
