2.6.1 MINIMUM DIMENSIONS FOR FURNITURE

2.6.2 FIRE SAFET Y/MINIMUM DISTANCES WHEN

CONSTRUCTION

SETTING UP AS FURNITURE

When setting up a bespoke furniture item against a non-combustible wall,

maintain a minimum distance of 150 mm at the back and to the side. The

reference point is the outside edge of the Quadra Inside Automatic I SL or

II SL housing (see Figs. 4 and 5).

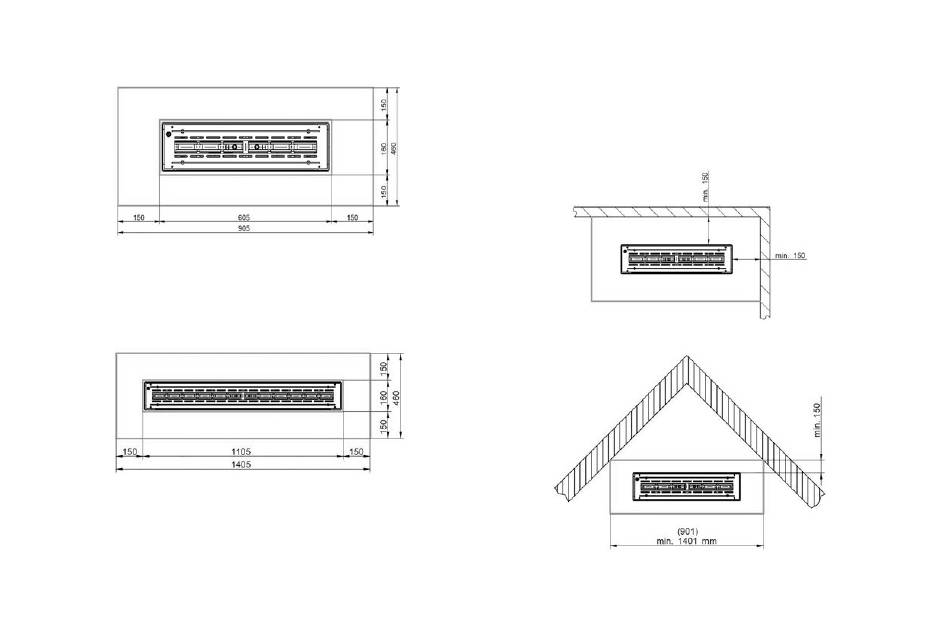

Fig. 2a Minimum dimensions for top/table plate on Quadra Inside

Automatic I SL with frame

Fig. 4 Minimum distances from the non-combustible wall

Fig. 2b Minimum dimensions of top / table plate on Quadra Inside

Automatic II with frame

Fig. 5 Minimum distances in a room corner
