OPERATING INSTRUCTIONS

GB

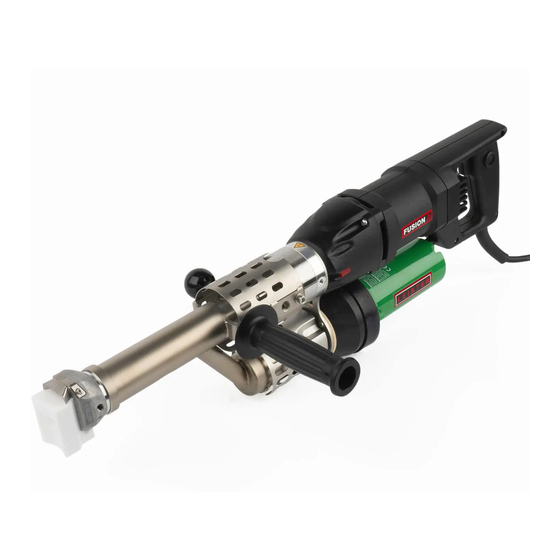

Leister FUSION 3
Hand - Extruder
Please read operating instructions carefully before
use and keep for further reference.

APPLICATION

Welding PE and PP thermoplastics for applications in
• container engineering
• plastic fabrication
• pipeline construction
• landfill sites and abandoned polluted areas
Leister Process Technologies, Riedstrasse, CH-6060 Sarnen / Switzerland
Tel. + 41 41 662 74 74 Fax + 41 41 662 74 16
www.leister.com
®
sales@leister.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUSION 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leister FUSION 3

Summary of Contents for Leister FUSION 3

  • Page 1: Operating Instructions

    • container engineering • plastic fabrication • pipeline construction • landfill sites and abandoned polluted areas Leister Process Technologies, Riedstrasse, CH-6060 Sarnen / Switzerland www.leister.com sales@leister.com Tel. + 41 41 662 74 74 Fax + 41 41 662 74 16...
  • Page 2 WARNING DANGER! Danger when opening up the tool, as live com- ponents and connections are exposed. Therefore, before opening the tool, unplug it to ensure disconnection from the mains. Incorrect use of the hand extruder (e.g. overheating of the material) can present a fire and explosion hazard, espe- cially near combustible materials and explosive gases.
  • Page 3 10. Tool handle 3. Locking device 11. Drive unit 4. Drive on/off switch 5. Welding shoe 12. Hot air blower 13. Mains cable 6. Welding rod opening 14. Air slide 7. Extrusion rate regulation potentiometer FUSION 3 / Tool rest...
  • Page 4 OPERATING Leister FUSION 3 Preparation for welding • The tool rest (8) or handle (9) can alternatively be mounted left of right of the tool. • When using an extension cable, take care to ensure the minimum cable cross- section:...
  • Page 5 • The tool must only be laid down on the tool rest (see pg. 3, "FUSION 3 / Tool rest"). Use a fireproof base. The hot air jet must not be directed towards persons and objects.
  • Page 6 OPERATING Leister FUSION 3 Change of welding shoe • The welding shoe must only be changed when the tool has attained its operating temperature. Work with temperature resistant gloves only. Danger of getting burned! • Switch off the hot tool and disconnect it from the mains supply.
  • Page 7 • Guarantee and liability are in accordance with the guarantee certificate as well as with the currently valid general conditions of business and terms of delivery. • Leister Process Technologies rejects any guarantee claims for tools which are not in their original condition. The tools must never be altered or changed.
  • Page 8 ® Service Record Leister FUSION 3 This document should be kept up to date during repair or servicing by the authorized Leister Service Centre. This document should be in the possession of the owner of the equipment. Technical data Order No.
