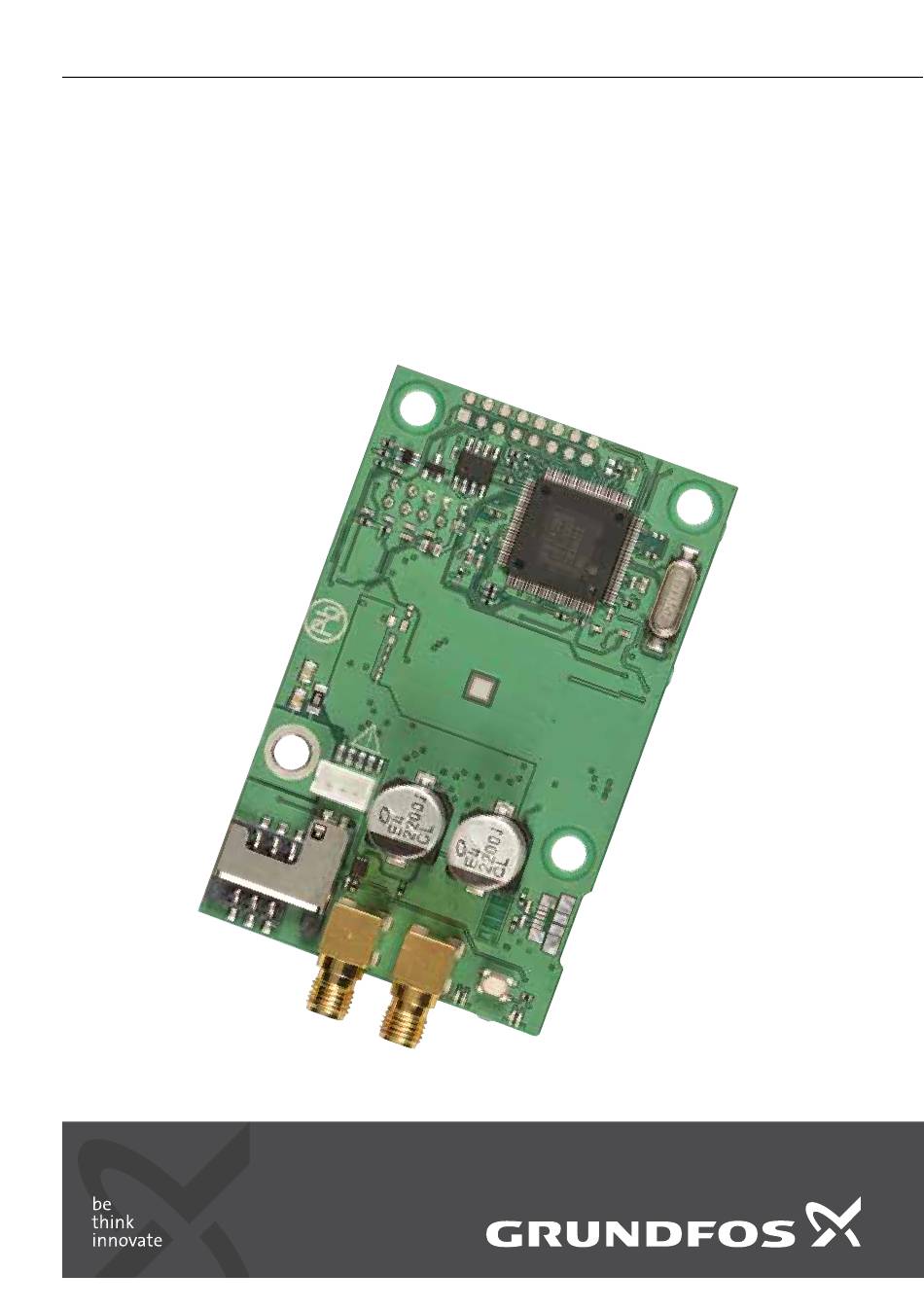

  • Page 1 GRUNDFOS INSTRUCTIONS CIM 260 SMS commands Functional profile and user manual...

  • Page 3: Table Of Contents

    7.5 Self-triggered IO event messages 7.6 Digital input naming relations 7.7 Configuration of alarm code texts Overview of commands 8.1 Configuration commands for CIM 260 8.2 Status commands for CIM 260 8.3 Control commands for CIM 260 8.4 Status commands for the product 8.5 Control commands for the product...

  • Page 4: Notes

    1.2 Notes 2. General description The symbols and notes below may appear in CIM 260 can be used as an SMS interface for control Grundfos installation and operating instructions, and monitoring of Grundfos products (for example safety instructions and service instructions.

  • Page 5: Ciu 261

    2.1 CIU 261 CIU 261 consists of a CIM 260 module and an IO 270 board mounted in a CIU box. The IO 270 adds input and output features to the functionality of CIM 260. See also section 7. Additional SMS functionality of CIU 261.

  • Page 6: Configuring Cim 260

    However, please read the rest of this table, and check that the default settings meet the requirements. If CIM 260 is to be re-initialised at a later time, for instance if you have forgotten the access code, press the reset button on the module for at least five seconds.

  • Page 7: Configuration For Monitoring And Control Via Sms

    CODE: Changed to <access code> With this configuration command, you can add a number to the CIM 260 phone number list. The number must be of international format with "+" followed by the country code and the local number. In the case of local numbers, "+"...
  • Page 8 If the parameter is omitted, the phone number of the sender will be deleted. DELNUMBER [phone number If the parameter is "ALL", all phone numbers will be deleted, and CIM 260 | ALL] sends this message: DELNUMBER: Phone number list empty To see the phone number list, use the command "LIST".
  • Page 9 Command Description When this function is activated, CIM 260 regularly sends an SMS in form of a "STATUS1" message to all numbers in the phone number list. For further information about the "STATUS1" message, see section 4. Status commands. "HEARTBEAT" is a CIM 260 configuration command that you can use to set at which hour of the day and on which weekdays the message is to be sent.
  • Page 10 When the time value has been set either manually with the command "TIME" or automatically from the network service, the internal real time clock of CIM 260 works correctly as long as a power supply is present. To see the settings, use the command "SMSSETTINGS".
  • Page 11 CONNECTIONALARM: Changed to <ON | OFF> The intention for switching the alarm off is to use CIM 260 in a CIU 261 without having to connect a GENIbus device, if you only want to use the functionality associated with the build-in IO 270 signals.
  • Page 12 The command activates or deactivates the two limitations. CIM 260 acknowledges the change with this message: SMSLIMIT: Changed to <ON | OFF> If the limitations are activated and one of the limits is reached, CIM 260 SMSLIMIT <ON | OFF> sends this message:...
  • Page 13 Example: GETCODETEXT 3 GETCODETEXT <event CIM 260 acknowledges the command with this message: code> GETCODETEXT: Text for event code 3: Alarm button pressed (user- defined text) The last parenthesis tells if the text is a user-defined text or if it is the...

  • Page 14: Configuration For A Call-Up Connection

    Modbus port number in very special cases. MODBUSPORT <port number> Default setting: 502. Used for data connection to a Grundfos PC Tool. It will only be necessary to change the default setting of the GENIpro port GENIPROPORT <port number> number in very special cases.
  • Page 15 SETAPN Grundfos.dk2.tdc,502,49152,Grundfos,4321, NORMAL,SERVER,OFF,60 Example 2: SETAPN Grundfos.dk2.tdc,502,49152,,,NORMAL In the second example, some parameters are omitted in the middle and at the end of the parameter string. CIM 260 acknowledges the change with the same message as for the status command "APNSETTINGS".

  • Page 16: Status Commands

    RSSI: 20 RSSI means Received Signal Strength Indicator and is a value from 0 to 31. The actual value is the value read from CIM 260 right now; the average value is the average of the signal during the last hour.
  • Page 17 IMEI: 3570220010091936 IMSI: 770008945629634 IMEI is the equipment identity number, and IMSI is the subscriber identity number. With this status command, you get information about the battery status if CIM 260 is equipped with a battery, optional. Example of reply:...
  • Page 18 Last counter reset. The counters can be reset with the command "RESETCOUNT". With this status command, you get information about the settings of the APN connection. Example of reply: [Installation name] APN: Grundfos.dk2.tdc MODBUSPORT: 502 GENIPROPORT: 49152 USERNAME: - APNSETTINGS PASSWORD: -...

  • Page 19: Control Commands

    5. Control commands 5.1 CIM 260 Command Description Resets SMS and call-up counters. CIM 260 acknowledges the change with this message: RESETCOUNT RESETCOUNT: SMS and call-up counters reset Restarts the data connection. CIM 260 acknowledges the change with this message:...
  • Page 20 Command Description Resets an alarm or a warning in the Grundfos product if ● ● ● ● ● ● ● RESETALARM the fault no longer exists. The product will try to restart. Sets the Grundfos product to remote-controlled ● ●...
  • Page 21 Command Description This command sets the Grundfos product to control ● CONSTLEVEL mode "Constant level". This command sets the Grundfos product to control ● CONSTDIFFPRESS mode "Constant differential pressure". This command sets the Grundfos product to control ● CONSTDIFFTEMP mode "Constant differential temperature".
  • Page 22 8977 RESETALARM Example 2 The number of your mobile phone is in the phone number list of CIM 260, and the access option is "BOTH" (default setting). You can change the setpoint to 4.5 m with this command: SETPOINT 4.5...

  • Page 23: Messages From Cim 260

    [Installation name] Cellular module: Mains supply returned If the battery is worn out or CIM 260 has no battery, CIM 260 will not detect if the power supply to the Grundfos product has been interrupted, as it will loose power supply itself. It can therefore not send a message.

  • Page 24: Additional Sms Functionality Of Ciu 261

    "Multipurpose IO module in CIU 27X", CIU 261 consists of a CIM 260 module and an IO which is the IO 270 hardware manual. 270 multipurpose I/O module mounted in a CIU box.

  • Page 25: Configuration Of Io 270 Signal Names

    If the < > field is left empty, the user name will be An acknowledgment SMS is replied to the phone. cleared and reset to the factory default name. This is shown below for command "AI1SCALE". CIM 260 sends one of these messages: Positive AI1SCALE: Changed to acknowledgement Positive range: <value>...

  • Page 26: Io 270 Operation

    7.4 IO 270 operation IOSTATUS Command to request status. The CIM 260 module replies with information about the status of the IO 270. The measured values are as reported by the IO 270 device. [Installation name] Explanation AI1: 87.1 % [-] if used as DI1, [sensor error] if sensor signal fault (Reg.
  • Page 27 "IOSTATUS" message to the phone from which the SMS command was sent. To change an analog output value to for instance - 5.8 C, write this command: If the argument differs from "ON" or "OFF", CIM 260 sends a negative acknowledgement: ANALOGOUT -5.8 RELAYOUT: Illegal command parameter.

  • Page 28: Self-Triggered Io Event Messages

    IOSMS <ON | OFF> Configuration command for enabling or disabling the transmission of self-triggered IO event messages. Factory setting: OFF. CIM 260 acknowledges the change with this message: IOSMS: changed to <ON | OFF> Changing the status of "IOSMS" is possible whether IO 270 is present or not, as long as the command syntax is correct.
  • Page 29 To get a monitor level of 35 m /h, write: level 50 % Hysteresis SETAI1LEVEL 35 fixed 10 % CIM 260 sends this message to the phone from which the SMS command was sent: SETAI1LEVEL: Analog input 1 level set Send Send Time to <value> <alpha string>...

  • Page 30: Digital Input Naming Relations

    7.6 Digital input naming relations DI contact DI status name Associated Modbus bit (IO270_DigitalInputs) M2M triggered SMS Open DI#LOW Closed DI#HIGH 7.7 Configuration of alarm code texts Alarms and warnings from connected devices, GENIpro device events, are normally sent as STATUS1 messages to all phone numbers in the phone number list.
  • Page 31 If the specified <event code> is unknown to the CIM GETCODETEXT <event code> 260 module. Self-triggered IO event messages Use the GETCODETEXT to read the text machine to machine interfacing descriptions in an event code. Below you find the possible acknowledgements: You can use the self-triggered IO event messages as control/status commands to control or monitor GETCODETEXT: Text for event code <event code>:...
  • Page 32 An acknowledgment SMS is replied to the phone. GETEVENTTEXTS This is shown below for command AI1HIGH. Status command to display the event texts of AI1, AI2, TI1 and DI1 to DI4. Positive AI1HIGH: New event text Below is an example of a reply: acknowledgement defined <name>...

  • Page 33: Overview Of Commands

    8. Overview of commands 8.1 Configuration commands for CIM 260 Default Command Description setting Basic configuration Initialisation of CIM 260 INIT <access code> Enabling/disabling of roaming ROAMING <ON | OFF> Monitoring and control via SMS Change of access option ACCESS <LIST | CODE | BOTH | NONE>...

  • Page 34: Status Commands For Cim 260

    8.2 Status commands for CIM 260 Command Description Basic status Status of basic configuration SMSSETTINGS Phone number list LIST Cellular network signal level SIGNALLEVEL Version information VERSION Battery status BATTERY Cellular network status NETWORK Call-up and SMS statistics SMSCOUNT Reading the user-defined event code text GETCODETEXT <event code>...

  • Page 35: Control Commands For The Product

    8.5 Control commands for the product Command Description Resetting of alarms and warnings RESETALARM Setting to remote control REMOTE Setting to local control LOCAL Setting to operating mode "Start" START or NORMAL Setting to operating mode "Stop" STOP Setting to operating mode "Min." Setting to operating mode "Max."...

  • Page 36: Io 270-Related Configuration Commands

    8.6 IO 270-related configuration commands Configuration Command Description Default setting Naming of analog input 1 (AI1) Empty AI1NAME <text> Naming of analog input 2 (AI2) Empty AI2NAME <text> Naming of temperature input (TI1) Empty TI1NAME <text> Naming of digital input 1 (DI1) Empty DI1NAME <text>...

  • Page 37: Io 270-Related Status Commands

    8.7 IO 270-related status commands Status Command Description Status of values measured by IO 270 IOSTATUS Status of the IO 270 analog signal scaling IOSCALING Displaying monitor values of AI1, AI2 and TI1 GETLEVELS 8.8 IO 270-related control commands Control Command Description Setting the value of analog output AO1...
  • Page 38 Argentina China Hong Kong Bombas GRUNDFOS de Argentina S.A. GRUNDFOS Pumps (Shanghai) Co. Ltd. GRUNDFOS Pumps (Hong Kong) Ltd. Ruta Panamericana km. 37.500 Centro 10F The Hub, No. 33 Suhong Road Unit 1, Ground floor Industrial Garin Minhang District Siu Wai Industrial Centre 1619 Garín Pcia.
  • Page 39 Malaysia Serbia Turkey GRUNDFOS Pumps Sdn. Bhd. Grundfos Srbija d.o.o. GRUNDFOS POMPA San. ve Tic. Ltd. 7 Jalan Peguam U1/25 Omladinskih brigada 90b Sti. Glenmarie Industrial Park 11070 Novi Beograd Gebze Organize Sanayi Bölgesi 40150 Shah Alam Phone: +381 11 2258 740...
