- Page 1 GRUNDFOS INSTRUCTIONS Grundfos Remote Management CIM 270, 271, 272, 273 Installation and operating instructions...
-
Page 2: Table Of Contents

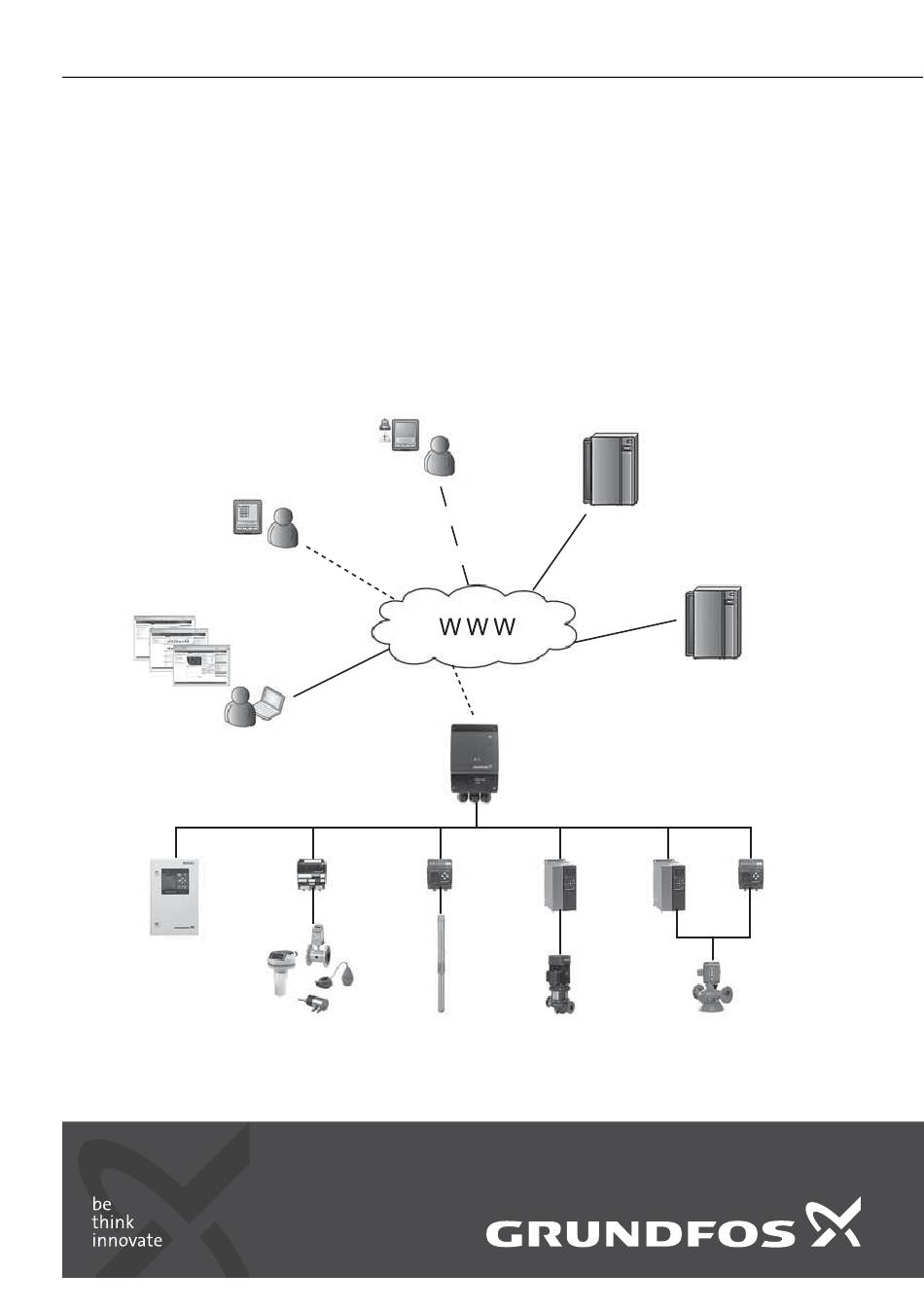

Multi-purpose IO module Identity. GSM LED of the CIM 270 (left) Multi-purpose IO module in CIU IO module 27X unit. GENIbus LED of the CIM 270/500 (right) 21 Fault finding Light-Emitting Diode. Personal Identification Number (SIM cards). SIM card, Subscriber Identity... - Page 3 3. Introduction Grundfos Remote Management is an internet-based remote monitoring, management and reporting system for pump installations. It provides remote access to data from pumps, pump controllers and auxiliary equipment like sensors and meters. Data from pump installations is transferred to a central database and published to subscribers on a secure web server.
- Page 4 The functionality of Grundfos Remote Management is continually improved and enhanced. Information about new features is found online in the system. This manual contains all the information you need for initial setup of your user Account in Grundfos Remote Management.
-
Page 5: Quick Start-Up
Therefore, we recommend you to make a note of the phone number of the SIM card and the IMEI number of the CIM 270. You are now ready to register the CIM 270 on the GRM server and to set up the application you want to have monitored by the GRM system. -
Page 6: Log-On To The Grm
The navigation tree is divided into three levels: An Installation is always added to a Section and consists of a modem and a number of monitored devices, normally a CIM 270 and at least one Pos. Level GENIbus device (Grundfos pump, pump controller or Account IO module). - Page 7 Step 1: Create Installation • Enter the phone number of the SIM card (+ (country prefix) (phone number)). • Enter the IMEI number of the CIM 270 (XXXXXXXXXXXXXXX). • Select the mobile data service provider. • Enter an optional PIN code. This code will replace the default PIN code that was set during initial setup of the CIM 270.
- Page 8 Step 3: Configure and connect Installation Click "Discover devices" to initiate a scan of the network of GENIbus devices connected to the CIM 270. Once the scan is completed, you will see a list of connected devices (pumps, controllers or modules) together with their address in the network.
-
Page 9: Grm Data Communication
Manage Commands: Commands you send from the web user interface when you want to remote-control or -configure a GENIbus device. The CIM 270 is able to send/receive data using both SMS and GPRS traffic. However, there are some built-in rules that govern the priority and type of data connection used. - Page 10 8. Overview Overview Fig. 11 In this view, it is possible to insert images at Account and Section levels, for example maps and system drawings displaying the location and layout of pump installations. Supported formats are *.png, *.jpg and *.gif. We recommend file sizes below 250 kb to optimise the performance of the web server.
-
Page 11: Schedule For Alarm Distribution
9. Schedule for alarm distribution Schedule Fig. 13 One of the key features of GRM is the ability to distribute alarms from monitored pumps and controllers according to a centrally maintained Schedule. The distribution of alarms from the GRM server is based on Week Schedules and alarm teams. It is possible to create any number of Week Schedules in the system. - Page 12 Example of Week Schedule Fig. 16 All GRM users are potential members of an alarm team. Users that have entered a mobile phone number on their Account details are able to receive alarms via SMS. If there is no mobile phone number registered for a user, the e-mail address is the only way of delivering alarms.
-
Page 13: Reports
10. Reports Reports Fig. 17 The system contains a report engine that will automatically generate summation reports. The contents of the reports depend on the application. The reports will typically run on a monthly basis and deliver an output which can be downloaded to a spreadsheet. -
Page 14: Event Log 14 Genibus
11. Event log Event log Fig. 19 The Event log provides a full history of events and interactions related to each monitored device. The Event log provides a record of the following: • alarms • warnings • cleared alarms and warnings •... - Page 15 When a new pump is detected by the CIM interface, an entry for that pump is automatically created under the Service tab. If you enter the product number of the monitored Grundfos pump, you will have direct online access to documentation, including service videos, pump curves, etc.
-
Page 16: Admin, User Administration 16 Gprs
• e-mail. This is the minimum information required to create a new user in Grundfos Remote Management. The field "Mobile" is optional. This number will be used to send SMS alarms to the user, if registered as an alarm recipient on a Schedule. -
Page 17: Alarms
14.2 Power supply failure, operating on An operator is able to remote-control installations, battery for example perform the following: If the CIM 270 has a backup battery fitted, it is able • remote resetting to report when it switches to battery operation. Once •... -
Page 18: Multi-Purpose Io Module 18 Imei
15. Multi-purpose IO module The multi-purpose IO module in the CIU 27X/50X is designed especially for use in Grundfos Remote Management. Pumps without GENIbus connection are connected and monitored via the IO module. When a digital input is specified to monitor a pump during configuration of the IO module, a pump log will be created under the Service tab. - Page 19 On the basis of the above definitions, a graphical user interface is generated complete with the option of seeing trend data for the monitored I/O devices. Example of graphical display of data from monitored sensors Fig. 26 GENIbus I/O modules are available from Grundfos if you should need additional I/O functionality.
-
Page 20: Gsm Led Of The Cim 270 (Left)
16. GSM LED of the CIM 270 (left) LED status Location Description • No SIM card in the CIM 270. • The PIN code of the SIM card is not known by the CIM 270. No GSM network. • No GSM coverage. -
Page 21: Genibus Led Of The Cim 270/500 (Right)
