Setting Communication System - Pivot OB MONITOR User Manual

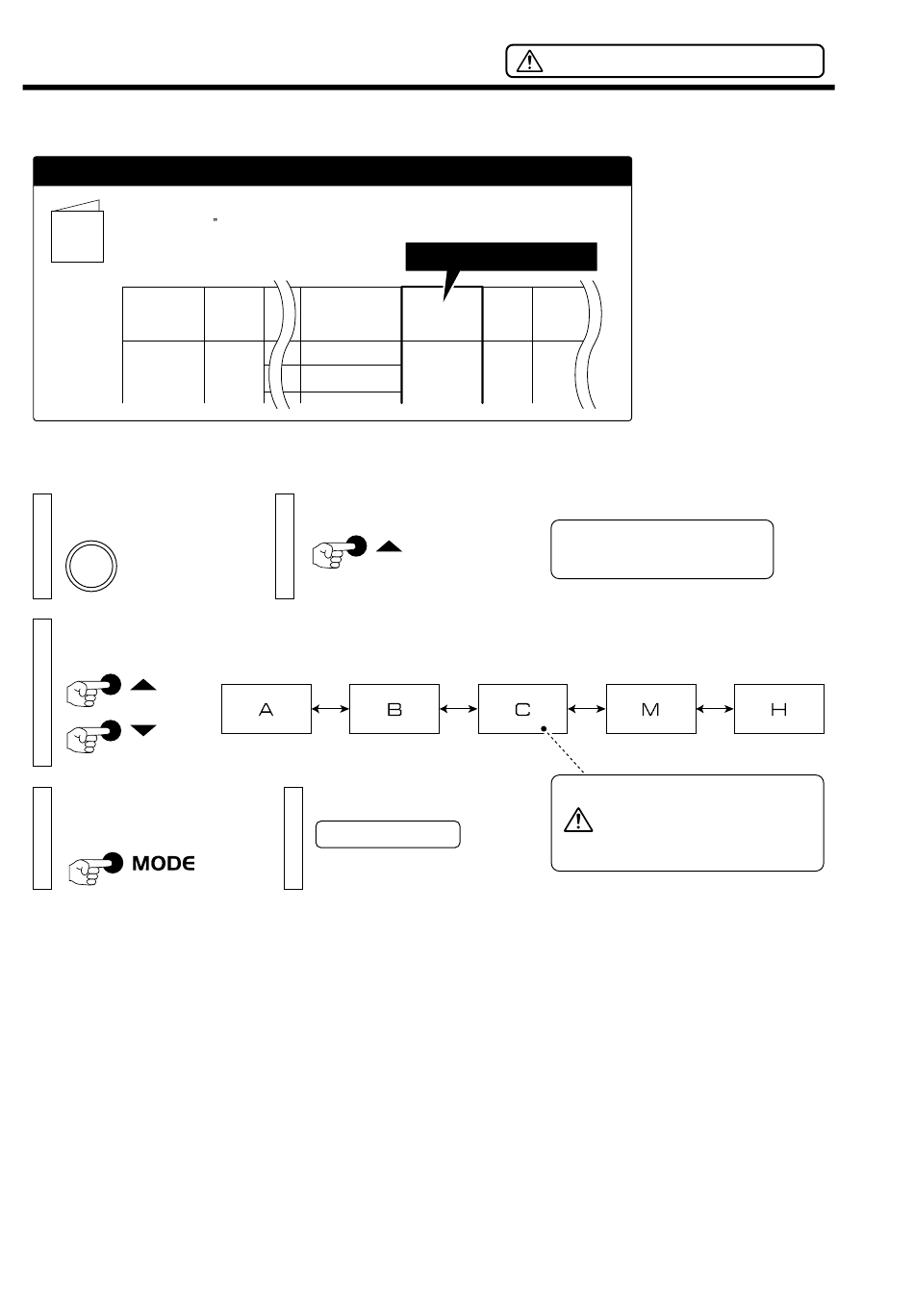

Setting Communication System

【Before setting】
Find proper setting on Compatibility List
Check the Communication-system of installing car on included Compatibility
list. (" 通信方式 means Communication-system on the chart.)
Compat- Compat-
ibility List ibility List
e.g.) TOYOTA Isis (from Oct. 2009)
TOYOTA
車 名
アイシス
【Set】
1
Engine Start
(READY mode in Hybrid cars)
ENGINE
START START
STOP
3
The setting items will change with each pressing UP / DOWN switch.
Select proper Communication-system.
UP
DOWN
4
Confirm the setting item.
(Press the MODE switch, or
automatically fixed after 5 seconds.)
Note that the setting of Communication-system is stored. No need re-setting when you unplug the OBD connector
or replace the battery.
4
年 式 エンジン型式
H21.9 〜 3ZR-FAE
2ZR-FAE
2
Press the UP switch for 5 seconds
Press for 5 seconds
5
Setting completed
Real-time display
Must be set after mounting product
Check this column
通信方式
回転 水温
A
○ ○
Note: You can move to setting even
UP
if the monitor is during display or
off at this time.
Please make sure to set proper
setting. If the car which needs
t o b e s e t C o m m u n i c a t i o n -
system C set to others, it will
cause the battery goes flat.
