Features

Compact Easy-to-read Next-generation OBD Multi-Monitor
■ Compact and Easy-to-read
Our special scale design coupled with the high contrast and wider field of view offered by
organic EL brings you an easy-to-read compact multi monitor that won't interfere with the
standard built-in meters or look like it was just added onto the dashboard.
■ Single-display and Multi-display
The display can be easily switched between our specially designed analog/digital single display
type and a digital triple display type to meet your needs.
■ Easy installation
Simply connect to the diagnostic monitoring connector.
■ Switch Display Areas
The single display can be also be easily switched to show an analog display of boost or vacuum
and the easy-to-read numerical area can be changed to view such values as motor and engine
rpm for hybrid cars.
■ Self-Adjusting Brightness
The display will automatically adjust brightness to fit the ambient light conditions; making sure it
is not blinding at night. Also, if the car interior becomes overheated, the display brightness will
self adjust to lessen a decrease in performance.

Part Names of Monitor

1
MODE Switch
2
UP Switch
3
DOWN Switch
4
Display
5
Light sensor

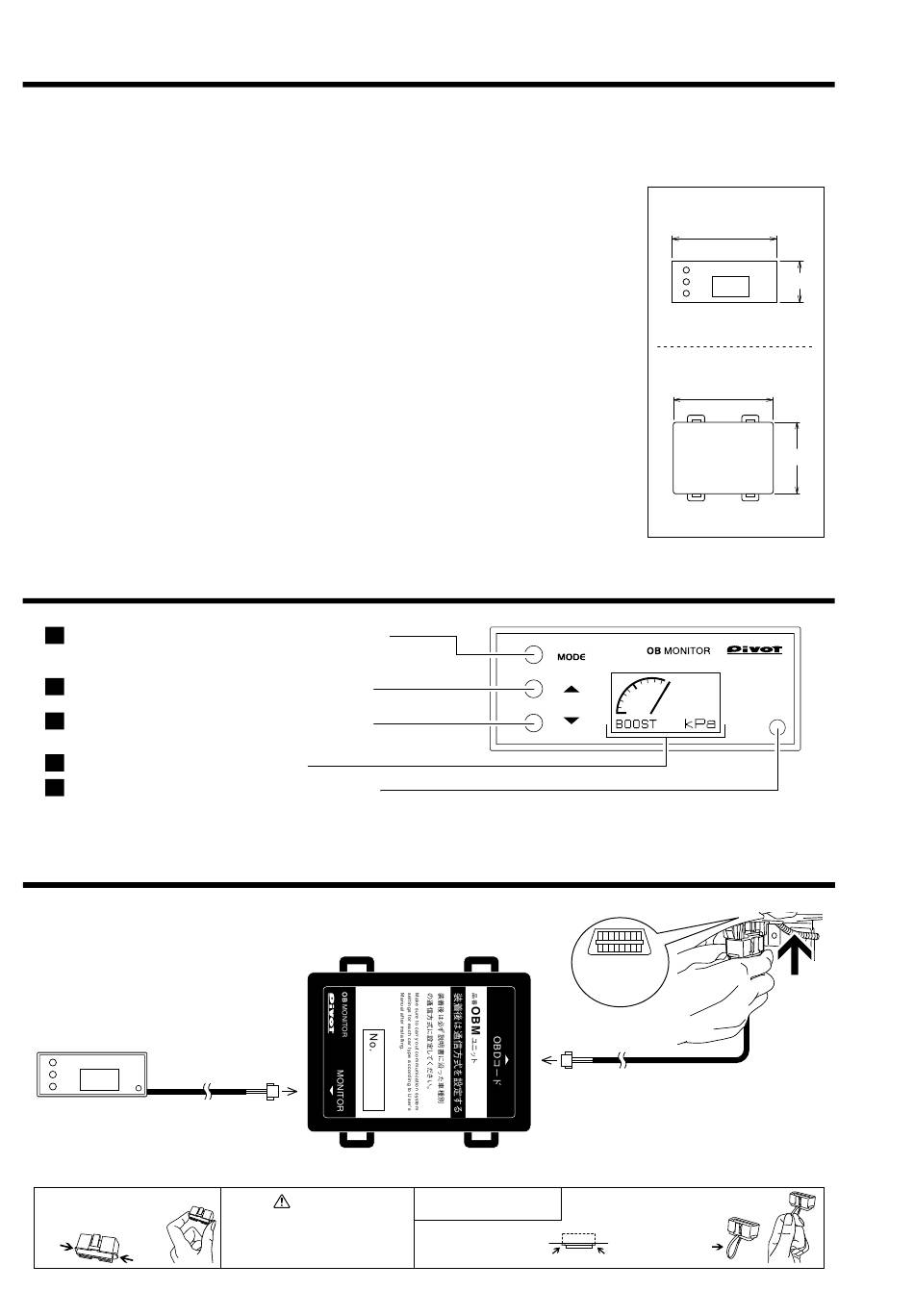

Connecting The Connectors

① Insert Connectors of the Monitor and the OBD Cable to the Unit.
② Insert the OBD Connector to the Diagnostic Monitoring Connector.
See included [Compatibility List] to check the
p o s i t i o n o f t h e D i a g n o s t i c M o n i t o r i n g
Connector.
(1.5 m)
Monitor
【Reference】 Notes about using the OBD Connector
Make sure to grip the dis-
tended portions when pull-
ing it out or inserting it.
2
Switch Single and Multi-display.
(Long press = Display and reset of Peak value)
Use to change display items.
Use to change display items.
Display each data.
Sense the ambient brightness.
①
Connector
CAUTION
Do not pull on the wires when
trying to remove the connector;
the wires may become discon-
nected.
①
Connector
Unit
If you unable to get a grip
on the distended portions.
If you unable to get a
grip on the distended
portions.
Size
[Unit： mm]
Monitor
68
14
Depth
Unit
70
22
Depth
1 2 8
Diagnostic
Monitoring
Connector
(0.5 m)
OBD Cable
In suc h c ase, pull
out the c onne c tor
b y p u l l i n g o n t h e
end of the zip tie.
27
50
②
