Pivot DXB-B User Manual

One Type Analog Display coupled with Multi-Digital Display.
USER'S MANUAL
Thank you for purchasing this PIVOT product.
Please read this manual carefully and keep it for future
reference.
● If this produc t is given to
another user, make sure to
include this User's Manual.
Contents
Contents / WARNING / CAUTION ......... 1
Features .......................................... 2
Part Names ....................................... 2
Displays of each Products .................. 2
Connecting The Wires ..................... 2 ~3
Installing The Product ........................ 3
Basic Operation ................................. 4
Switching The Display ........................ 4
Troubleshooting ................................. 4
1. The display will not be proper if the ECU being used is not the standard one or if a sub-computer
is being used, even in compatible car models.
2.Cannot be used in combination with other company's products that use Diagnostic Monitoring
Connectors.
WARNING
●Do not work in areas where there is excessive
exhaust.
Due to vehicle exhaust emission poisoning or fire may
result in a damage to humans.
●Do not crush the cable.
Please be careful that the cable does not get crushed by
the seat rail or car door steel plate, nor cut by any sharp
steel plate as this may cause a poor connection or an
electric short leading to fire or other danger.
●Do not operate while driving.
Operating or checking the display during driving may cause
an accident; please use with the utmost consideration for
safety.
●Please securely fasten the product and be sure
to store bundle away all wires with tape, etc...
It is very dangerous to pull tangled wires by force or allow
tangled wires to interfere with driving.
＋
Product
Please check the contents of the package
Meter
Allen
Wrench
Improper use or disregard of
these warnings may result in
the injury or death of people.
Unit Gauge
[50 × 22 × 70(D)mm] Cable
Double-sided Cushion
Tape Tape
Improper use or disregard of these warnings
CAUTION
may c ause injur y to per sons, d amag e the
product and other things.
●This product is for DC12V cars;
Installation cannot be carried out on cars with other voltage batteries.
●Just after installation do not exert any strong force on the product.
When double-sided tape is used for an installation be warned that when hot the
tape temporarily losses adhesiveness.
●Do Not Use Chemical Cleansers.
If the unit gets dirty please wipe with a soft cloth to remove any dirt. Do not use
chemical cleansers such as thinner, benzene, or alcohol.
●Do not install the product in any place subject to high tempera-
ture or any place where water may be splashed.
●Make sure to replace all screws and parts to their original place.
●Do not install the product in a place where it will cause distrac-
tion.
●Do not, in any manner, process, take apart, or make changes to
this product.
(DXB-B As of February 2021 No.3)

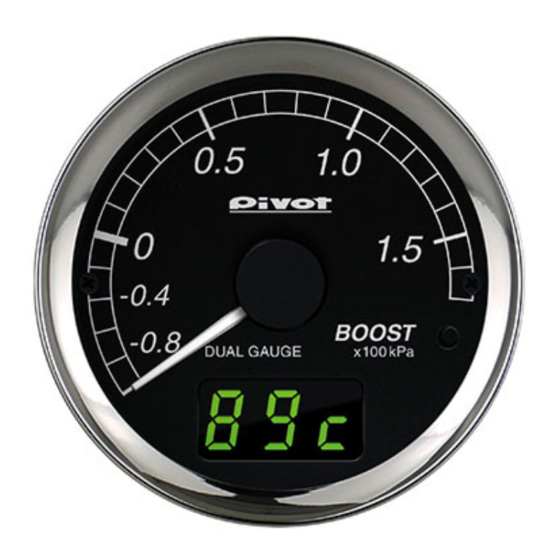

DUAL GAUGE
Easy Installation
DXB-B
BOOST＋DIGITAL
Power Cable with Adjustable
OBD Connector Stand
and fuse 3A
Zip Ties
(Large) × 2 User's Manual
(Small) × 5 (This Book)
1
