Pivot Turbo Timer User Manual

USER'S MANUAL
Thank you for purchasing this PIVOT product.
Please read this manual carefully before installation and use.
Please keep this manual for future reference.
● If this produc t is given to
another user, make sure to
include this User' s Manual.
Contents
Contents/WARNING/CAUTION ............ 1
Features .......................................... 2
Part Names ....................................... 2
Connecting The Wires ........................ 2
Fastening The Product ........................ 3
Settings............................................. 3
Explanation Of Function Settings... 3

Troubleshooting ................................. 4

●Please be sure to check that this product operates properly before fastening it in the car or drilling
holes for installation.
●This product can not be installed in car models which come with a maker-installed push start
system.
●This product is designed solely for 12V models and cannot be installed in 24V models.
●The following devices may not work properly while the Turbo Timer is in operation. If this occurs
please use the devices after the Turbo Timer has completed operation.
・Keyless Entry System or Wireless Door Lock System
・Models equipped with a Security System (Security Alarm System)
WARNING
●Do not use the Turbo Timer in the following places or under the
following conditions.
・In places with poor ventilation ・Near flammable items
・When people or animals are in the car
・When the parking brake is not fully engaged
・When an AT model car is a gear other than P (Parking) or an MT model is in
other than N (Neutral)
●Do not wire the cables in places susceptible to shorts, such as
below.
・Near moving parts of the brake or steering wheel
・Near sharp metal parts that may sever the cable
●Please be sure to remove the minus (-) battery cable terminal
from the battery before wiring.
●Do not run the car while the Turbo Timer is in operation.
●Do not use if small children may be lef t alone in car while
parked.
＋
Product
Please check the contents of the package
Unit
[86×21×55(D)mm]
4
〜
Improper use or disregard of these warnings
may result in the injury or death of people.

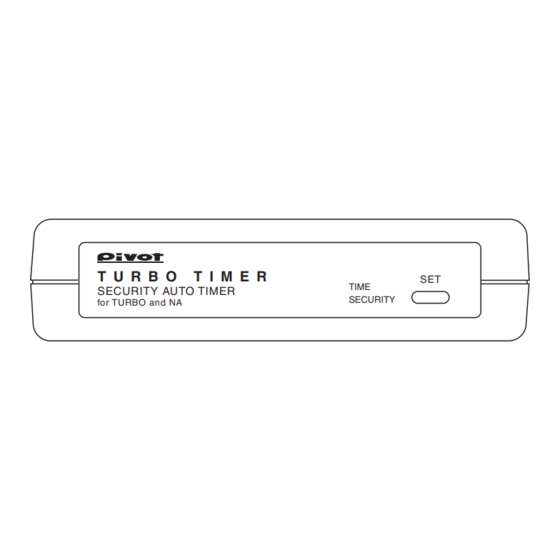

SECURITY AUTO TIMER
T U R B O
SECURITY AUTO TIMER
for TURBO and NA
Cut Connectors Zip Ties
Large ×3 ×2
Small ×1
CAUTION
●When installing this product, we recommend that if technical
knowledge becomes necessary please consult your dealer.
● T h i s p r o d u c t i s n o t wate r p r o o f; d o n o t i n s t a l l t o p l a c e s
susceptible to splashing water.
● Make sure to securely insulate all direct connection with
tape or other means.
●In models equipped with an Auto-Light system, make sure to
use only after turning Auto-Light to OFF.
If the setting is at AUTO, the lights will remain ON even after
the engine has been turned off. This may cause the battery
to go dead.
● D o n o t , i n a n y m a n n e r, p r o c e s s , t a k e a p a r t , o r m a k e
changes to this product.
●Do not use electrotap.
(SAT As of August, 2012 No.2)
T I M E R
SET
TIME
SECURITY
Double-sided User's Manual
Tape (This Book)
Improper use or disregard of
these warnings may cause
injury to persons, damage the
product and/or other things.
1
