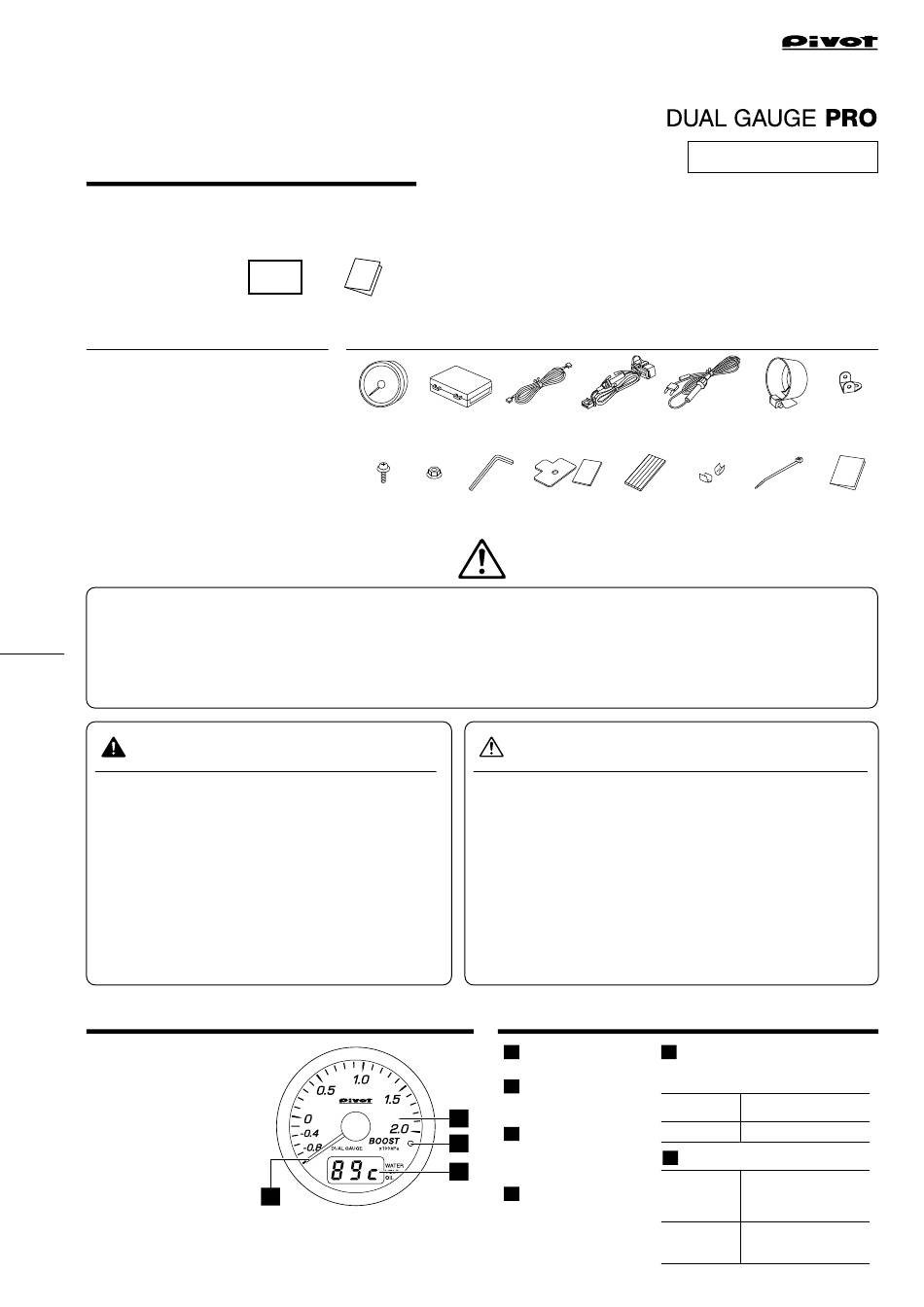

Pivot Dual Gauge Pro DPB-E User Manual

USER'S MANUAL
Thank you for purchasing this PIVOT product.
Please read this manual carefully and keep it for future
reference.
● If this produc t is given to
Product
another user, make sure to
include this User's Manual.
Contents
Contents / WARNING / CAUTION ............1
Features .............................................1
Part Names and Displays .....................1
Connecting The Wires ...........................2
Installing The Product ..................... 2 ~3
(Connecting The Wires by Using Sensor)
Basic Operation .................................... 4
Switching The Display ........................... 4
Illumination color settings ..................... 4
Illumination brightness settings............... 4
Troubleshooting .................................... 4
1. The display will not be proper if the ECU being used is not the standard one or if a sub-computer is being used, even
in compatible car models. (except connecting with sensor)
2. When installing PIVOT Sub Computer(POWER DRIVE), need to use separately sold Boost Sensor(DP-BS) to display
Boost data.
3. Cannot be used in combination with other company's products that use Diagnostic Monitoring Connectors.
4. For details about using combinations of PIVOT OBD products, see here.
Improper use or disregard of these warnings
WARNING
may result in the injury or death of people.
●Do not work in areas where there is excessive exhaust.
Due to vehicle exhaust emission poisoning or fire may result in a damage to
humans.
●Do not crush the cable.
Please be careful that the cable does not get crushed by the seat rail or car
door steel plate, nor cut by any sharp steel plate as this may cause a poor
connection or an electric short leading to fire or other danger.
●Do not operate while driving.
Operating or checking the display during driving may cause an accident;
please use with the utmost consideration for safety.
●Please securely fasten the product to a stable place and be
sure to store bundle away all wires with tape, etc...
It is very dangerous to pull tangled wires by force or allow tangled wires to
interfere with driving.

Features

A d o p t i o n o f s t a r t d e t e c t o r
circuitry makes installing easier
with OBD connection and com-
patible with a wide variety of
model cars by the specialized
Euro -model communication.
T h e illum inat i o n c an sw i tc h
between white and BMW-style
orange.
●
BMW and some models of MINI display around -15 to -20 kPa when reading
negative pressure.
＋
Please check the contents of the package
Meter
......3
Screw Nut
2
Designed For Euro car like as BMW·VW
Gauge OBD Cable
Unit
Cable with Fuse 3A
Allen Double-sided Cushion
Wrench Tape
⇒ http://pivotjp.com/obd/
Improper use or disregard of these warnings may cause
CAUTION
injury to persons, damage the product and other things.
●This product is for DC12V cars;
Installation cannot be carried out on cars with other voltage batteries.
●Just after installation do not exert any strong force on the product.
When double-sided tape is used for an installation be warned that when hot the tape
temporarily losses adhesiveness.
●Do Not Use Chemical Cleansers.
If the unit gets dirty please wipe with a soft cloth to remove any dirt. Do not use chemical
cleansers such as thinner, benzene, or alcohol.
●Do not install the product in any place subject to high temperature or
any place where water may be splashed.
●Make sure to replace all screws and parts to their original place.
●Do not install the product in a place where it will cause distraction.
●Do not, in any manner, process, take apart, or make changes to this
product.

Part Names and Displays

1
Analog Display
Display Boost data.
2
Needle
Shows the current values
1
and peak value.
3
Switch
3
Use to change modes of
digital display and
4
reset the peak value.
4
Digital Display
Display switches
between types.
(DPB-E As of September, 2020 No.2)
Easy Installation
DPB-E
BOOST＋DIGITAL
IGN Cable Meter
with Fuse 3A Holder
Cut Zip Ties
Connectors (Large) × 2
Tape
× 2 (Small) × 5
5
Illumination
(night illumination)
Normally illuminated when on display
and Three-step dimming.
Analog Display Dial and Needle:
White or Orange
Digital Display Red
6
Display Range
[ -100 〜 154 kPa]
Analog Display Boost
(OBD data)
[ -100 〜 200 kPa]
※
Boost
(Sensor data)
Water Temp [ -35 〜 150 °C ]
Digital Display
Voltage [ 8 〜 18V]
Oil Temp [ -35 〜 150 °C ]
※
※ Displayed with Sensor sold separately.
A-pillar
Stand
User's Manual
(This Book)
(switchable)
1
