- Page 1 Model 3116 Double-Ridged Waveguide Horn MANUAL © EMC TEST SYSTEMS, L.P. – MARCH 2002 REV E – PN 399040...
- Page 2 MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN EMC Test Systems, L.P. reserves the right to make changes to any product described herein in order to improve function, design or for any other reason. Nothing contained herein shall constitute EMC Test Systems, L.P. assuming any liability whatsoever arising out of the application or use of any product or circuit described herein.
-
Page 3: Table Of Contents
MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN Table of Contents INTRODUCTION..........................1 MOUNTING INSTRUCTIONS......................2 APPLICATION............................4 TYPICAL DATA............................ 5 SPECIFICATIONS ..........................7 MAINTENANCE ........................... 8 WARRANTY STATEMENT......................... 9 © EMC TEST SYSTEMS, L.P. – MARCH 2002 REV E – PN 399040... - Page 4 MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN © EMC TEST SYSTEMS, L.P. – MARCH 2002 REV E – PN 399040...
-
Page 5: Introduction

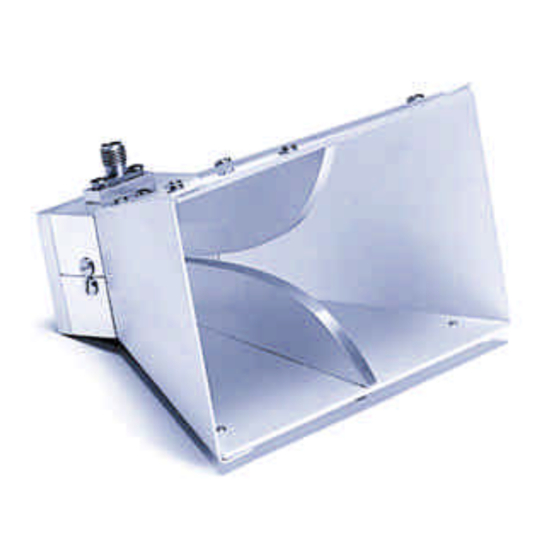

Ridged Waveguide Horn Antenna is a linearly polarized broadband antenna covering the frequency range of 18 GHz up to 40 GHz. The Model 3116 was designed and built specifically for emissions and susceptibility testing. The antenna is precision machined from aluminum. A 50 V type K female connector is mounted on the base block of the antenna for increased performance at high frequencies. -
Page 6: Mounting Instructions
Mounting Instructions MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN MOUNTING INSTRUCTIONS The Model 3116 can easily be mounted on a variety of tripods including the ETS-Lindgren Model 4-TR. The Model 3116 consists of the following: 1 ea Double Ridged Waveguide Horn 1 ea Mounting Bracket drilled to accept ETS-Lindgren or other tripod mount with ¼-20 threads... - Page 7 Thumbscrews Mounting Bracket Type K Connector NOTE This illustration shows the Model 3116 vertically polarized for the purpose of introducing the primary mounting components. Typically the horn will be mounted in the horizontally polarized position for testing.
-
Page 8: Application
Application MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN APPLICATION Each Model 3116 Double-Ridged Waveguide Antenna is individually calibrated during the manufacturing process. Apparent gain at 1 meter from the end of the antenna is determined and included in this manual. This factor should be used in specification compliance testing to convert receiver reading (dBuV) to field intensity units (dBuV/M). -
Page 9: Typical Data
MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN Typical Data TYPICAL DATA Frequency (GHz) Model 3116 Antenna Factor Frequency (GHz) Model 3116 Gain © EMC TEST SYSTEMS, L.P. – MARCH 2002 REV E – PN 399040... - Page 10 0.01 1E-3 Frequency (GHz) Model 3116 Forward Power at 1 meter 1V/m to 10 V/m Maximum Continuous Power for the Model 3116 is 50 Watts The Maximum Peak Power Rating for this model is 70 Watts © EMC TEST SYSTEMS, L.P. – MARCH 2002...
-
Page 11: Specifications
MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN Specifications SPECIFICATIONS Electrical Frequency Range 18-40 GHz VSWR Ratio (AVG) <1.6:1 Maximum Continuous Power 50 Watts Peak Power 70 Watts Impedance 50 V Connector Type K female Front to Back Ratio 20 dB Cross Polarization... -
Page 12: Maintenance
Maintenance MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN MAINTENANCE To ensure reliable and repeatable long-term performance, annual recalibration of your antenna by ETS-Lindgren’s experienced technicians is recommended. Our staff can recalibrate almost any type or brand of antenna. Please call to receive a Service Order Number prior to sending an antenna to us for calibration. -
Page 13: Warranty Statement
MODEL 3116 DOUBLE-RIDGED WAVEGUIDE HORN Warranty Statement WARRANTY STATEMENT EMC Test Systems, L.P., hereinafter referred to as the Seller, warrants that standard EMCO products are free from defect in materials and workmanship for a period of two (2) years from date of shipment.
