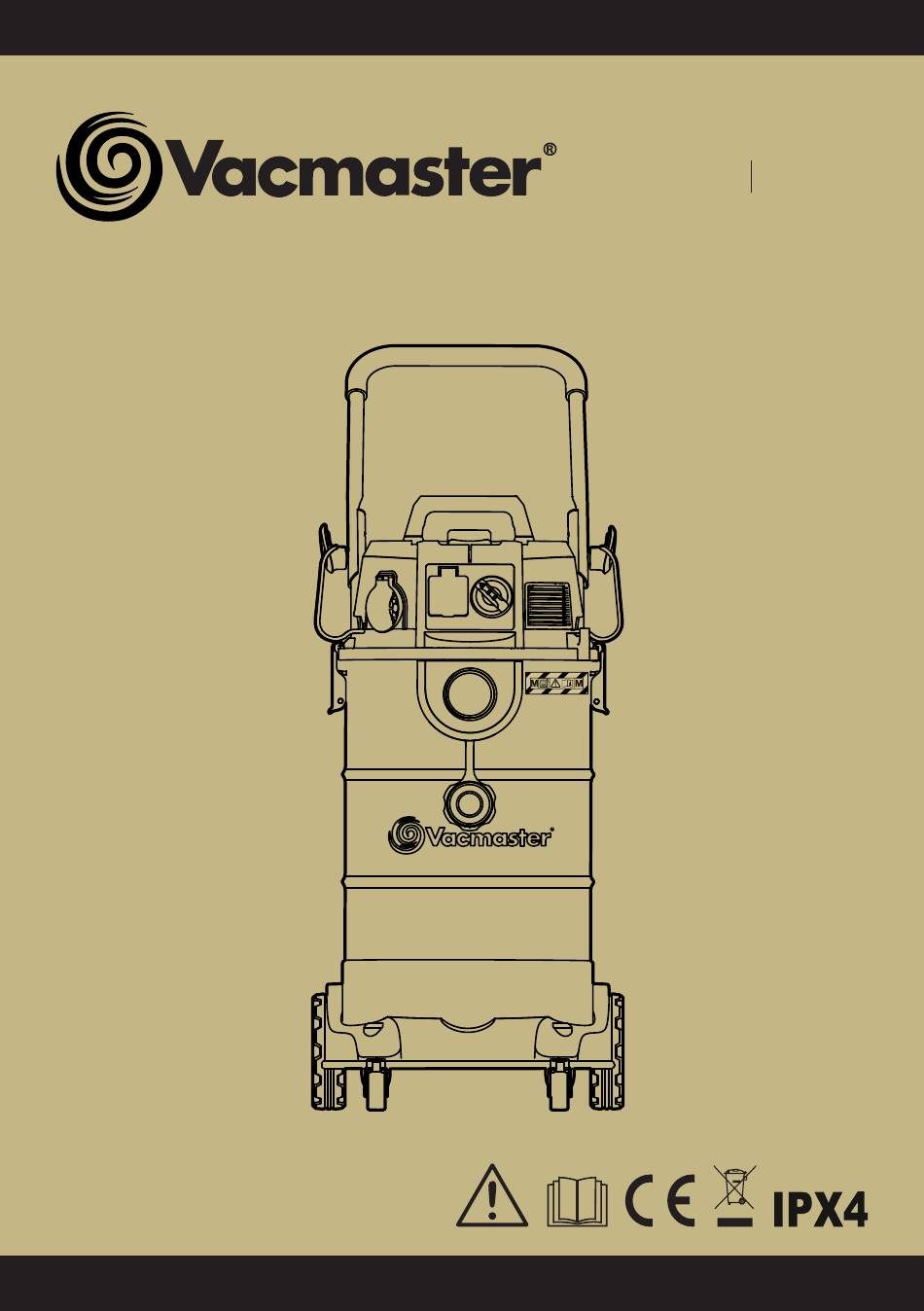

- Page 1 38L 1500W VDK1538SWC ORIGINAL INSTRUCTIONS...
-
Page 6: Table Of Contents
Technical Data ..........................17 Recycling and Disposal ........................17 Plug/Fuse Replacement (UK & Ireland Only ) ................18 ® Thank you for purchasing this Vacmaster wet and dry vacuum cleaner. Feel confident that with ® Vacmaster you are obtaining a high quality product engineered for optimal performance. This vacuum cleaner is suitable for use with both liquids and dry materials. -
Page 7: Safety Information
SAFETY INFORMATION READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses. Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from improper use. - Page 8 • Clear the working area of any items or possessions that you do not wish to be vacuumed before operation. • Keep cord away from heated surfaces. • Do not expose to rain. Store indoors. • Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
- Page 9 specified in the instructions. • If foam or liquid escapes from the machine, switch off immediately. • Check the float valve regularly to ensure it is moving freely and examine it for signs of damage. • Precautions should be taken when changing attachments. •...
-
Page 10: Unpacking And Checking Carton Contents
Cross section Cable length < 16 A < 25 A up to 20 m 1.5 mm 2.5 mm 20 to 50 m 2.5 mm 4.0 mm WARNING: When carrying out service or repair operations, all contaminated items which cannot be satisfactorily cleaned are to be disposed of;... -
Page 11: Assembly
ASSEMBLY NOTE: A Phillips screwdriver is required. 1. Remove all the contents from inside of the vacuum cleaner container. 2. Attach the carry handle into the slots located on the top of the power head. Secure them with supplied screws (Fig. 1). 3. -
Page 12: Operation
holder. Pry the attachment up from underneath (Fig. 10 & 11). 3) Insert the new attachments into the holder applying downwards pressure (Fig. 11). 4) The attachments can be used in three combinations (Fig. 12): Brush and Squeegee Combination: For use with mixture of wet or dry liquids. Dual Brush Combination: For use with dry materials or carpeted floor surfaces. - Page 13 filter cleaning button located on top of the power head will admit a flashing red LED. If the suction performance diminishes, you can improve the suction power with the help of the filter cleaning system (Fig. 15). 1) Position the end of the suction hose nozzle into the channel located within the filter cleaner button.
- Page 14 Depending on how hazardous the dust is, the cleaner must be fitted with appropriate filters and collection means. Cartridge Filter + Dusts with OEL Cartridge Filter Order Disposable Bag values ≥0.1 mg/ No.: 951557 m3 (observe any Disposable Bag Order Cartridge Filter + Dust additional national No.: 951558...
-
Page 15: Maintenance
MAINTENANCE WARNING: REMOVE THE POWER CORD FROM THE POWER SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE. WARNING: ALWAYS USE A P2-RESPIRATOR WHEN REMOVING THE CARTRIDGE FILTER AFTER VACUUMING HAZARDOUS DUSTS. 1) Keep all safety devices, air vents and the motor housing free of dirt and dust. Use a soft, dry brush to clean the equipment regularly. -
Page 16: Troubleshooting
TROUBLESHOOTING. Cleaning Performance Vacmaster vacuum cleaners are tested for endurance. If your motor is operating, then the most likely cause for a loss in suction is a blockage or an opening in the vacuum. To maintain a high cleaning performance from your machine, it is important to replace or clean cartridge filters as necessary. -
Page 17: Technical Data
TECHNICAL DATA Model Number VDK1538SWC Motor 220-240V~ 50Hz Power Input 1500W 1490W for BS Socket Max. Power Consumption Of the Power Tool Take-Off Socket Outlet 2180W for VDE Socket Tank Volume Net Weight 14.0kg Max. Vacuum Pressure 25kPa / 250hPa Max. -
Page 18: Plug/Fuse Replacement (Uk & Ireland Only)
PLUG/FUSE REPLACEMENT (UK & IRELAND ONLY) This product is fitted with a non-rewirable plug. If the plug has to be changed, refer to the picture below. 6 m m GREEN& YELLOW GREEN BROWN BLUE BLACK CORD GRIP... - Page 21 ② ①...
- Page 24 VDK1538SWC Suzhou Cleva Electric Appliance Co., Ltd. No.8 Ting Rong Street Suzhou Industrial Park, Suzhou Jiangsu Province, China www.cleva-europe.com Made in P.R.C...
