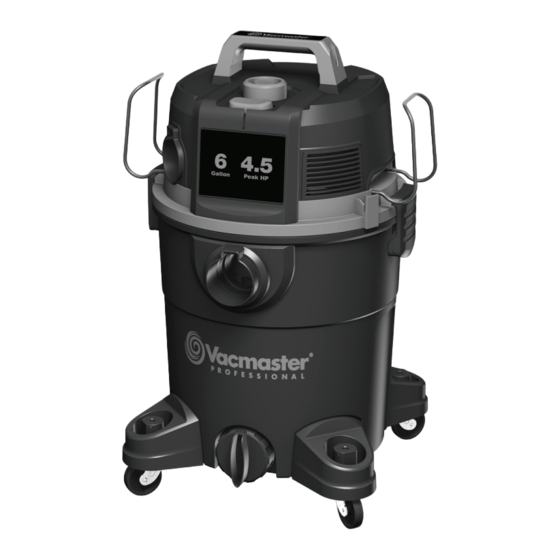

Wet/Dry Vacuum
Operator's Manual
6 Gallon
Model No.
VDK611PF 0201
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
Replacement Filters &
Suzhou Cleva Electric Appliance Co., Ltd.
Accessories available at:
NO.8 Ting Rong Street 215122 Suzhou, China
Vacmaster.com

Advertisement

Table of Contents
loading

Related Manuals for Vacmaster VDK611PF 0201

Summary of Contents for Vacmaster VDK611PF 0201

  • Page 1 Wet/Dry Vacuum Operator’s Manual 6 Gallon Model No. VDK611PF 0201 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Replacement Filters & Suzhou Cleva Electric Appliance Co., Ltd. Accessories available at: NO.8 Ting Rong Street 215122 Suzhou, China...

  • Page 2: Table Of Contents

    FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY ® We take pride in producing a high quality, durable product. This Vacmaster product carries a limited three (3) year warranty against defects in workmanship and materials from date of purchase under normal household use.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM. Read and understand this operator’s manual and all labels on the vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works.

  • Page 4: Double Insulation Instructions

    When using as blower: • Direct air discharge only at work area. • Do not use Wet/Dry Vacuum as a sprayer. • Do not direct air at bystanders. • Keep children away when blowing. • Wear safety goggles. SAVE THESE INSTRUCTIONS For Household Use Only DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system.

  • Page 5: Extension Cords

    EXTENSION CORDS When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner.

  • Page 6: Unpacking & Checking Carton Contents

    UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List: Description..…..……….…..Qty. Vacuum Assembly.…..….…..Handle......…..………... Hose....…..….…...

  • Page 7: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS A Philips head screw driver is required. WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN. UNPACKING YOUR WET/DRY VACUUM &...
  • Page 8 7. Insert the handle into the slots located on the top of the power head and secure it with the screws provided. Do not over-tighten screws (Fig. 10). 8. Your vacuum comes ready for dry vacuum cleaning. If the cartridge filter is not installed, refer to page 14 for installation instructions (Fig.

  • Page 9: Dry Vacuum Operation

    DRY VACUUM OPERATION DRY VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
  • Page 10 4. Optional: For improved dust filtration, fit the dust collection bag flange onto the inlet port, taking care not to damage the bag (Fig. 5). 5. Place the power head back on the collection tank, and secure it in place using the latches and snap into place (Fig.

  • Page 11: Liquid Vacuum Operation

    LIQUID VACUUM OPERATION LIQUID VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

  • Page 12: Blower Operation

    IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the collection tank reaches its maximum capacity.

  • Page 13: Maintenance

    MAINTENANCE EMPTYING THE COLLECTION TANK WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWER HEAD FROM COLLECTION TANK. 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Press down on the hose clip and disconnect the hose from the vacuum (Fig. 2). 3.

  • Page 14: Installing & Cleaning Cartridge Filter

    INSTALLING & CLEANING CARTRIDGE FILTER INSTALLING CARTRIDGE FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in an upside down position. 3. Install the cartridge filter over the filter cage making sure the cage is completely covered with the flat end of the filter towards the power head.

  • Page 15: Installing & Cleaning Foam Wet Filter

    INSTALLING & CLEANING FOAM WET FILTER INSTALLING FOAM WET FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in an upside down position. Follow instructions to remove the cartridge filter on page 14. 3.

  • Page 16: Troubleshooting

    TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION Check the power supply, cord, No power supply. breakers and fuses. Unplug and check the power Faulty power cord. cord. If damaged, have it The wet/dry vacuum will not repaired by a professional.

  • Page 17: Exploded View

    EXPLODED VIEW...

  • Page 18: Parts List

    PARTS LIST Part Drawing Number Description Quantity 551620101 Handle Assembly 551510102 Hose Storage Rack Power Head Assembly 551254103 Cartridge Filter 551437107 Filter Retainer 551416106 Float 551436113 Filter Cage 551620103 Latch Assembly Collection Tank 551620105 Vacuum Port Assembly 551002110 Drain Cap Assembly 551058106 Caster Foot Assembly 551620106...
