Summary of Contents for Vacmaster VDK1430SFC

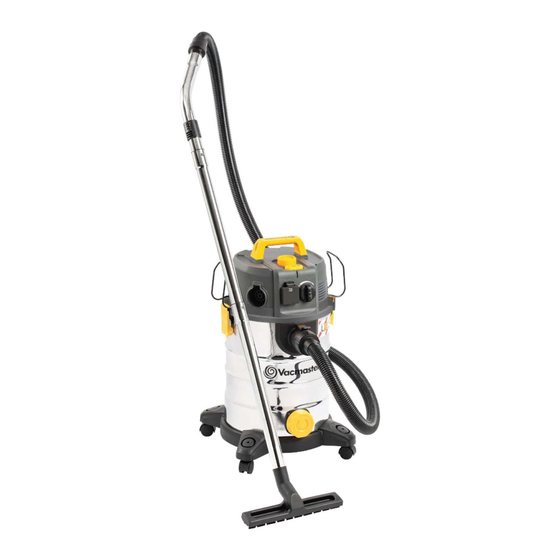

- Page 1 30L 1400W VDK1430SFC Original Instructions...
- Page 5 14 15 16...
-
Page 6: Table Of Contents
Technical Data…………..………....................Recycling and Disposal…………..………................... Plug/Fuse Replacement (UK & Ireland Only )................. ® Thank you for purchasing this Vacmaster wet and dry vacuum cleaner. Feel confident that with ® Vacmaster you are obtaining a high quality product engineered for optimal performance. This vacuum cleaner is suitable for use with both liquids and dry materials. -
Page 7: Safety Information
SAFETY INFORMATION READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses. Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from improper use. - Page 8 • Clear the working area of any items or possessions that you do not wish to be vacuumed before operation. • Keep cord away from heated surfaces. • Do not expose to rain. Store indoors. • Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
- Page 9 • For additional protection: It is recommended that this vacuum cleaner can be used in conjunction with residual current device (RCD) with a rated residual current of 30mA or less. • Only use the socket outlet on the machine for purposes specified in the instructions.
-
Page 10: Unpacking And Checking Carton Contents
Cross section Cable length < 16 A < 25 A up to 20 m 1.5 mm 2.5 mm 20 to 50 m 2.5 mm 4.0 mm WARNING: When carrying out service or repair operations, all contaminated items which cannot be satisfactorily cleaned are to be disposed of;... -
Page 11: Assembly
ASSEMBLY NOTE: A Phillips screwdriver is required. 1. Remove all the contents from inside of the vacuum cleaner container. 2. Attach the carry handle into the slots located on the top of the power head (Fig. 1). 3. Turn the container upside down and insert the feet with casters into the slots and apply pressure until they click into place. - Page 12 2. Power Tool Take-Off Operation (Fig. 9) WARNING: Always check the maximum wattage compatibility of the power tool take off socket against the desired power tool before connecting to prevent overloading. 1) Connect the power cable of your power tool to the power take-off socket. 2) If applicable, connect the vacuum suction hose to the dust extractor connector on your tool with the supplied adaptor.
-
Page 13: Blower Operation
2) Optionally, fully fit the dust bag flange onto the inlet stub. The vacuum cleaner can we be used with or without dust bags. IMPORTANT: Check the filter regularly for optimal performance. An old or blocked filter will reduce suction performance. For Wet Vacuuming: 1) To prepare your vacuum cleaner for wet vacuuming, release the retainer lock and remove the dry use cartridge filter. -
Page 14: Maintenance
MAINTENANCE WARNING: REMOVE THE POWER CORD FROM THE POWER SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE. 1) Keep all safety devices, air vents and the motor housing free of dirt and dust. Use a soft, dry brush to clean the equipment regularly. 2) Clear all dirt or debris from the collection tank after each use. -
Page 15: Troubleshooting
TROUBLESHOOTING. Cleaning Performance Vacmaster vacuum cleaners are tested for endurance. If your motor is operating, then the most likely cause for a loss in suction is a blockage or an opening in the vacuum. To maintain a high cleaning performance from your machine, it is important to replace or clean cartridge filters as necessary. -
Page 16: Technical Data
TECHNICAL DATA Model Number VDK1430SFC Motor 220-240V~50Hz Power Input 1400W Max. Power Consumption Of the Power 1590W for BS Socket Tool Take-Off Socket Outlet 2280W for VDE Socket Tank Volume Net Weight Max. Vacuum Pressure 24kPa / 240hPa Max. Flow Rate 68L/s / 244.8m³/h... -
Page 17: Plug/Fuse Replacement (Uk & Ireland Only)
PLUG/FUSE REPLACEMENT (UK & IRELAND ONLY) This product is fitted with a non-rewirable plug. If the plug has to be changed, refer to the picture below. 6 m m GREEN& YELLOW GREEN BROWN BLUE BLACK CORD GRIP... - Page 24 VDK1430SFC Suzhou Cleva Electric Appliance Co., Ltd. No.8 Ting Rong Street Suzhou Industrial Park, Suzhou Jiangsu Province, China www.cleva-europe.com Made in P.R.C...
