KNX B8-TH
Interface
Item number 70249
Installation and Adjustment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNX B8-TH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for elsner elektronik KNX B8-TH

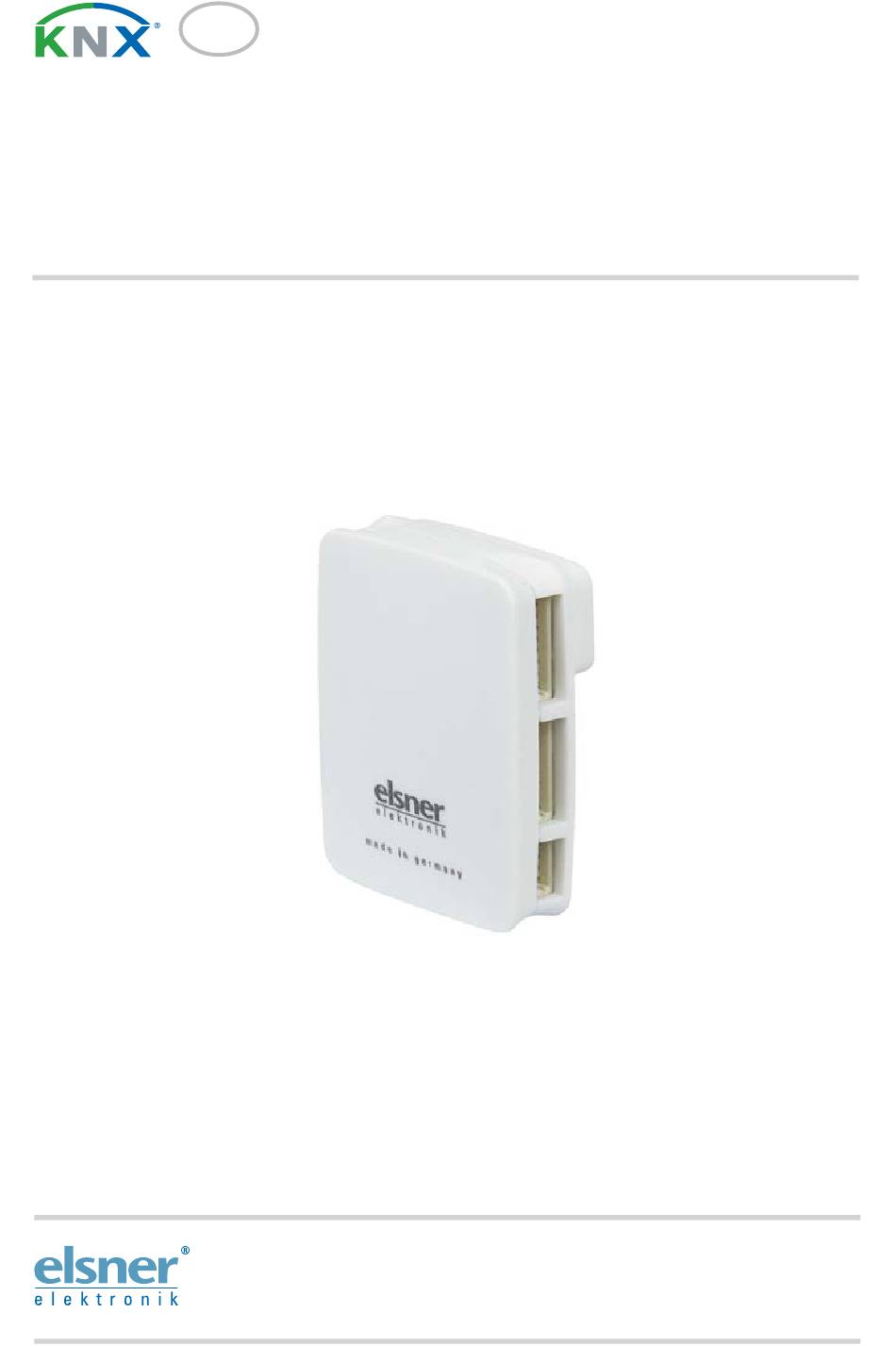

  • Page 1 KNX B8-TH Interface Item number 70249 Installation and Adjustment...
  • Page 2: Table Of Contents

    5.14.2. Control modes for drive control ..............52 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Interface KNX B8-TH • from software version 0.1.0, ETS programme version 1.0 Version: 24.08.2016 • Subject to technical changes. Errors excepted.
  • Page 3 Clarification of signs Installation, inspection, commissioning and troubleshooting of the device must only be carried out by a competent electrician. This manual is amended periodically and will be brought into line with new software releases. The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service"...
  • Page 4: Description

    Description Description The Interface KNX B8-TH has eight binary inputs and two additional sensor inputs for temperature or temperature and air humidity. They are used to integrate signals and values from conventional buttons and sensors into the KNX building bus.
  • Page 5: Technical Specifications

    There are unprotected live components inside the device. • National legal regulations are to be followed. • Ensure that all lines to be assembled are free of voltage and take precautions against accidental switching on. Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 6: Installation Location

    Avoid condensation. 2.3. Connection The Interface KNX B8-TH is connected to the KNX data bus with a KNX connection terminal. The physical address is assigned by the KNX software. There is a button with a control LED for this on the device.
  • Page 7: Device Design

    The device is delivered with con- nection lines for the binary inputs. IN1: black/white IN2: black/yellow IN3: black/purple IN4: black/blue IN5: black/red IN6: black/brown IN7: black/green IN8: black/grey Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 8: Diagram

    The device is supplied with the bus address 15.15.250. You can program another ad- dress into the ETS by overwriting the 15.15.250 address or by teaching via the pro- gramming key. Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 9: Transfer Protocol

    2 bytes Reading ue_Temp Temp. board sensor: Total Output R-CT [9.1] DPT_Val- 2 bytes reading ue_Temp Temp. board sensor: Min./ Input -WC- [1.17] DPT_Trigger 1 bit max. reading query Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 10 Temp. threshold value 3: Input -WC- [1.1] DPT_Switch 1 bit Switching output block Temp. threshold value 4: Input / RWCT [9.1] DPT_Val- 2 bytes Absolute value Output ue_Temp Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 11 Temp. threshold value 7: Input -WC- [7.5] DPT_TimePeri- 2 bytes Switching delay from 1 to 0 odSec Temp. threshold value 7: Output R-CT [1.1] DPT_Switch 1 bit Switching output Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 12 Temp. controller: Standby Input -WC- [1.1] DPT_Switch 1 bit heating setpoint (1:+ | 0: -) Temp. controller: Standby Input / RWCT [9.1] DPT_Val- 2 bytes cooling setpoint Output ue_Temp Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 13 [9.7] DPT_Value_Hu- 2 bytes midity Humidity sensor: Total Output R-CT [9.7] DPT_Value_Hu- 2 bytes reading midity Humidity sensor: Min./ Input -WC- [1.17] DPT_Trigger 1 bit max. reading query Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 14 1 byte Variable dehumidification actuator Humidity controller: Level Output R-CT [5.1] DPT_Scaling 1 byte 2 dehumidification actuator variable Humidity controller: Output R-CT [5.1] DPT_Scaling 1 byte Variable humidification actuator Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 15 1: Input 2 Actuating variable Input -WC- [5.1] DPT_Scaling 1 byte comparator 1: Input 3 Actuating variable Input -WC- [5.1] DPT_Scaling 1 byte comparator 1: Input 4 Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 16 AND logic 1: 8-bit output A Output R-CT [5.*] 1 byte AND logic 1: 8-bit output B Output R-CT [5.*] 1 byte AND logic 1: Block Input -WC- [1.1] DPT_Switch 1 bit Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 17 [1.1] DPT_Switch 1 bit Pushbutton 1 dimming Input / RWCT [3.7] DPT_Con- 4 bit Output trol_Dimming Pushbutton 1 encoder 8 bit Output R-CT [5.10] DPT_Val- 1 byte ue_1_Ucount Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 18 [5.10] DPT_Val- 1 byte ue_1_Ucount Pushbutton 5 encoder 16 bit Output R-CT [9] 9.xxx 2 bytes Pushbutton 5 Scene (call up) Output R-CT [18.1] DPT_Scene- 1 byte Control Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 19 [5.10] DPT_Val- 1 byte ue_1_Ucount Pushbutton 8 encoder 16 bit Output R-CT [9] 9.xxx 2 bytes Pushbutton 8 Scene (call up) Output R-CT [18.1] DPT_Scene- 1 byte Control Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 20: Parameter Settings

    (if a circuit board sensor is used) The settings for "temperature plug-in sensor reading" and "temperature circuit board sensor reading" and possibly the settings for air humidity (reading, threshold values, Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 21: Temperature Readings

    No • Yes The values are not retained after a reset. 5.4. Temperature threshold values The Interface KNX B8-TH provides eight threshold values for the temperature meas- urement of the sensors connected to the device. Use threshold values 1/2/3/4/5/6/7/8 No • Yes...
  • Page 22: Threshold Values 1

    Threshold value setpoint using Parameter • Communication objects Start threshold value in 0.1°C -300 … 800; 200 valid until first call Object value limit (min) in 0.1°C -300…800 Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 23 • At value 0: block | At value 1: release Blocking object value before first call 0 • 1 Set the output behaviour during and after blocking . Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 24: Temperature Pi Controller

    (setting via objects is ignored). The nominal values and delay times received by the communication object • not to be maintained • after power restoration • after power restoration and programming Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 25 You may also set up periodical monitoring by the actuator with this setting. Transmit control variable • on change • on change and periodically from change of (in % absolute) 1...10; 2 Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 26 • with separate nominal values without switching object • with comfort set point as a basis with switching object • with comfort set point as a basis without switching object Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 27 Minimum base setpoint (in 0.1°C) -300…800; 160 Maximum base setpoint (in 0.1°C) -300…800; 280 Reduction by up to (in 0.1°C) 0…200; 50 Increase by up to (in 0.1°C) 0…200; 50 Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 28 Starting heating/cooling setpoint (in 0.1 °C) -300…800; 210 valid until 1st communication Min. object value heating/cooling -300…800; 160 (in 0.1 °C) Max. object value heating/cooling -300…800; 280 (in 0.1 °C) Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 29 When using the control variable for a 4/6 way valve, the following applies: 0%...100% heating = 66%...100% control variable OFF = 50% control variable 0%...100% cooling = 33%...0% control variable Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 30: Heating Control Level 1/2

    On release, the control variable follows the rule again. When blocked, the control variable shall • not be sent • send a specific value Value (in %) 0...100 (if a value is sent) Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 31 (is determined at a higher level for com- mon control variables) Enter the hysteresis that prevents frequent on/off switching of temperatures in the threshold range. Hysteresis (in 0.1°C) 0...100; 20 Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 32: Cooling Control Level 1/2

    In case of a short reset time, the control responds with a fast increase of the control variable. In case of a long reset time, the control responds somewhat less Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 33 Enter the hysteresis that prevents frequent on/off switching of temperatures in the threshold range. Hysteresis (in 0.1°C) 0...100; 20 Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 34: Humidity Reading

    0.1% RH• ... • 1.0% RH • ... • 20.0% RH (if sent on change) Send cycle 5 s • 10 s • ... • 2 h (if sent periodically) Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 35: Humidity Threshold Values

    "temperature and humidity sensor" in the "General settings". The Interface KNX B8-TH provides two threshold values for the humidity measure- ment of the sensors connected to the device.
  • Page 36 • on change to 1 and periodically • on change to 0 and periodically Cycle 5 s • 10 s • 30 s… • 2 h (is only sent if periodically is selected) Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 37: Humidity Pi Control

    Use humidity control No • Yes General rules The Interface KNX B8-TH can be used to control one- or two-stage dehumidification or combined humidification/dehumidification. Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 38 For units which have already been tak- en into service, the last communicated setpoint value can be used. Basically, an air hu- Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 39 In case of a short reset time, the control responds with a fast increase of the control variable. In case of a long reset time, the control responds somewhat less Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 40: Dewpoint Measurement

    "temperature and humidity sensor" in the "General settings". The Interface KNX B8-TH calculates the dewpoint temperature and outputs the val- ue to the bus. Set which temperature sensor is to be used for dewpoint calculation. Then set the send pattern.
  • Page 41 0.1°C • 0.2°C • 0.5°C • 1.0°C • 2.0°C • 5.0°C (if sent on change) Send cycle 5 s • 10 s • 30 s • 1 min • … • 2 h (if sent periodically) Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 42 • if switching output = 1  send 1 Switching output sends on change to 0 • Do not send message • if switching output = 0  send 0 Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 43: Absolute Humidity

    The settings made for "absolute humidity" regarding the relevant sensor also apply to the comfort field settings! The Interface KNX B8-TH can send a message to the bus if the limits of the comfort field are exceeded. In this way, it is for example possible to monitor compliance with DIN 1946 (standard values) or even to define your own comfort field.
  • Page 44: Variable Comparator

    Transmission patterns and blocks can also be set. Output delivers • Maximum value • Minimum value • Average value Use input 1 / 2 / 3 / 4 / 5 No • Yes Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 45: Logic

    AND logic 4 not active • active OR logic OR logic 1 not active • active OR logic ... not active • active OR logic 4 not active • active Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 46: And Logic 1-4 And Or Logic Outputs 1-4

    0 … 255 / 100% / 360° / 127; 0 if block is active Output value object B 0 … 255 / 100% / 360° / 127; 0 If block is active Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 47 Output sends on change of logic to 1 and periodically if logic = 0  send value for 0 Output sends on change of logic to 0 and periodically Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 48: And Logic Connection Inputs

    Logic input 9 Logic input 9 inverted Logic input 10 Logic input 10 inverted Logic input 11 Logic input 11 inverted Logic input 12 Logic input 12 inverted Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 49 Frost protection temperature controller active Frost protection temperature controller inactive Heating 1 temperature controller active Heating 1 temperature controller inactive Heating 2 temperature controller active Heating 2 temperature controller inactive Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 50: Or Logic Connection Inputs

    Switching output AND logic 3 inverted Switching output AND logic 4 Switching output AND logic 4 inverted 5.14. Pushbutton interfaces Activate the interfaces (inputs) that you want to use here. The Interface KNX B8-TH provides eights inputs. Use interface 1/2/3/4/5/6/7/8 No • Yes 5.14.1.
  • Page 51 Use additional function for button held No • Yes down Time between tap and hold (in 0.1 sec) 0...50; 10 Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 52 If the input is used as a dimmer, select the bus function "Dimmer" and specify the but- ton function, time interval (switching/dimming) and if requested, the repeat interval for a long button press. Function Dimmer Button function brighter • darker • brighter/darker Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 53: Control Modes For Drive Control

    (when "and save" is selected) 5.14.2. Control modes for drive control If inputs are being used as switches to operate shades or windows, then various con- trol modes can be set. Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 54 1 + 2 have expired. The move can be stopped by briefly pushing. Fig. 4 Time interval comfort mode diagram Time 1 Time 2 1 + 2 Point in time 0: Push of button, start of time 1 Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 55 The drive moves as soon as the button is pushed and stops as soon as the button is released. Control mode Dead man's switch Behavior during button operation: Push button = Up or Down command Release button = Stop command Interface KNX B8-TH • Version: 24.08.2016 • Technical changes and errors excepted.
  • Page 56 Elsner Elektronik GmbH Control and Automation Technology Sohlengrund 16 75395 Ostelsheim Phone +49(0)70 33/ 30945-0 info@elsner-elektronik.de Germany +49 (0) 70 33/ 30945-20 www.elsner-elektronik.de Technical support: +49 (0) 70 33 / 30 945-250...
