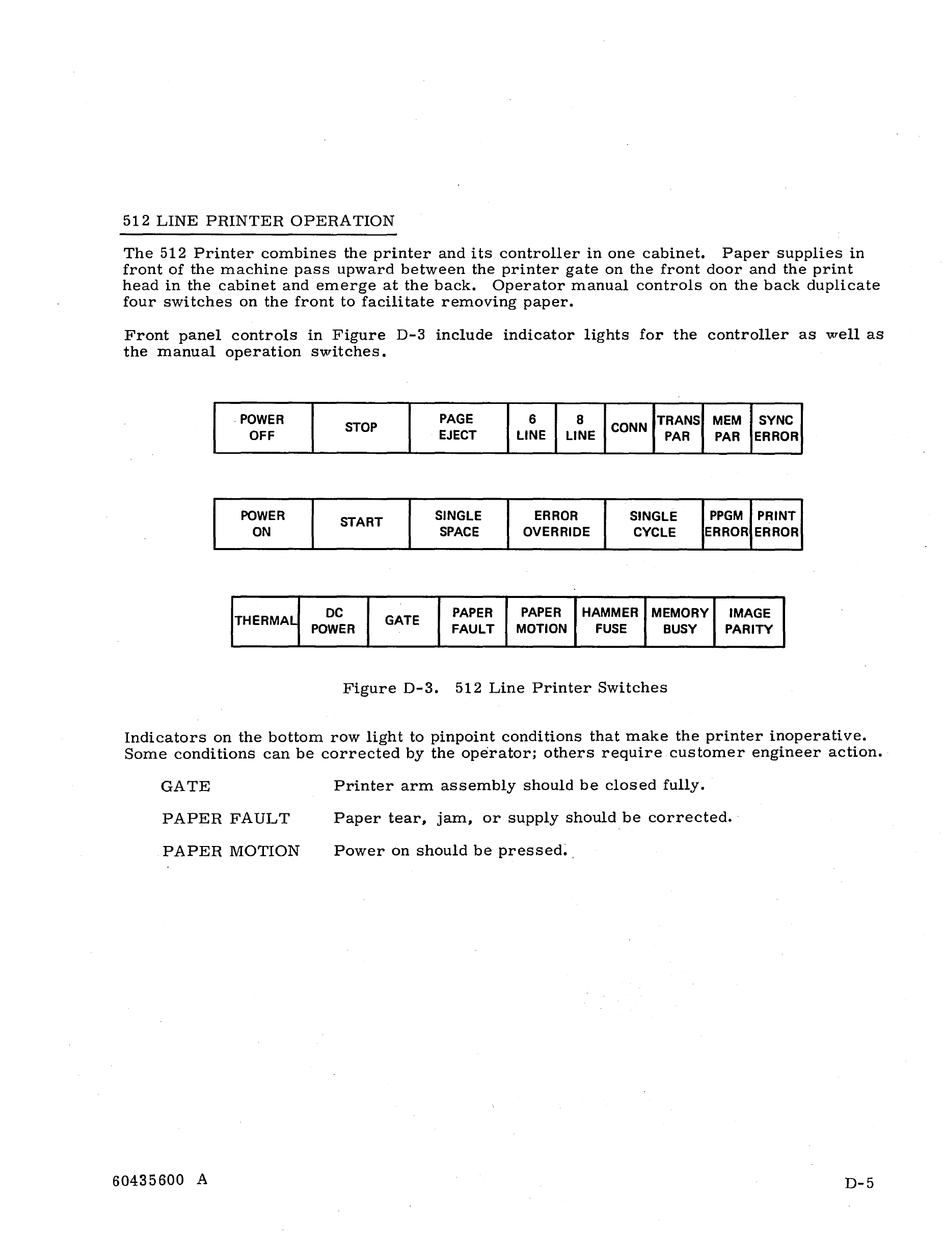

512 LINE PRINTER OPERATION
The 512 Printer combines the printer and its controller in one cabinet. Paper supplies in
front of the machine pass upward between the printer gate on the front door and the print
head in the cabinet and emerge at the back. Operator manual controls on the back duplicate
four switches on the front to facilitate removing paper.
Front panel controls in Figure D-3 include indicator lights for the controller as well as
the manual operation switches.
POWER
STOP
PAGE 6 8
CONN
TRANS MEM SYNC
OFF
EJECT LINE
LINE PAR
PAR
ERROR
POWER
START
SINGLE ERROR SINGLE PPGM PRINT
ON SPACE OVERRIDE CYCLE ERROR ERROR
THERMAL
DC
GATE
PAPER
PAPER HAMMER
MEMORY IMAGE
POWER FAULT MOTION FUSE BUSY PARITY
Figure D-3. 512 Line Printer Switches
Indicators on the bottom row light to pinpoint conditions that make the printer inoperative.
Some conditions can be corrected by the operator; others require customer engineer action.
GATE
PAPER FAULT
PAPER MOTION
60435600 A
Printer arm assembly should be closed fully.
Paper tear. jam. or supply should be corrected ..
Power on should be
pressed~
.
D-5
