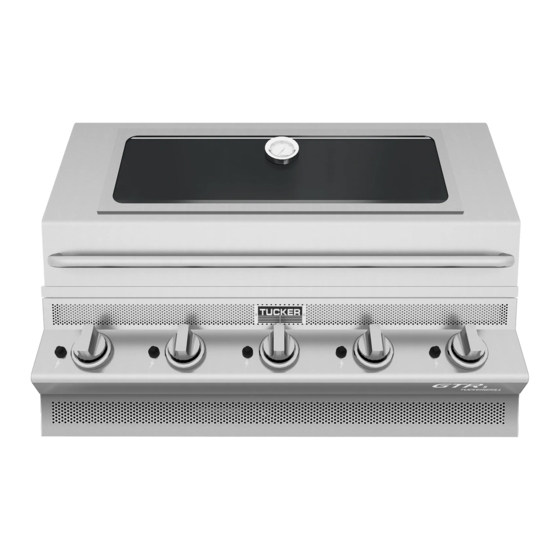

Tucker Barbecues GTR Series Assembly, Installation And Operating Instructions
Built-in barbecue
Hide thumbs
Also See for GTR Series:
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Tucker Barbecues GTR Series
Summary of Contents for Tucker Barbecues GTR Series
- Page 1 ASSEMBLY , INSTALLATION AND OPERATING INSTRUCTIONS FOR GTR SERIES BUILT-IN BARBECUE MODELS: GTR3, GTR4, GTR5, GTR6. GTR3 S, GTR4 S, GTR5 S, GTR6 S. GTR3 SS, GTR4 SS, GTR5 SS, GTR6 SS. IMPORTANT – PLEASE READ ALL INSTRUCTIONS BEFORE YOU ASSEMBLE, INSTALL OR OPERATE THIS APPLIANCE.
-
Page 2: Table Of Contents
CONTENTS GENERAL WARNINGS BARBECUE ASSEMBLY INSTRUCTIONS INSTALLATION INSTRUCTIONS & WARNINGS SPECIFICATIONS DIMENSIONS GAS INSTALLATION AND LEAK TEST PROCEDURE OPERATING INSTRUCTIONS COOKING HINTS TROUBLESHOOTING SERVICE & MAINTENANCE WARRANTY... -
Page 3: General Warnings
IMPORTANT SAFETY INSTRUCTIONS • Tucker GTR Barbecues are approved for • Read all instructions carefully before outdoor use only. assembly and usage of the barbecue. • Remove all plastic protection film from • Do not use or store flammable materials in or stainless steel components before assembly. -
Page 4: Barbecue Assembly Instructions
BARBECUE ASSEMBLY INSTRUCTIONS TOOLS REQUIRED FOR ASSEMBLY • Remove the pallet and any plastic film protecting or covering any parts of the Barbecue and 10mm spanner Cabinet Trolley before assembly. • Cut away any packaging or cable ties that may Phillips head screwdriver be holding components in place. - Page 5 GTR SUPPORT KITS, HOOD AND LID GTR ANGLE SUPPORT KIT ASSEMBLY Tucker GTR BBQs can be installed into a GTR Angle Support Kit Parts non-combustible material with one of the following Kits. - GTR Angle Support Kit - GTR Side Panels Support Kit To install GTR BBQ into Non-combustible you must have one of the kits, depending if it’s going to be hanging or sitting on the benchtop.
- Page 6 2. First install the side angle hanging brackets to the BBQ by installing the two bolts on each side. 5. Insert the bolt and spacer into the bracket hole and secure it into the nut attached to the inner part of the fascia as per photos. 3.
- Page 7 Once the bolts are screwed into the fascia you will be able to flip up the BBQ fascia to access the grease tray. M6 Bolts Spacers Small Bolts 1. Remove the grease tray from the BBQ to install the BBQ fascia kit. GTR SIDE PANELS SUPPORT KIT ASSEMBLY GTR Side Panels Support Kit Parts 2.
- Page 8 BARBECUE ASSEMBLY 1. First place the Flare Guards into the barbecue. The Flare Guards are only required beneath the stainless steel Cooking Grills. Place the smaller Flare Guards directly above the burners and place the larger Flare Guards between the burners as per photos below. The Wok Trivet is used to support either a Wok or Pot with a diameter of no less than 230mm.
-
Page 9: Installation Instructions & Warnings
INSTALLATION INSTRUCTIONS & WARNINGS BARBECUE INSTALLATION INSTRUCTIONS DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS READ THE IMPORTANT INFORMATION ON THE FRONT OF THE BARBECUE The following figures are diagrammatical representations of outdoor areas. The areas used in the figures below are examples – the For installation onto a GTR trolley read relevant same principles apply to any other shaped instructions. - Page 10 FIGURE 4 OUTDOOR AREA –EXAMPLE 4 Open side at least 25% 30% or more in total of of total wall area the remaining wall area is open and unrestrict- OPEN AT SIDE AT LEAST 25% OF TOTAL WALL AREA. 30% OR MORE IN TOTAL OF THE REMAINING WALL AREA IS OPEN AND UNRESTRICTED FIGURE F5 –...
-
Page 11: Specifications
SPECIFICATIONS BARBECUE GAS CONSUMPTION The minimum capacity propane cylinder for this barbecue is 4 KG. (In Mega Joules Per Hour) Warning in freezing conditions the pressure of Model Natural Gas LPG: Propane gas can be reduced in the Cylinder Tank causing a lack of gas pressure, this may GTR3 39mj 40.5mj... -
Page 12: Dimensions
DIMENSIONS DIMENSIONS OF GTR BARBECUES (Measurements are in mm) Model GTR SS GTR3 GTR3SS GTR4 GTR4SS 1115 1075 GTR5 GTR5SS 1275 1235 GTR6 1015 GTR6SS 1435 1395 20mm 70mm 90mm... - Page 13 GTR BBQ CUT OUT DIMENSIONS FOR NON COMBUSTIBLE INSTALLATION (Measurements are in mm) Dimensions with Dimensions with Model Dimensions with GTR Side Panels GTR Angle Support no Kits Support Kit GTR SS GTR3 GTR3SS 1020 GTR4 GTR4SS 1115 1135 1180 GTR5 GTR5SS 1275...
- Page 14 The manifold inlet is in the base of the BBQ at the front on the right-hand side. Manifold diameter is 20mm square tube. The GTR Roasting Hood if fitted is 320mm high from the top of the Cooking Surface when shut and 410mm high when open.
-
Page 15: Gas Installation And Leak Test Procedure
GAS INSTALLATION AND LEAK TEST PROCEDURE CONNECTION OF A GAS CYLINDER TO THE BARBECUE IS AS FOLLOWS The hose assembly connection to the appliance is fitted by the manufacturer. There must be no naked flames in the area when connecting the barbecue to a gas supply. - Page 16 GAS INSTALLATION PROPANE GAS TO NATURAL GAS CONVERSION PROCEDURE FOR AUTHORIZED INSTALLER Check for leaks after each gas refill. • Disconnect the gas supply and remove the plate, grills, flare guards and burners from the barbecue Check that the hose is not kinked or under tension. and the Wok burner if fitted.
- Page 17 Check the operation of the ignition to the burners • and make any necessary adjustment. Natural gas is lighter than air you may need to adjust the ignition probe up a little higher for it to light. Ensure the data plate is changed / altered to •...
-
Page 18: Operating Instructions
OPERATING INSTRUCTIONS GTR BARBECUE LIGHTING INSTRUCTIONS MANUAL LIGHTING INSTRUCTIONS FOR BBQ AND WOK To light the BBQ manually place a match into the manual lighting Match Holder. Before each use remove any accumulated grease and other cooking residue. 1. Turn on one Control Knob of a Burner under the Cooking Grill section of the BBQ to High and light 1. -
Page 19: Cooking Hints
COOKING HINTS COOKING TIPS CLEAN UP If flare ups occur turn the BBQ down and the flare will Check the grease collection tray after each use subside as the temperature will decrease. and wash it in hot soapy water in the sink. Always turn the meat with tongs, a fork will pierce the 2. -
Page 20: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING SOLUTIONS One of the burners won’t light? Check the throat of the burner for a blockage, re- Barbecue won’t light? move the air mixture cap and gauze on the throat of the burner and push a screwdriver up it to clear the Check all gas connections and that the blockage. - Page 21 Barbecue doesn’t seem to be as hot anymore? Check burner inlet and burner port holes for blockages or regulator pressure. Insects maybe in the burners. Check the injectors are not blocked on the control valves.
-
Page 22: Service & Maintenance
SERVICE & MAINTENANCE TAKE CARE OF THE APPLIANCE 11. Stainless Steel barbecues can be affected by high temperatures of which can cause discoloration on the BBQ frame. 1. Before each use remove any accumulated grease and other cooking residue. Fat/grease 12. -
Page 23: Warranty
WARRANTY TUCKER GTR BARBECUE WARRANTY 3. Installation must conform to the standards laid down by the local codes or, in the absence of local codes, with AGA code AG:601 WARRANTY PERIOD AS:5601:2002 4. No alterations or repairs are to be carried out Stainless steel body 10 years without obtaining the distributors prior consent. - Page 24 TUCKER AUSTRALIA PTY LTD. 138 Silverwater Road Silverwater NSW 2128 AUSTRALIA. PHONE: (+612) 9748 8368 FAX: (+612) 9748 8138 WEB SITE: www.tuckerbbq.com.au EMAIL: mail@tuckerbbq.com.au...
