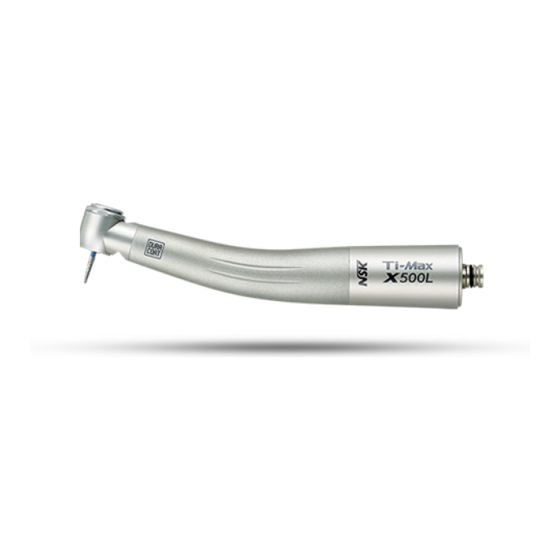

NSK Ti-Max X500L Operation Manual
  1. Manuals
  2. Brands
  3. NSK Manuals
  4. Dental equipment
  5. Ti-Max X500L
  6. Operation manual

NSK Ti-Max X500L Operation Manual

Hide thumbs Also See for Ti-Max X500L:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ti-Max X500L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NSK Ti-Max X500L

Summary of Contents for NSK Ti-Max X500L

  • Page 2 KaVo ® and MULTIflex ® are registered trademarks of Kaltenbach & Voigt GmbH & Co., Germany. Sirona ® is a registered trademark of Sirona Dental Systems GmbH, Germany. Use Environment Temperature : 0 - 40°C , Humidity: 30 - 75 % , Atomospheric Pressure: 700 - 1,060 hPa W&H and Roto Quick are registered trademarks of W&H Dentalwerk Bürmoos GmbH, Austria.
  • Page 3 Check for vibration, noise and overheating outside the patient's mouth. If any abnormalities are found do not operate. Contact your authorized NSK Dealer for service. • Should the handpiece not function normally, cease operation immediately and return the handpiece to your authorised NSK Dealer for service. •...

  • Page 4: Performance Specifications

    Performance specifications Caution • Do not operate the handpiece without first inserting a bur or test-bur into the chuck. X500L X500 X600L X650L X600 X700L X700 Model • Remove the bur only after the handpiece has completely stopped rotating. • Do not look into LED light directly.
  • Page 5 — 0.38A Typical ( 3.3V ) 0.38A Typical ( 3.3V ) 0.38A Typical ( 3.3V ) NSK COUPLING : Pull back Connector Ring to release the handpiece. Head Size Diameter x Height ø10.3 x 11.7 mm ø11.2 x 13.6 mm...
  • Page 6 Insertion & Removal of the bur Information about burs TO INSERT THE BUR (Fig. 2) TO REMOVE THE BUR (Fig. 3) • Do not use non-standard burs. The ISO standard shank diameter is ø1.59 - ø1.60 mm. Caution Depress the Push Button and insert Stop the handpiece.
  • Page 7 Half fill a cup with clean water. Operate the handpiece and, while it is Fig. 5 To maintain effective performance of the NSK Clean Head System it running, immerse half of the handpiece head in the water, (Fig. 5) Outlet Holes is important before steriliz ation to clean the specific outlet holes...

  • Page 8: Automatic Lubrication

    Automatic lubrication Manual lubrication After cleaning the handpiece apply NSK PANA SPRAY Plus BEFORE autoclaving (Fig. 6). Make sure the CORRECT This handpiece can be washed via Thermo Disinfector. application nozzle is connected to the plastic valve at the top of the spray can. Firmly insert the Nozzle into the rear of Lubricate the handpiece EACH TIME BEFORE AUTOCLAVING the handpiece and activate the spray for 2-3 seconds until the spray exhausts from the handpiece head.
  • Page 9 • The color may be slightly faded by repeated sterilization. (X650L) EN13060 4.6.3 recommends autoclaving for 3 minutes (minimum holding time) at 134°C or 15 minutes (minimum holding time) at 121°C. NSK recommends Class B or S sterilization.

  • Page 10: Replacing The O-Rings

    Replacing the optic illumination bulb Replacing the O-rings (X WL, X BL Series) (X L, X Series) Remove the handpiece from the coupling. Loosen and remove the Replace the O-rings if water is present in the exhaust air line. This is an Taper Ring Taper Ring Fig.

  • Page 11: Disposing Product

    Cleaning the cellular glass optic rod (X L, X KL, X SL, X WL, X BL Series) Fig. 11 Wipe clean the Cellular glass optic rod entry point (Fig.11) and exit point (Fig. 12) with an alcohol-immersed cotton swab. Remove all debris and oil.
