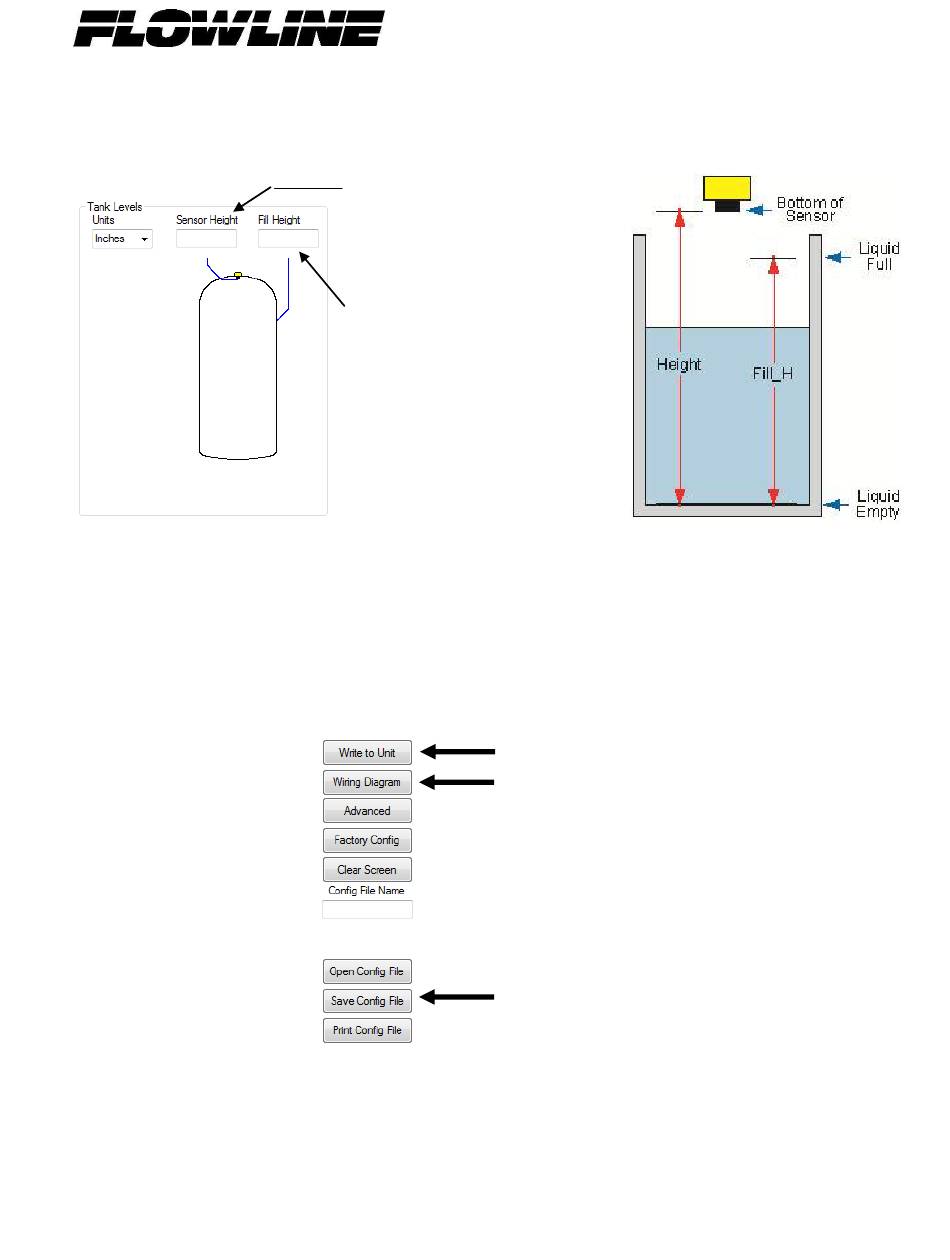

WebCal Step 2: Tank Levels
This section of WebCal is where you enter application measurement values. All values must be
filled in before moving to step 3.
WebCal Step 3: Write to Unit
After you have entered configurations and tank values, click "Write to Unit" and send the
configuration to your EchoPod. Now use WebCal's file management features to save your
configuration by clicking "Save Config File" and print your wiring diagram by clicking "Wiring
Diagram."
31 MAR 11
Rev B
Sensor Height: Distance from
the bottom of the tank to the
bottom of the transducer.
Fill Height: Distance from the
bottom of the tank to the
maximum liquid height.
Write to Unit
Wiring diagram
Save Config File
