Model: DL14-(XX)

EchoPod

MN300210 Ver: 3.0

Made In USA

We Do Your Level Best!

Manual

We Do Your Level Best!

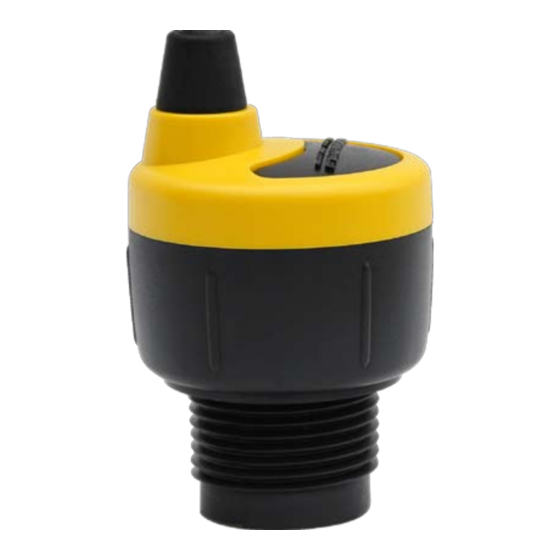

Thank you for purchasing Flowline's new innovative small tank solution.

EchoPod is a general purpose sensor that combines switch, controller and

transmitter capabilities for small tanks 49.2" (1.25 m) or less. Flowline would

like to thank you for your business and continue to do your level best!

Components

EchoPod is offered in three different models. Depending on the model pur-

chased, you may or may not have been shipped all the components shown

below. You do however, need an EchoPod, USB® Fob and Viton® gasket to

configure, install and operate EchoPod.

DL14-00

Viton™ Gasket

EchoPod & Gasket

Tank

Configuration

EchoPod is configured through WebCal, a PC software program. WebCal

is a free download from Flowline's website. You must download and install

WebCal prior to plugging in the USB® Fob. Please go to http://www.flowline.

com/webcal and select download.

WebCal System Requirements

DL14-01

LI99-1001

PART NO.: LI99-1001

USB® Fob

Viton™ Gasket

EchoPod, Gasket

& USB® Fob

Tank

Windows® XP or 2000

10 mB hard drive space

256 mB RAM

1 USB® 2.0 port

Internet connection

We Do Your Level Best

Part#204038

Viton® Gasket

Need help?

Do you have a question about the EchoPod DL14 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for FlowLine EchoPod DL14 Series

Page 1 Thank you for purchasing Flowline’s new innovative small tank solution. EchoPod is a general purpose sensor that combines switch, controller and transmitter capabilities for small tanks 49.2” (1.25 m) or less. Flowline would like to thank you for your business and continue to do your level best!
Page 2 1-3 (pg. 4-5) to configure EchoPod. Click “Help” in the lower right hand corner and open the help menu of WebCal. If you need additional as- Sensor Height: Distance from the bot- sistance using WebCal, please contact a Flowline Applications engineer. tom of the tank to the bottom of the transducer.
Page 3 (LM52-1001). Inner Diameter 6" (15 cm) 12” (30 cm) poor performance. Refer to Flowline’s mounting guide on pg. 6 for further Riser: Use the riser specifications guide and instruction, or www.flowline.com/echopod and select “Support.” match your riser’s inner diameter with the height.
Page 4 Flowline, Inc. 6. This sensor should not be used in classified hazardous environments Flowline and the Flowline logo are trademarks of Flowline Inc. All other trademarks or registered trademarks of their respective companies. U.S. Patent #: 7,098,669 We Do Your Level Best...
