Assurez-vous que l’appareil est hors tension avant de connecter les hauts parleurs. Veri ez que la sortie des enceintes soit protégées contre un contact physique. Respecter les polarités des terminaux ainsi que le câblage des enceintes pendant le fonctionnement afin d’assurer une utilisation sécurisee. PICOBLU INSTALLATION AND OPERATION MANUAL...
Page 3

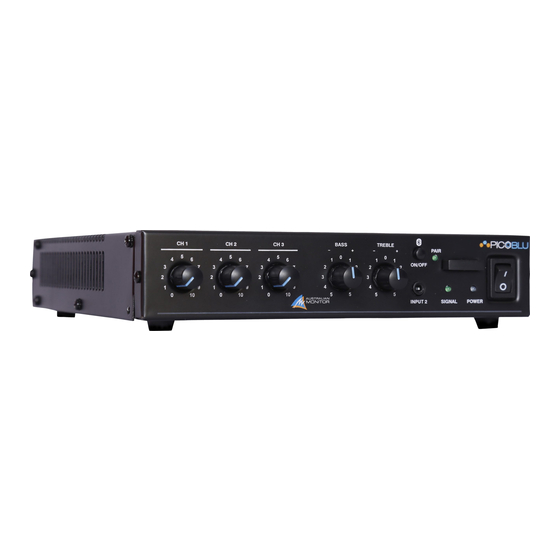

Front Panel Rear Panel Congratulations on choosing Australian Monitor for your professional amplification requirements. Installation The Australian Monitor PICOBLU is a small form factor 30W Mixer Bluetooth Audio Streaming ® Amplifier specifically designed for small space applications such as Troubleshooting cafes, restaurants, small retail and classrooms.
Page 4
3.5mm input • Bass and Treble Tone Controls • 100V and 4Ω outputs • Priority Mute for microphones • Line Output • 217mm x 271mm x 44mm • Rack mountable PICOBLU BLOCK DIAGRAM POWER AMPLIFIER ® PICOBLU INSTALLATION AND OPERATION MANUAL...
Consult the Bluetooth ® Audio Streaming section of this manual for further details of these controls. INPUT 2 Input 2 is an auxiliary line input. Its volume is controlled by the CH2 volume knob on the front. PICOBLU INSTALLATION AND OPERATION MANUAL...
MAINS INPUT CONNECTOR Your amplifier is fitted with a standard IEC 60320-C14 socket for mains connection. Use the mains cable supplied to power up the unit. NOTE: Your unit must always be earthed! PICOBLU INSTALLATION AND OPERATION MANUAL...
PAGING SOLUTION The PICOBLU can be configured to provide a paging solution for small installations. Simply connect a paging microphone to CH1 XLR input and connect the contact closure output of the paging microphone to the PICOBLU mute terminals as shown below:...
ON/OFF button down for 2 seconds. The PAIR LED should start flashing every 200ms On your Bluetooth ® device, not the PICOBLU, select the Bluetooth ® device named as ‘AUS MONITOR’. Consult the device’s ® manual about accessing the Bluetooth connection options.
Reduce Bass control level No sound but amplifier is on Volume controls down Check volume controls No sound from channels 2 and 3 Priority function is being used Disconnect mute connection on speaker output terminals. PICOBLU INSTALLATION AND OPERATION MANUAL...
Page 10
DIMENSIONS FRONT: 217mm (8.54“) 1RU RACK MOUNT KIT: 133mm (5.24“) 133mm (5.24“) 483mm (19.02“) TOP: UNDER DESK RACK MOUNT KIT: 247mm (9.72“) PICOBLU INSTALLATION AND OPERATION MANUAL...
ACCESSORIES Under Desk Mounting Kit (sold separately) APPROVALS CE, IEC, RCM Due to continuous improvements, all specifications are subject to change ENGINEERED BY AUSTRALIAN MONITOR The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Address: Unit 1, 2 Daydream Street, Warriewood NSW 2102 Australia Inc.
