To Set The I-Vu Open Link Address On The Open Network - Carrier i-Vu Open Link Installation And Startup Manual

Installation
The i-Vu Open Link
needs...
A router address
An IP address

To set the i-Vu Open Link address on the Open network

CAUTION The router address must be unique on the IP and Open network.
If wired for power, turn off the controller's power. The controller reads the address each time you turn it
1
on.
Use the rotary switches to set the address. Set the Tens (10's) switch to the tens digit of the address,
2
and set the Ones (1's) switch to the ones digit. Valid addresses are 1 - 99.

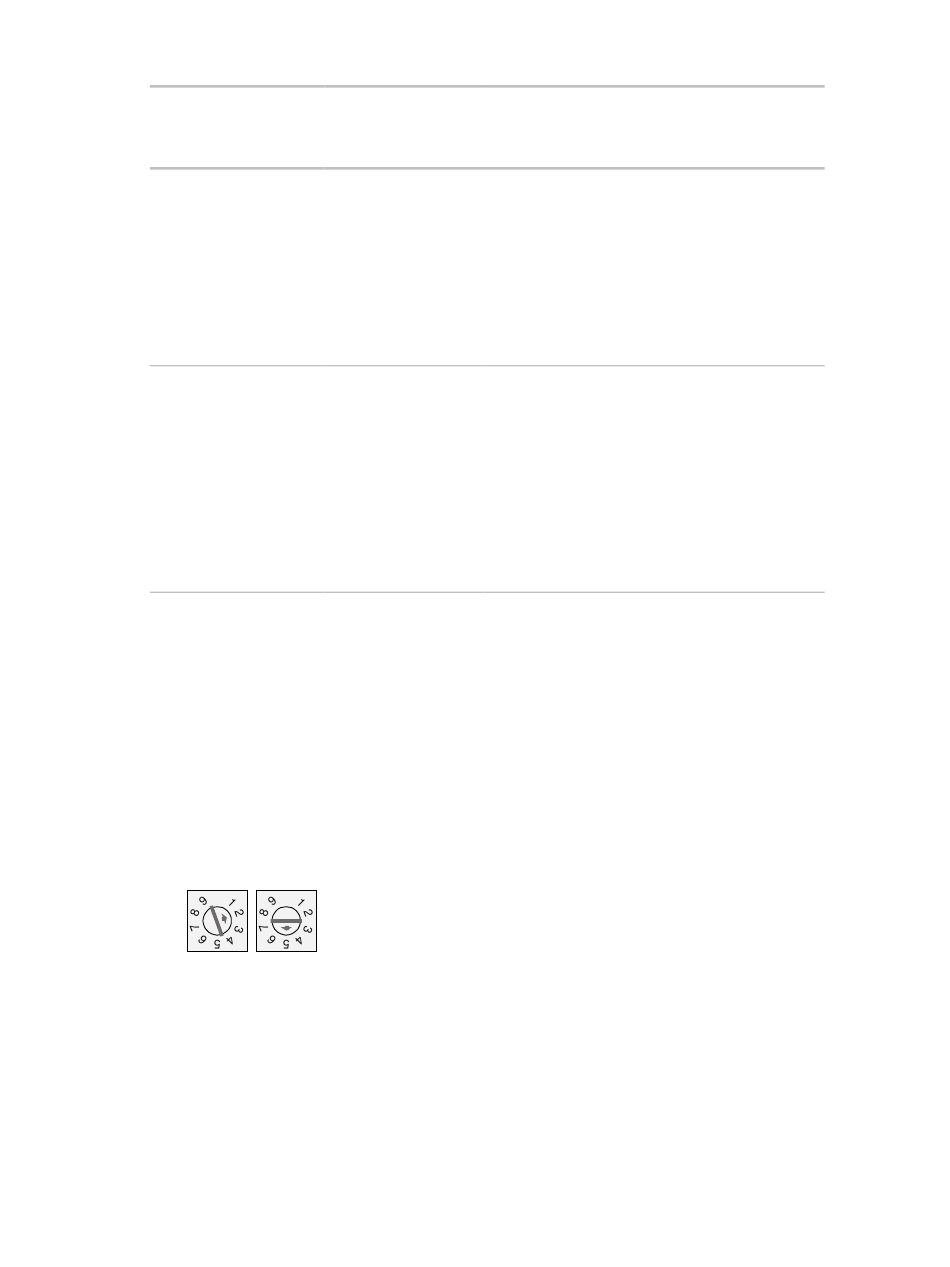

EXAMPLE If the controller's address is 25, point the arrow on the Tens (10's) switch to 2 and the arrow
on the Ones (1's) switch to 5.
10's
0
Turn on the i-Vu Open Link's power.
3
NOTE The factory default setting is "00" and must be changed to successfully install your i-Vu Open Link.
8
That is unique
on the...
Open network
IP Network
1's
0
Notes
You set the i-Vu Open Link address on the
controller's rotary switches. (1 - 99)
NOTES
•
The i-Vu Open Link address is also used to
auto-generate the BACnet device
instance/name for the router and the
MS/TP network number for the connected
Open network. See Configuring BACnet
device instance and network number.
Use the IP Address DIP switch to choose one of
the following:
•
Use DHCP to obtain an IP address
•
Assign a custom IP address (default)
The default IP settings are:
• 192.168.168x, where x = router address
•
subnet mask = 255.255.255.0
•
default gateway = 192.168.168.254
i-Vu Open Link
