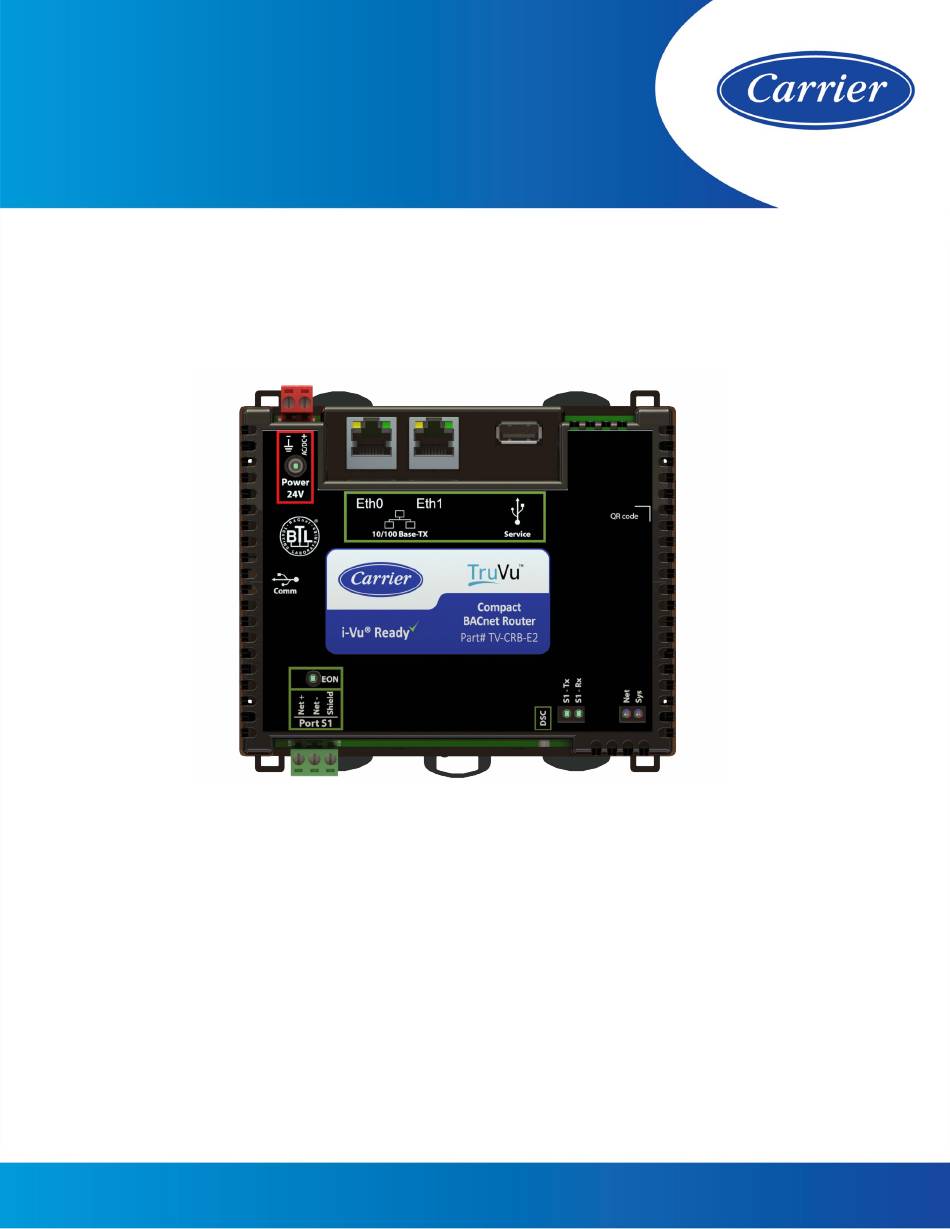

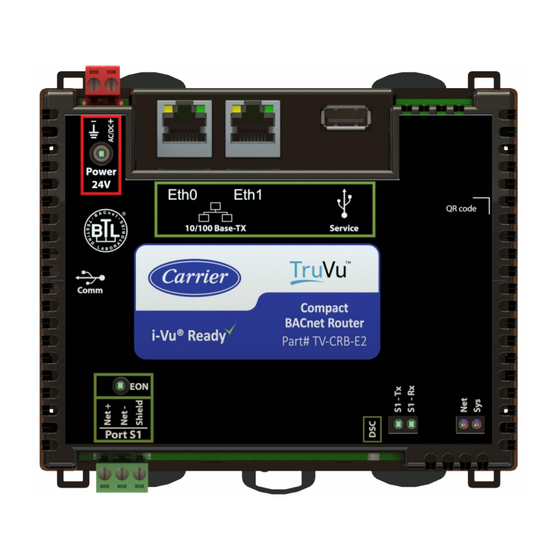

TruVu™ Compact BACnet Router
(part no. TV-CRB-E2 )
Installation and Start-up Guide
©2024 Carrier. All rights reserved. • Catalog No. 11-808-1078-01 • 5/22/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TruVu TV-CRB-E2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Carrier TruVu TV-CRB-E2

  • Page 1 TruVu™ Compact BACnet Router (part no. TV-CRB-E2 ) Installation and Start-up Guide ©2024 Carrier. All rights reserved. • Catalog No. 11-808-1078-01 • 5/22/2024...
  • Page 2 Verify that you have the most current version of this document from www.hvacpartners.com, the Carrier Partner Community website, or your local Carrier office. Important changes are listed in Document revision history at the end of this document. ©2024 Carrier. All rights reserved.
  • Page 3: Table Of Contents

    Contents What is the TruVu Compact BACnet Router (part no. TV-CRB-E2)? ..............1 Specifications ..............................2 To mount the TV-CRB-E2 ..........................4 Wiring for power ............................5 To wire for power ............................5 Addressing the TV-CRB-E2 through the USB Service Port................6 To set up autobaud ............................
  • Page 4 Contents BACnet Compliance ............................ 44 Appendix - Module Status field descriptions ....................45 Document revision history ........................47...
  • Page 5: What Is The Truvu Compact Bacnet Router (Part No. Tv-Crb-E2)

    For routing this type of communication... At... Eth0, 10/100 Mbps Ethernet BACnet/IP, 10,100 Mbps Eth1 BACnet/Ethernet High-speed EIA-485 BACnet/MSTP 9.6 to 115.2 kbps Service BACnet/IP Service Port Port (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 6: Specifications

    Service Port USB 2.0 host port for setting up the router and troubleshooting through a local connection to a computer, connecting to the TruVu™ Equipment Touch, or the Carrier USB Wireless service adapter. USB 2.0 host port supports communicating expansion modules.
  • Page 7 EN50491-5-2:2009; Part 5-2: EMC requirements for HBES/BACS used in residential, commercial and light industrial environments RoHS Compliant: 2015/863/EU REACH Compliant Australia and New Zealand: C-Tick Mark, AS/NZS 61000-6-3 (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 8: To Mount The Tv-Crb-E2

    5.88 in. (14.93 cm) dimensions 4.41 in (11.20 cm) Depth: 2.01 in. (5.11 cm) Screw 3.00 in. (7.62 cm) mounting 5.29 in. (13.44 cm) dimensions (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 9: Wiring For Power

    The TV-CRB-E2 is powered by a Class 2 power source. Take appropriate isolation measures when mounting it in a control panel where non-Class 2 circuits are present. • Carrier controllers can share a power supply as long as you: • Maintain the same polarity.
  • Page 10: Addressing The Tv-Crb-E2 Through The Usb Service Port

    The TV-CRB-E2 is addressed using the router setup pages. The Local Network tab allows you to discover all i-Vu® XT or TruVu™ devices on a single network and configure them from that page. You can connect the TV-CRB-E2 to a computer using either the Carrier wireless service adapter or a USB cable. NOTES •...
  • Page 11: To Set Up Autobaud

    Autobaud does not work unless there is a device on the network, whether Carrier or third party, that has the baud rate already set. You can manually set the baud rate on more than one device, as long as the rate is the same for every device.
  • Page 12: To Set The Ip Address

    On the router setup Ports tab, under IP Port, select Custom Static. Enter the IP Address, Subnet Mask, and Default Gateway addresses given to you by the network administrator. Click Save. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 13: Configuring Bacnet Device Instance And Network Number

    = Router's rotary switch address (ARCNET/MSTP MAC address) ID: It uses two digits, 24 for ALC/OEM and 16 for Carrier channel. Network ID: ((Sum of all four octet of Network address) MOD 80) + 10, 10 is added here to make device id unique when older product (with rotary switch) are used along with new product (w/o rotary switch).
  • Page 14 NOTE Do not configure the home network address of the TV-CRB-E2 to a number greater than 127 or 254 depending on the networks. The downstream network numbers will have to be manually set. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide...
  • Page 15: Addressing A Network Of Controllers Using The Controller Setup Local Network Tab

    Method 1: To address when you know the serial numbers Connect to the Service Port of one Carrier i-Vu® XT or TruVu™ device on the IP network. For details, see Addressing the TV-CRB-E2 through the Service Port (page 6).
  • Page 16: Method 2: To Address When You Do Not Know The Serial Numbers

    Local Network page. Connect to the Service Port of one Carrier i-Vu® XT or TruVu™ IP device on the network. For details, see Addressing the TV-CRB-E2 through the USB Service Port (page 6).
  • Page 17 One technician alone can address the controllers on a mobile device showing the Local Network page by plugging the Carrier wireless service adapter into a controller's Service Port. Then, with the computer, move to each controller within 100 ft. of the adapter. Pressing the DSC button on the controller displays a blue dot in the table where the addressing information can be entered.
  • Page 18: Wiring For Communications

    22 AWG, low-capacitance, twisted, stranded, 2000 feet (610 meters) MS/TP shielded copper wire ¹For details, see the Open Controller Network Wiring Guide. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 19: To Connect The Tv-Crb-E2 To The Ethernet

    BACnet Broadcast Management Device (BBMD). Do not configure more than one BBMD per subnet as this may cause circular routes. See "Setting up BACnet Broadcast Management Devices (BBMDs)" in the i-Vu® Help. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 20: To Wire To A Bacnet Ms/Tp Network

    To verify communication with the network, get a Module Status report in the i-Vu® interface for a router on the MS/TP network. NOTE This step requires you to discover and upload the router in the i-Vu® interface. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 21: Find And Upload In The I-Vu® Interface

    When complete, a check mark under Status indicates a successful upload. NOTES • If an error message appears, click on the message to view an explanation. • For details, see the i-Vu® Help. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 22: Adjusting The Tv-Crb-E2 Driver Properties

    If the difference is less than this field's value, the controller's time is slowly adjusted until the time is correct (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 23 You can unlock a device for 24 hours to make IP address changes. Configuration from other devices on the local network for 24 hours Debug Enable only if directed by Carrier Control Systems. Enable Debug Messages (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier.
  • Page 24: Device

    Restore Displays time of the last restore. Click button to restore the most recent backup of the controller's control programs, properties, and schedules. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 25: Notification Classes

    When you want alarms to be broadcast (you must uncheck Issue Confirmed Notifications). This use is rare. Days and times The days and times during which the recipient will receive alarms. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 26: Calendars

    Control Program • Duplicate Address NOTE To set up alarm actions for controller generated alarms, see “Setting up alarm actions” in the i-Vu® Help. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 27: Bacnet Router Properties

    IP addresses that you define. These can be all private IP addresses and/or a list of IP addresses. Follow the instructions in the i-Vu® interface to set up the BACnet firewall. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide...
  • Page 28: Network Diagnostics - Statistics

    Whitelist Rejections (if BACnet Firewall is enabled)—Messages blocked by the BACnet Firewall because the IP address that sent the message was not in the whitelist. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 29 FIFO errors, frame errors, length errors, missed errors, and overrun errors. Transmit Errors (total)—All errors related to transmitted packets such as aborted errors, carrier errors, dropped errors, FIFO errors, heartbeat errors, and window errors. Dropped Packets—Packets dropped by the TV-CRB-E2’s Ethernet interface.
  • Page 30: Network Diagnostics - Packet Capture

    The capture will automatically resume. Click on the Start/Stop option to end the Continuous capture. • If the port is set up for MS/TP, select an option in the Capture section. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 31: Communication Status

    Open the .pcap file in Wireshark. Communication Status The Communication Status page shows the status of the protocols currently running on the TV-CRB-E2’s ports. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 32: To Set Up Network Statistic Trends

    NOTE Any trends not stored in the historian will be lost if the router loses power. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 33 System Options > System days Settings > General tab. Select the second option to set a value for this trend only. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 34: To Set Up The Router Through The Service Port

    You can communicate with the TV-CRB-E2 through a web browser by connecting a computer to the router's Service Port using either the Carrier wireless service adapter or a USB cable. NOTE You cannot access the Service Port by plugging an Ethernet cable into Eth0 or Eth1.
  • Page 35: Modstat Tab

    Fully qualified domain name 5. Click Save. Controller Information Clear Counts/Logs Clears Reset counters and the three message history fields from the Module Status. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 36: Ports Tab

    End of Network Command Selection for End of Network termination. Protocol Select BACnet MSTP Active Protocol Indicates the active protocol on Port S1 Configuration. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 37: Bacnet Tab

    Settings tab > Local Network Configuration. Check Allow Local Network Configuration from other devices on the local network for 24 hours and click Accept. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 38 Serial# The discovered devices are in order by serial number. NOTE To change how the rows are sorted, click a different column heading. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 39 (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide...
  • Page 40 The IP address, subnet mask, and default gateway fields are blank in the Ports and Local Network tabs. You can configure it in the Local Devices table. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide...
  • Page 41: To Communicate Through The Bacnet/Usb Service Port Network

    To communicate through the BACnet/USB Service Port network You can communicate with the TV-CRB-E2 Service Port through i-Vu® or Field Assistant using either the Carrier wireless service adapter or a USB cable. See Addressing the TV-CRB-E2 through the USB Service Port (page 6) to set up your connection to the web browser if you haven't already.
  • Page 42: Troubleshooting

    USB Service Port • Port communication firmware • Cycle power did not load properly • Port communication firmware is not running Invalid protocol selected (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 43 The Blink button on the router No action required Light on both the setup Local Network page has Blue Net and Sys been pressed (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 44 The Blink button on the router No action required Light on both the setup Local Network page has Blue Net and Sys been pressed (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 45: To Get A Module Status Report

    In the router setup interface through the Service Port—Click on the Modstat tab. See Appendix Module Status field descriptions (page 47). To get a Device Log If Carrier Technical Support instructs you to get the router's Device Log containing diagnostic information for troubleshooting: Select the TV-CRB-E2 in the i-Vu® Navigation tree.
  • Page 46: To Replace The Tv-Crb-E2'S Fuse

    Use the fuse puller to snap the new fuse into the fuse holder. Replace router’s cover. Replace the power connector. Verify that the LED on top of the router is lit. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 47: To Take The Tv-Crb-E2 Out Of Service

    Copy the newest driver and archive file to the root directory of a FAT32-formatted USB flash drive. NOTE To verify that you have the latest files, go to the Carrier Partner Community website. Compare the latest version to the TV-CRB-E2's driver in i-Vu®.
  • Page 48: Compliance

    CAUTION Any modifications made to this device that are not approved by Carrier will void the authority granted to the user by the FCC to operate this equipment.
  • Page 49 Gives the current status of the router's operation. See LEDs (page 38) for all possible System status conditions. Network status Gives the current status of the router's networks. See LEDs (page 38) for all possible conditions. (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 50 Gives the following information about the router's boards: hardware • Type and board numbers that are used internally by Carrier. The manufacture date and serial number. • The number of BACnet objects that were created in the device and the number of Number of BACnet those objects that are network visible.
  • Page 51 Important changes to this document are listed below. Minor changes such as typographical or formatting errors are not listed. Date Topic Change description Code* No changes yet * For internal use only (part no. TV-CRB-E2 ) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-up Guide All rights reserved.
  • Page 52 Carrier ©2024 · Catalog No. 11-808-1078-01 · 5/22/2024...
