Installation Instructions for the
TBXZ-3-42 Pipework Package, GOLD SD/GOLD CX 100/120
1. General
The pipework package is used for circulating a mixture of
water and glycol between two interconnected heat recov-
ery coils in a closed system.
The supply includes the following: The pipework package
is supplied complete with insulated sheet-metal casing,
pump, control valve with actuator, expansion vessel,
safety valve, manometer and shut-off cocks, thermom-
eters, filling valve and air purging valve.

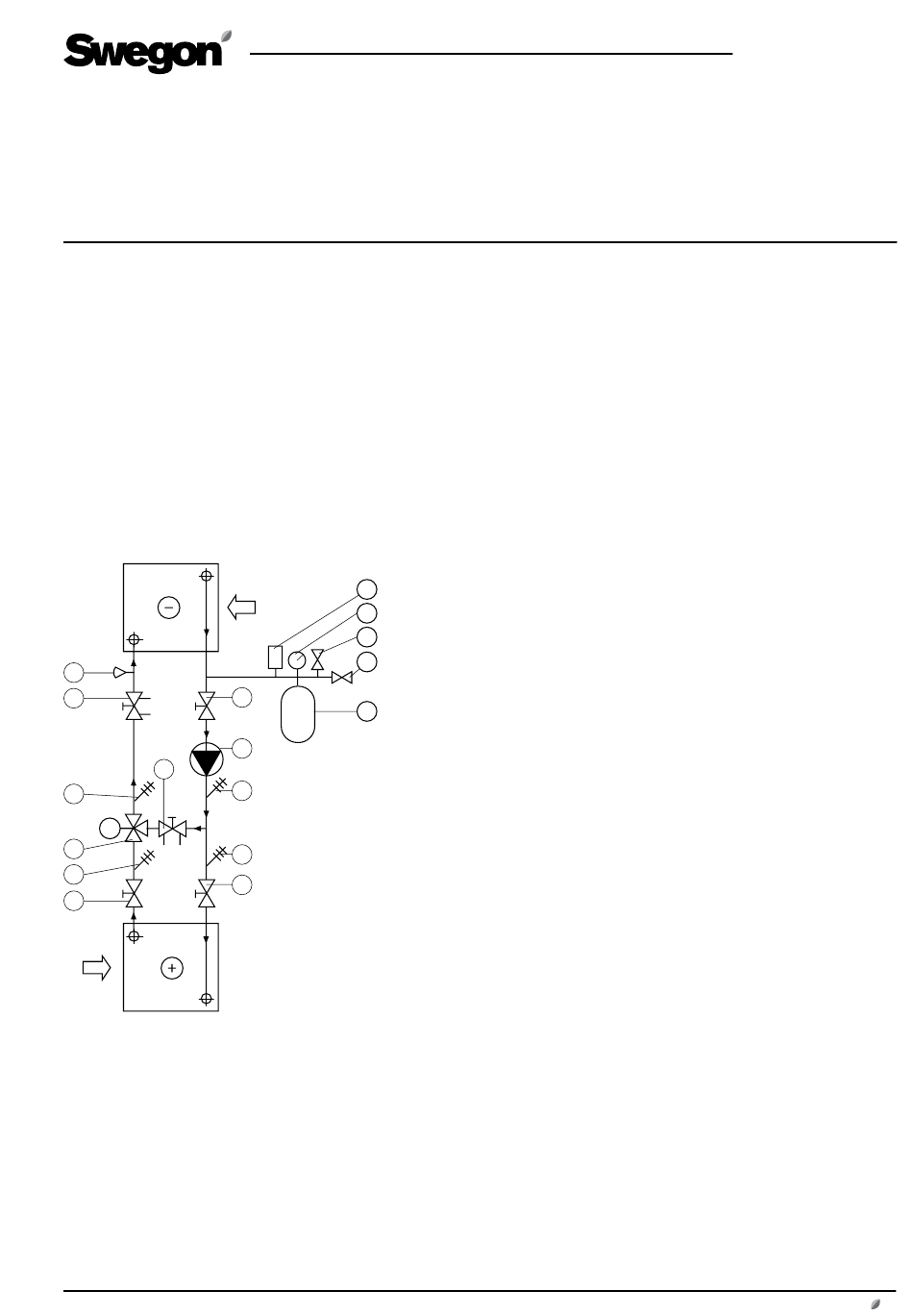

Basic circuit diagram
11
10
10
8
M
9
8
6
Registered design. The company reserves the right to make changes without prior notice.
1
2
3
4
6
5
7
1 Air purging valve
2 Manometer
8
3 Safety valve
4 Filling valve
5 Expansion vessel
8
6 Shut-off valve
7 Pump
6
8 Thermometer
9 Control valve with actuator
10 Adjustment valve
11 Temperature sensor
GB.TBXZ342.130915
