Vernier Go Direct ORP Manual

®
Go Direct ORP
(Order Code GDX-ORP)
Go Direct ORP measures the ability of a
solution to act as an oxidizing agent or
reducing agent. ORP stands for oxidation-reduction potential. For example, ORP
electrodes are often used to measure the oxidizing ability of chlorine in
swimming pools, or to determine when the equivalence point has been reached
in an oxidation-reduction reaction.
Note: Vernier products are designed for educational use. Our products are not
designed nor are they recommended for any industrial, medical, or commercial
process such as life support, patient diagnosis, control of a manufacturing
process, or industrial testing of any kind.
What's Included

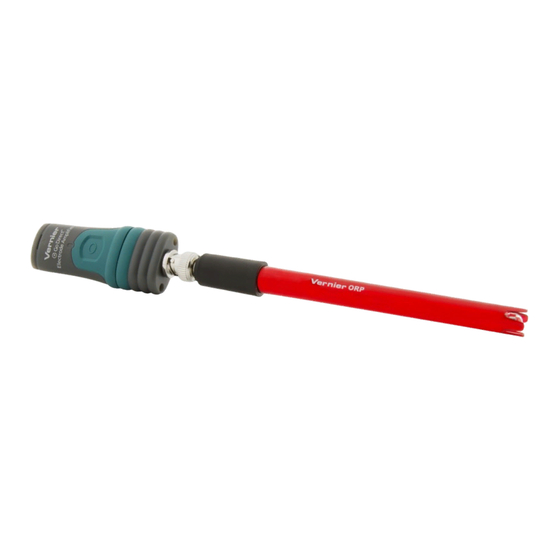

Go Direct ORP (Go Direct Electrode Amplifier connected to a Go Direct
l
ORP BNC Electrode)
Electrode storage bottle, containing pH 4/KCl solution
l
Micro USB Cable
l
Compatible Software
See
www.vernier.com/manuals/gdx-orp
Direct ORP.
Getting Started
Please see the following link for platform-specific connection information:
www.vernier.com/start/gdx-orp
Bluetooth Connection
1. Install Graphical Analysis 4 on
your computer, Chromebook™, or
mobile device. See
www.vernier.com/ga4 for software
availability.
2. Charge your sensor for at least
2 hours before first use.
3. Turn on your sensor by pressing
the power button once. The
®
Bluetooth LED will blink red.
4. Launch Graphical Analysis 4.
5. Click or tap Sensor Data
Collection.
6. Click or tap your Go Direct sensor
from the list of Discovered
Wireless Devices. Your sensor's ID
is located near the barcode on the
for a list of software compatible with Go
USB Connection
1. Install Graphical Analysis 4 on your
computer or Chromebook. If using
LabQuest 2, make sure LabQuest
App is up to date. See
www.vernier.com/ga4 for software
availability or
www.vernier.com/downloads to
update LabQuest App.
2. Connect the sensor to the USB port.
3. Launch Graphical Analysis 4 or turn
on LabQuest 2. You are now ready
to collect data.
sensor. The Bluetooth LED will
blink green when it is successfully
connected.
7. Click or tap Done to enter data-
collection mode.
Charging the Sensor
Connect Go Direct ORP to the included USB Charging Cable and any USB
device for two hours. Connecting Go Direct ORP to the electrode amplifier
during charging is optional.
You can also charge up to eight Go Direct ORP Sensors using our Go Direct
Charge Station, sold separately (order code: GDX-CRG).
Charging
Fully charged
Powering the Sensor
Turning on the sensor
Putting the sensor in sleep
mode
Connecting the Sensor
See the following link for up-to-date connection information:
www.vernier.com/start/gdx-orp
1
Blue LED is on steady while sensor is connected
to the Charging Cable or Charge Station.
Blue LED is off when charging is complete.
Press button once. Red LED indicator flashes
when unit is on.
Press and hold button for more than three
seconds to put into sleep mode. Red LED
indicator stops flashing when sleeping.
