Vernier Go Direct GDX-ODO Instruction Manual

®
Go Direct Optical
Dissolved Oxygen
(Order Code GDX-ODO)

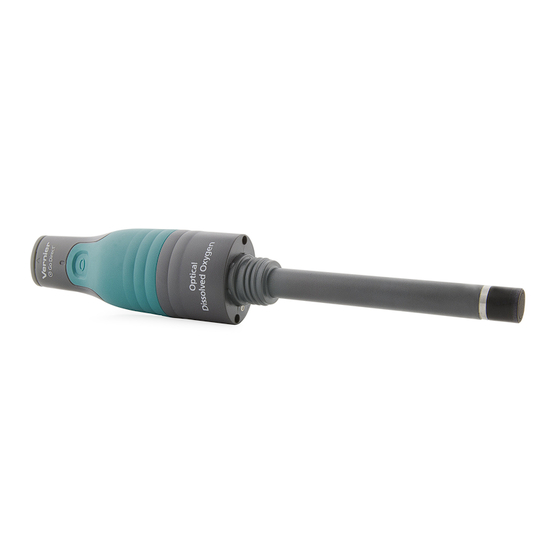

Go Direct Optical Dissolved Oxygen is a luminescence-based dissolved oxygen
probe that can also measure water temperature and atmospheric pressure. It is
actively measuring temperature and pressure, so there is no need for calibration.
This probe can be used in experiments to test water samples in the field or in the
laboratory.
Note: Vernier products are designed for educational use. Our products are not
designed nor are they recommended for any industrial, medical, or commercial
process such as life support, patient diagnosis, control of a manufacturing
process, or industrial testing of any kind.
What's Included
Go Direct Optical Dissolved Oxygen
l
Electrode Storage Bottle
l
Micro USB Cable
l
Compatible Software
See
www.vernier.com/manuals/gdx-odo
Go Direct Optical Dissolved Oxygen.
Quick Start: Vernier Graphical Analysis
1. Charge your sensor for at least 2 hours before first use.
2. Turn on your sensor. The LED will blink red.
3. Launch Graphical Analysis, then click
4. Select your sensor from the list. The sensor ID is located on the sensor label
near the bar code. Note: If you don't see a list of available sensors, click
. After selecting your sensor, click
WIRELESS
5. This is a multi-channel sensor. Click
channel(s) you want to use.
6. Click . You are now ready to collect data.
DONE
Using other Vernier data-collection apps or want to connect via
USB?
Visit
www.vernier.com/start-go-direct
Note: This sensor also works with LabQuest 2 and LabQuest 3; it does not work
with the original LabQuest.
Charging the Sensor
Connect Go Direct Optical Dissolved Oxygen to the included Micro USB Cable
and any USB device for two hours.
for a list of software compatible with
® ®
and Bluetooth
.
Sensor Data Collection
.
Pair
and select the
SENSOR CHANNELS
You can also charge up to eight Go Direct Optical Dissolved Oxygen probes using
our Go Direct Charge Station, sold separately (order code: GDX-CRG). An LED
on each Go Direct Optical Dissolved Oxygen indicates charging status.
Charging
Fully charged
Powering the Sensor
Turning on the sensor
Putting the sensor in sleep
mode
Connecting the Sensor
See the following link for up-to-date connection information:
www.vernier.com/start/gdx-odo
Connected and charging
Connected
Charging via USB,
connected via Bluetooth
wireless technology
Identifying the Sensor
When two or more sensors are connected, the sensors can be identified by tapping
or clicking Identify in Sensor Information.
Using the Product
1. Connect the probe following the steps in the Quick Start section of this user
manual.
2. Remove the storage bottle from the probe by unscrewing the lid and removing
the bottle and lid.
1
Blue LED on steady while sensor is connected to
the Micro USB Cable or Charging Station.
Blue LED is off when charging is complete.
Press button once. Red LED indicator flashes
when unit is on.
Press and hold button for more than three seconds
to put into sleep mode. Red LED indicator stops
flashing when sleeping.
Blue and Green LED solid when sensor is con-
nected to Graphical Analysis via USB and unit is
charging. (Green LED is obscured by the blue
one.)
Green LED solid when sensor is connected to
Graphical Analysis via USB and the unit is fully
charged. Green LED flashing when sensor is con-
nected to Graphical Analysis via Bluetooth wire-
less technology.
Blue LED is solid and green LED is flashing, but
the green flashing LED looks white because it is
overwhelmed by the blue.
