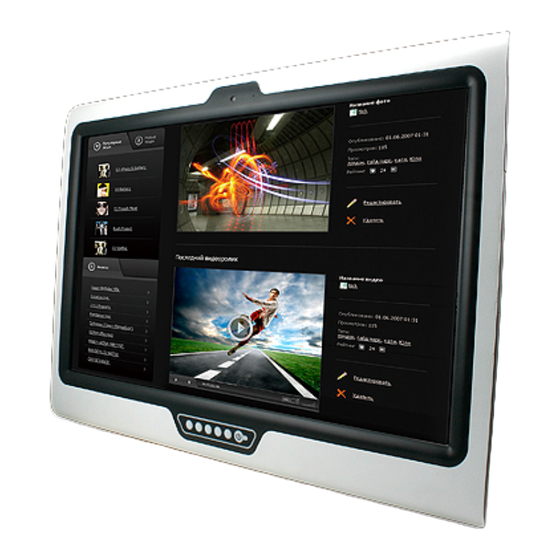

21.5" intel atom processor d2550 fanless plastic chassis touch panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PPC-2127
21.5" Intel® Atom™ Processor D2550 Fanless Plastic
Chassis Touch Panel PC
Quick Reference Guide
st
Ed – 10 March 2016
1
Copyright Notice
Copyright © 2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017P170A0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-2127 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology PPC-2127

Summary of Contents for Avalue Technology PPC-2127

  • Page 1 PPC-2127 21.5" Intel® Atom™ Processor D2550 Fanless Plastic Chassis Touch Panel PC Quick Reference Guide Ed – 10 March 2016 Copyright Notice Copyright © 2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017P170A0R...
  • Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 PPC-2127 Quick Reference Guide...

  • Page 3: Table Of Contents

    1.4.1 Front View ............................ 7 1.4.2 Rear View ............................. 7 System Dimensions ....................8 Hardware Configuration ..................... 9 PPC-2127 connector mapping................10 2.1.1 External Serial port 1 connector (COM1) ................... 10 Installing Hard Disk ....................11 PPC-2127 Quick Reference Guide...

  • Page 4: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x PPC-2127 Panel PC  1 x CD/DVD-ROM contains the followings: ...

  • Page 5: System Specifications

    LAN Port 2 x Intel® 82574L PCIe Gigabit Ethernet (1 For Optinal) Wireless LAN Antenna PCB Antenna 2.4/5.0GHz-IPEX Ø 1.13mm (Optinal) Expansion Slots 1 x MiniPCIe Slot Mechanical Power Type AT/ATX Power Connector Lockable DC plug PPC-2127 Quick Reference Guide...
  • Page 6 Reliability EMI Test Class B Safety CE / FCC Operating 0°C ~ 40°C Temperature Operating Humidity 10% to 95% @ 40°C, Non-condensing Storage Temperature -10°C ~ 50°C Note: Specifications are subject to change without notice. 6 PPC-2127 Quick Reference Guide...

  • Page 7: System Overview

    DB-9 male connector Serial port connector 2 x USB2.0 connector DC IN DC Power-in connector HDD LED LAN1/2 RJ-45 Ethernet connector 1/2 Power LED RESET Reset button Speaker Out Speaker Out audio jack HDMI HDMI connector PPC-2127 Quick Reference Guide...

  • Page 8: System Dimensions

    PPC-2127 1.5 System Dimensions (Unit: mm) 8 PPC-2127 Quick Reference Guide...

  • Page 9: Hardware Configuration

    Quick Reference Guide 2. Hardware Configuration Please refer to EBM-CDV Quick Installation Guide or User’s Manual.  Note: If you need more information, please visit our website: http://www.avalue.com.tw PPC-2127 Quick Reference Guide...

  • Page 10: Ppc-2127 Connector Mapping

    2.1 PPC-2127 connector mapping 2.1.1 External Serial port 1 connector (COM1) RS-232 Signal Signal Note: COM1 RS-232/422/485 mode select by SW1 (RS-232 is default). RS-422 Signal Signal TX1- RX1+ TX1+ RX1- RS-485 Signal Signal TX1- TX1+ 10 PPC-2127 Quick Reference Guide...

  • Page 11: Installing Hard Disk

    Step 1. Unfasten 4 screws from the rear middle side of your panel. Step 2. Remove the HDD service window. Step 3. Slide HDD into its bracket until properly seated Step 4. Secure HDD by means of 4 screws. PPC-2127 Quick Reference Guide 11...
