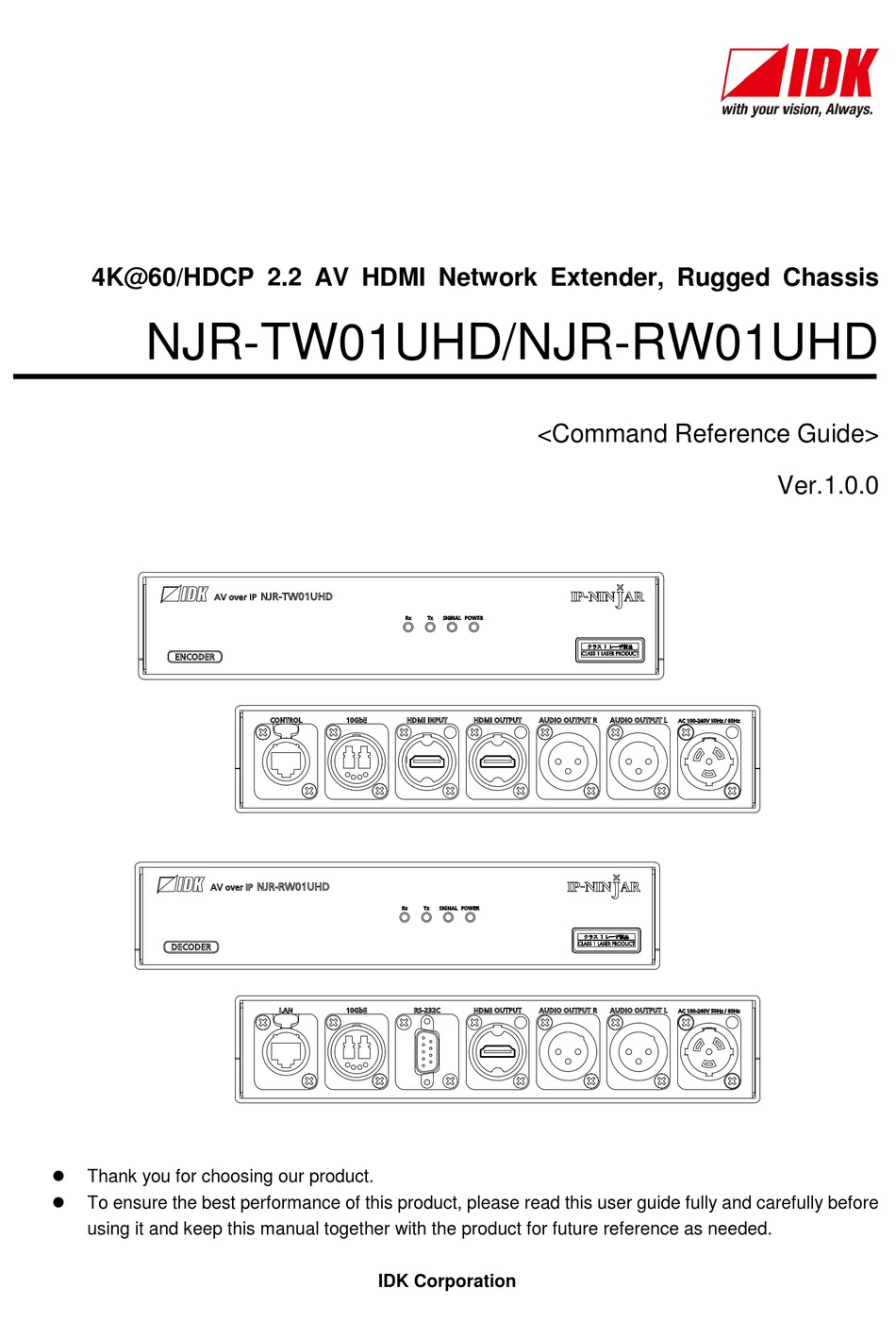

4K@60/HDCP 2.2 AV HDMI Network Extender, Rugged Chassis
NJR-TW01UHD/NJR-RW01UHD
Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.
<Command Reference Guide>
IDK Corporation
Ver.1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NJR-TW01UHD and is the answer not in the manual?

Questions and answers

Related Manuals for IDK NJR-TW01UHD

Summary of Contents for IDK NJR-TW01UHD

  • Page 1 4K@60/HDCP 2.2 AV HDMI Network Extender, Rugged Chassis NJR-TW01UHD/NJR-RW01UHD <Command Reference Guide> Ver.1.0.0  Thank you for choosing our product.  To ensure the best performance of this product, please read this user guide fully and carefully before using it and keep this manual together with the product for future reference as needed.
  • Page 2 HDMI Licensing Administrator, Inc. in the United States and other countries.  Connection Reset and IP NINJAR are registered trademarks of IDK Corporation in Japan.  All other company and product names mentioned in this manual are either registered trademarks or...
  • Page 3  Some information contained in this Command guide such as exact product appearance, diagrams, menu operations, communication commands, and so on may differ depending on the product version.  This Command guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...

  • Page 4: Table Of Contents

    NJR-TW01UHD/NJR-RW01UHD Command Guide Table of Contents How to read this Guide ..........................5 About this Guide ............................7 Communication configuration and Specifications ..................8 RS-232C communication ........................8 3.1.1 RS-232C connector specification ....................8 3.1.2 RS-232C communication specification ..................8 LAN communication ..........................

  • Page 5: How To Read This Guide

    The NJR-TW01UHD LAN models and NJR-RW01UHD control commands from IP-NINJAR Configurator or NJR-CTB via LAN. The both NJR-TW01UHD and NJR-RW01UHD do not support command control of RS-232C communication. The RS-232C communication is for command transmission (pass through). Perform command control of NJR-TW01UHD (RS-232C model) from NJR-RW01UHD or IP-NINJAR device connected to 10 GbE switch.
  • Page 6 NJR-TW01UHD/NJR-RW01UHD Command Guide [Table 1.1] Document for IP-NINJAR products Model User Guide Command Guide NJR-T01UHD/NJR-R01UHD NJR-T01UHD/NJR-R01UHD NJR-T01UHD/NJR-R01UHD User Guide Command Guide NJR-TW01UHD/NJR-RW01UHD NJR-TW01UHD/NJR-RW01UHD NJR-TW01UHD/NJR-RW01UHD User Guide Command Guide NJR-T01SDI NJR-T01SDI NJR-T01SDI User Guide Command Guide NJR-T04HD/NJR-R04HD NJR-T04HD/NJR-R04HD NJR-T04HD/NJR-R04HD User Guide...

  • Page 7: About This Guide

    NJR-TW01UHD/NJR-RW01UHD Command Guide 2 About this Guide Communication commands enable the following main operations: ・ Setting input, output ・ Setting audio ・ Setting EDID ・ Displaying information...

  • Page 8: Communication Configuration And Specifications

    NJR-TW01UHD/NJR-RW01UHD Command Guide 3 Communication configuration and Specifications 3.1 RS-232C communication The NJR-TW01UHD (RS-232C model) and NJR-RW01UHD support command transmission (pass through) via RS-232C communication. 【4.5.2.5 Setting RS-232C】 3.1.1 RS-232C connector specification RS-232C pin assignments: NJR-W01UHD Control device Pin No.

  • Page 9: Lan Communication

    The NJR-TW01UHD (LAN model) and NJR-RW01UHD can be controlled from IP-NINJAR Configurator or NJR-CTB via LAN. Make sure not to form a loop by the NJR-TW01UHD (LAN model)/NJR-RW01UHD when connecting a LAN cable to the NJR-TW01UHD (LAN model)/NJR-RW01UHD. The NJR-TW01UHD (LAN model)/NJR-RW01UHD constantly send broadcast packet in order to notify status.

  • Page 10: Lan Connector Specification

    Pin assignment of the LAN connector is as follows. Since Auto MDI/MDI-X that distinguishes and switches straight/cross cables automatically is supported, extra care is not necessary to connect the NJR-TW01UHD (LAN model)/NJR-RW01UHD to PC, HUB or the like. Signal name Pin No.

  • Page 11: Lan Communication Specification

    3.3.1 Setting LAN communication Follow the procedure below to control the NJR-TW01UHD (LAN model) or NJR-RW01UHD: (1) Connect the control device to the LAN connector of the NJR-TW01UHD (LAN model) or NJR-RW01UHD through a LAN cable (2) Start the IP-NINJAR Configurator in the control device...
  • Page 12 Audio A : Analog audio Step (2) Step (1) LAN cable PC for control Step (3) * PCs can control both NJR-TW01UHD (LAN model) and NJR-RW01UHD by connecting to Communication either NJR-TW01UHD or NJR-RW01UHD. command [Fig. 3.3] LAN communication setup ①...

  • Page 13: External Control From Njr-Ctb

    NJR-RW01UHD The LAN connector of NJR-CTB should be connected to the LAN connector of NJR-TW01UHD (LAN model)/NJR-RW01UHD or the 10 GbE switch PC for control should be connected to the MAINTENANCE connector of NJR-CTB or the LAN connector of NJR-TW01UHD (LAN supported model)/NJR-RW01UHD...

  • Page 14: Command

    NJR-TW01UHD/NJR-RW01UHD Command Guide 4 Command 4.1 Summary A command consists of “@” (“40” in hexadecimal), 3 or 4 one-byte alphabetical characters (upper and lower cases) followed by parameters (one-byte numbers). For some commands, multiple parameter values can be specified. Processing is executed by sending a delimiter at the end of the command.

  • Page 15: Command List

    NJR-TW01UHD/NJR-RW01UHD Command Guide 4.2 Command list ■ Error status Command Function Page @ERR Error status ■ Setting input Command Function Page @GDT / @SDT No-signal input monitoring @GHE / @SHE HDCP input enabled/disabled ■ Setting output Command Function Page @GDM / @SDM...
  • Page 16 NJR-TW01UHD/NJR-RW01UHD Command Guide ■ Information Command Function Page @GSS I/O status @GES Monitor EDID @GIV Version...

  • Page 17: Setting Items

    NJR-TW01UHD/NJR-RW01UHD Command Guide 4.3 Setting items Some setting items can be controlled via commands/GUI operation; the others cannot be controlled. [Table 4.1] Available setting method Command: Command input, GUI: GUI operation, WEB&C: WEB browser and command input, No: Not supported, -: N/A...

  • Page 18: Parameter Input Format

    Parameter input formats are common for each setting. If a command is input from the LAN connector of the NJR-TW01UHD (LAN model) or NJR-RW01UHD using the IP-NINJAR Configurator, “1” (fixed) is specified to “ch” (channel) because only one NJR-TW01UHD (LAN model) or NJR-RW01UHD can be controlled.
  • Page 19 NJR-TW01UHD/NJR-RW01UHD Command Guide Output channel 1 Input channel 1 Fiber optic cables NJR-RW01UHD NJR-TW01UHD @SAM,2,1,1,1 Input channel 64 Output channel 64 NJR-RW01UHD NJR-TW01UHD 10 GbE switch @SAM,1,64,1,1 LAN cable LAN cable PC for control NJR-CTB [Fig. 4.2] Command input from NJR-CTB...

  • Page 20: Details Of Commands

    NJR-TW01UHD/NJR-RW01UHD Command Guide 4.5 Details of commands 4.5.1 Error status @ERR Error status Description Response in case the command is not executed Response @ERR, error Parameter error: Error status 1 = Erroneous parameter format or value 2 = Undefined command or wrong format...

  • Page 21: Basic Setting

    NJR-TW01UHD/NJR-RW01UHD Command Guide 4.5.2 Basic setting 4.5.2.1 Setting input @GDT / @SDT No-signal input monitoring Getting Command @GDT, device, ch, port Response @GDT, device, ch, port, time Setting Command @SDT, device, ch, port, time Response @SDT, device, ch, port, time...
  • Page 22 NJR-TW01UHD/NJR-RW01UHD Command Guide @GHE / @SHE HDCP input enabled/disabled Getting Command @GHE, device, ch, port Response @GHE, device, ch, port, hdcp Setting Command @SHE, device, ch, port, hdcp Response @SHE, device, ch, port, hdcp Parameter device: Model “1” fixed ch: Input setting 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the IP-NINJAR Configurator, “1”...

  • Page 23: Setting Output

    : YCbCr4:4:4 output Getting Command @GDM,2,1,1 example Response @GDM,2,1,1,0 Description Getting the output mode of NJR-RW01UHD Channel 1 AUTO Setting Command @SDM,1,1,2,4 example Response @SDM,1,1,2,4 Description Setting the output mode of Channel1’s HDMI output connector (NJR-TW01UHD) to YCbCr4:4:4 output Completed － Remarks...
  • Page 24 Response @GEN,2,1,1,1 Description Getting the HDCP output of NJR-RW01UHD Channel 1 ALWAYS Setting Command @SEN,2,1,1,2 example Response @SEN,2,1,1,2 Description Setting the HDCP output of NJR-RW01UHD Channel 1 to HDCP INPUT ONLY Completed Remarks The NJR-TW01UHD does not support this command.
  • Page 25 (For example, if you set it to 2955, the monitoring time is set to 2000 ms.) Getting Command @GHM,1,1,2 example Response @GHM,1,1,2,0 Description Getting the hot plug ignoring duration of NJR-TW01UHD Channel 1 OFF (Not ignoring request signals) Getting Command @GHM,2,1,1 example Response @GHM,2,1,1,2000...

  • Page 26: Audio Setting

    0 = Mute OFF [Default], 1 = Mute ON Getting Command @GAM,1,1,1 example Response @GAM,1,1,1,0 Description Getting the audio mute of NJR-TW01UHD Channel 1 Mute OFF Setting Command @SAM,1,1,1,0 example Response @SAM,1,1,1,0 Description Setting the audio mute of NJR-TW01UHD Channel 1 to OFF Completed － Remarks...
  • Page 27 Response @SAAS,2,1,1,0,1 Description Setting analog input audio to be output from the analog audio output connector of Channel 1 Completed Remarks The NJR-TW01UHD does not support this command. This command can be input only via the NJR-CTB command server.

  • Page 28: Setting Edid

    NJR-TW01UHD/NJR-RW01UHD Command Guide 4.5.2.4 Setting EDID @GVF / @SVF EDID resolution Getting Command @GVF, device, ch, port Response @GVF, device, ch, port, resolution Setting Command @SVF, device, ch, port, resolution Response @SVF, device, ch, port, resolution Parameter device: Model “1” fixed...
  • Page 29 NJR-TW01UHD/NJR-RW01UHD Command Guide @RME Copying EDID Setting Command @RME, device, ch, reserved, number Response @RME, device, ch, reserved, number Parameter device: Model “1” fixed ch: Input setting 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the IP-NINJAR Configurator, “1” is set (fixed).
  • Page 30 NJR-TW01UHD/NJR-RW01UHD Command Guide @GDI / @SDI Deep Color input Getting Command @GDI, device, ch, port Response @GDI, device, ch, port, color Setting Command @SDI, device, ch, port, color Response @SDI, device, ch, port, color Parameter device: Model “1” fixed ch: Input setting 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the IP-NINJAR Configurator, “1”...
  • Page 31 NJR-TW01UHD/NJR-RW01UHD Command Guide @GAF / @SAF Audio format Getting Command @GAF, device, ch, port Response @GAF, device, ch, port, format_1, frequency_1 (, format_2, frequency_2･･･) Setting Command @SAF, device, ch, port, format_1, frequency_1 (, format_2, frequency_2･･･) Response @SAF, device, ch, port, format_1, frequency_1 (, format_2, frequency_2･･･)
  • Page 32 NJR-TW01UHD/NJR-RW01UHD Command Guide @GSP / @SSP Speaker configuration Getting Command @GSP, device, ch, port Response @GSP, device, ch, port, number, speaker_1 (, speaker_2･･･) Setting Command @SSP, device, ch, port, number (, speaker_1, speaker_2･･･) Response @SSP, device, ch, port, number (, speaker_1, speaker_2･･･)
  • Page 33 NJR-TW01UHD/NJR-RW01UHD Command Guide @GSP / @SSP Speaker configuration (Cont’d) Getting Command @GSP,1,1,1 example Response @GSP,1,1,1,6,0,1,2,3 Description Getting the speaker configuration of Channel 1 Six speakers are used: Front Left/Right, Low Frequency Effect, Front Center, Rear Left/Right Setting Command @SSP,1,1,1,8 example...

  • Page 34: Setting Rs-232C

    @SCTB, device, ch, reserved, baudrate, databit, stopbit, parity Response @SCTB, device, ch, reserved, baudrate, databit, stopbit, parity Parameter device: Model 1 = NJR-TW01UHD (RS-232C model), 2 = NJR-RW01UHD ch: Channel 1 to 512 = Channel 1 to Channel 512 reserved: Reservation “1” fixed...

  • Page 35: Setting Lan

    - Default gateway : 192.168.3.254 Setting Command @SIP,1,1,1,1,192.168.3.2,255.255.255.0,192.168.3.254 example Response @SIP,1,1,1,1,192.168.3.2,255.255.255.0,192.168.3.254 Description Setting the LAN setting of NJR-TW01UHD (LAN model) Channel 1 as follows: - Mode : Static - IP address : 192.168.3.2 - Subnet mask : 255.255.255.0 - Default gateway : 192.168.3.254...
  • Page 36 00 to FF = 8 bit (in hex) x 6 combinations Getting Command @GMC,1,1,1 example Response @GMC,1,1,1,D88039A6D9DF Description Getting the MAC address of NJR-TW01UHD (LAN model) Channel 1 D8:80:39:A6:D9:DF Remarks This command can be input only via the NJR-CTB command server.

  • Page 37: Advanced Setting

    @CLRC, device, ch, reserved Response @CLRC, device, ch, reserved Parameter device: Model 1 = NJR-TW01UHD (LAN model), 2 = NJR-RW01UHD ch: Channel 0 = All channels, 1 to 512 = Channel 1 to Channel 512 reserved: Reservation “1” fixed Setting...

  • Page 38: Information

    @GSS, device, ch, port, mode, status_1 (, status_2, status_3･･･) Parameter device: Model 1 = NJR-TW01UHD, 2 = NJR-RW01UHD ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the IP-NINJAR Configurator, “1” is set (fixed).
  • Page 39 LPCM signal is input, which returns the sampling frequency. COMPRESSED Compressed audio signal (such as Dolby Digital and AUDIO DTS) is input (Because the NJR-TW01UHD does not recognize detailed formats, “COMPRESSED AUDIO” is sent to all compressed audios). NO AUDIO No signal is input.
  • Page 40 Response @GSS,1,1,1,0,H30,1920 x 1080p 60Hz,LINEAR PCM 48kHz, HDCP 1.4 ON Description Getting all input statuses of NJR-TW01UHD Channel 1 - Input signal type : 30-BIT COLOR HDMI signal - Video input signal : 1080p 60Hz - Audio input signal : LPCM 48kHz - HDCP : 1.4...
  • Page 41 @GES, device, ch, port, mode, status_1 (, status_2, status_3･･･) Parameter device: Model 1 = NJR-TW01UHD, 2 = NJR-RW01UHD ch: Output channel 1 to 512 = Output channel 1 to Output channel 512 If a command is input from the IP-NINJAR Configurator, “1” is set (fixed).
  • Page 42 NJR-TW01UHD/NJR-RW01UHD Command Guide @GES Monitor EDID (Cont’d) Parameter *4 For audio support, sampling frequency, bit length, the number of channels, and compressed audio AUDIO NOT A sink device that does not support audio signal is SUPPORT connected. LINEAR PCM- A sink device supporting audio signal is connected.
  • Page 43 If a command is input from the IP-NINJAR Configurator, “1” is set (fixed). reserved: Reservation “1” fixed id : Model number ver : Firmware version Getting Command @GIV,1,1,1 example Response @GIV,1,1,1,NJR-TW01UHD,1.00 Description Getting the product information of NJR-TW01UHD Channel 1 - Model number : NJR-TW01UHD - Firmware version : 1.00 － Remarks...
  • Page 44 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-259-6920 FAX: +81-46-259-6930 Email: info@arvanics.com URL: http://www.arvanics.com Information in this document is subject to change without notice. ©2019 IDK Corporation, all rights reserved. All trademarks mentioned are the property of their respective owners.
