1.4.1.2

For the Rear of the System

The buckle end of the green buckle strap (No. 2) that is used at the top crossbar of
each rear door measures approximately 17.0 in. (43.2 cm). The other end that used to
hold the cables measures approximately 12.0 in. (30.5 cm).
1. Attach the green buckle strap (No. 2) to the top crossbar on the hinged side of the
cabinet door on the left (
a. Insert the 17.0 in. (43.2 cm) end of the strap, buckle facing toward you,
underneath and over the crossbar, and insert the end through the buckle.
b. Loosely secure the strap.
This strap should be pushed close to the hinged side of the door to retain proper
tension when the cables are held during maintenance.
2. Attach the green buckle strap (No. 2) to the top crossbar on the hinged side of the
cabinet door on the right (
a. Insert the 17.0 in. (43.2 cm) end of the strap, buckle facing toward you,
underneath and over the crossbar, and insert the end through the buckle.
b. Loosely secure the strap.
This strap should be pushed close to the hinged side of the door to retain proper
tension when the cables are held during maintenance.

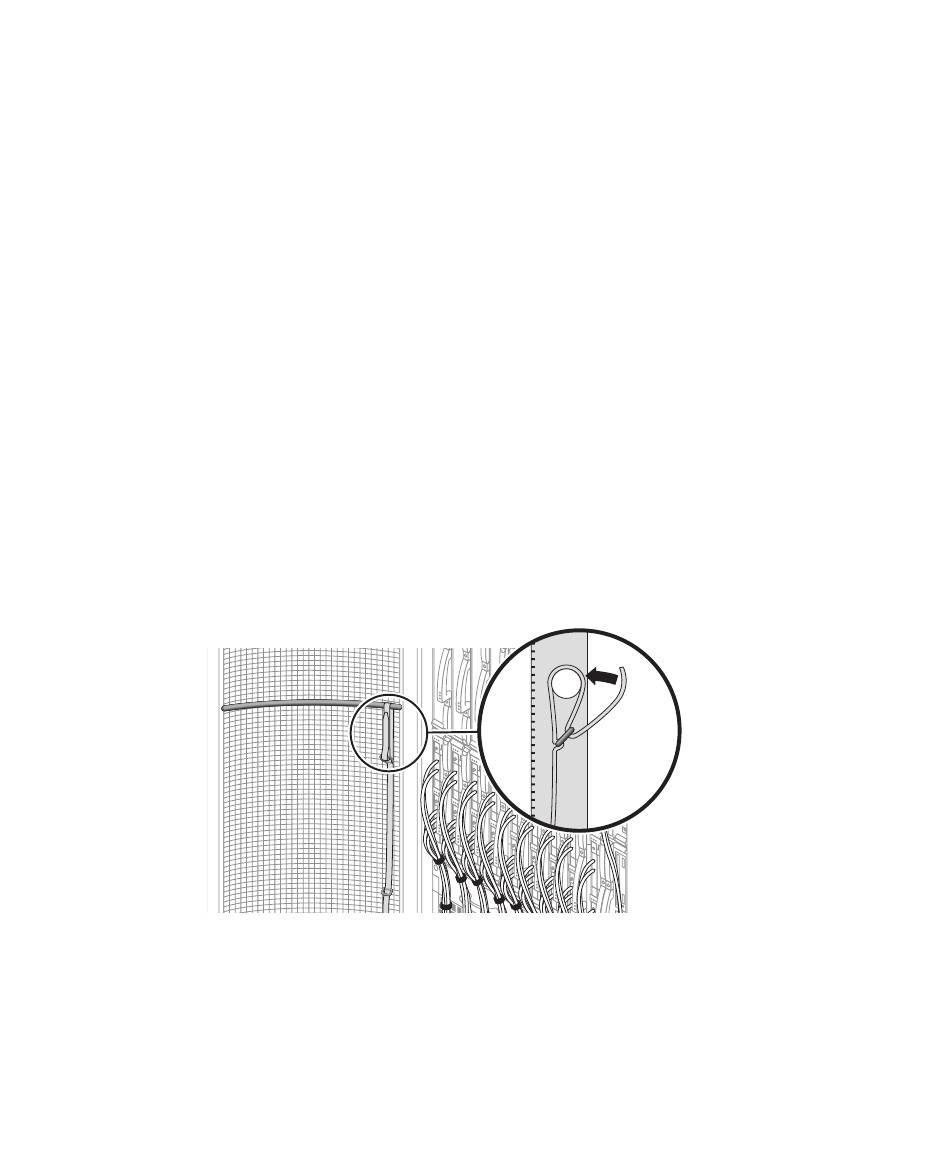

FIGURE 1-5
1-8 Cable Management Guide • July 2005
FIGURE 1-5
FIGURE 1-5
Rear door maintenance strap
).
).
No. 2
