Installing the Permanent Cable Straps

1. Open the cabinet door.
2. Secure the black cable hanger strap with tie wrap (No. 3) to the cutouts of the air
plenum using the tie wrap (
These straps should hang directly below each I/O board to accommodate the
cables hanging from each board.
.

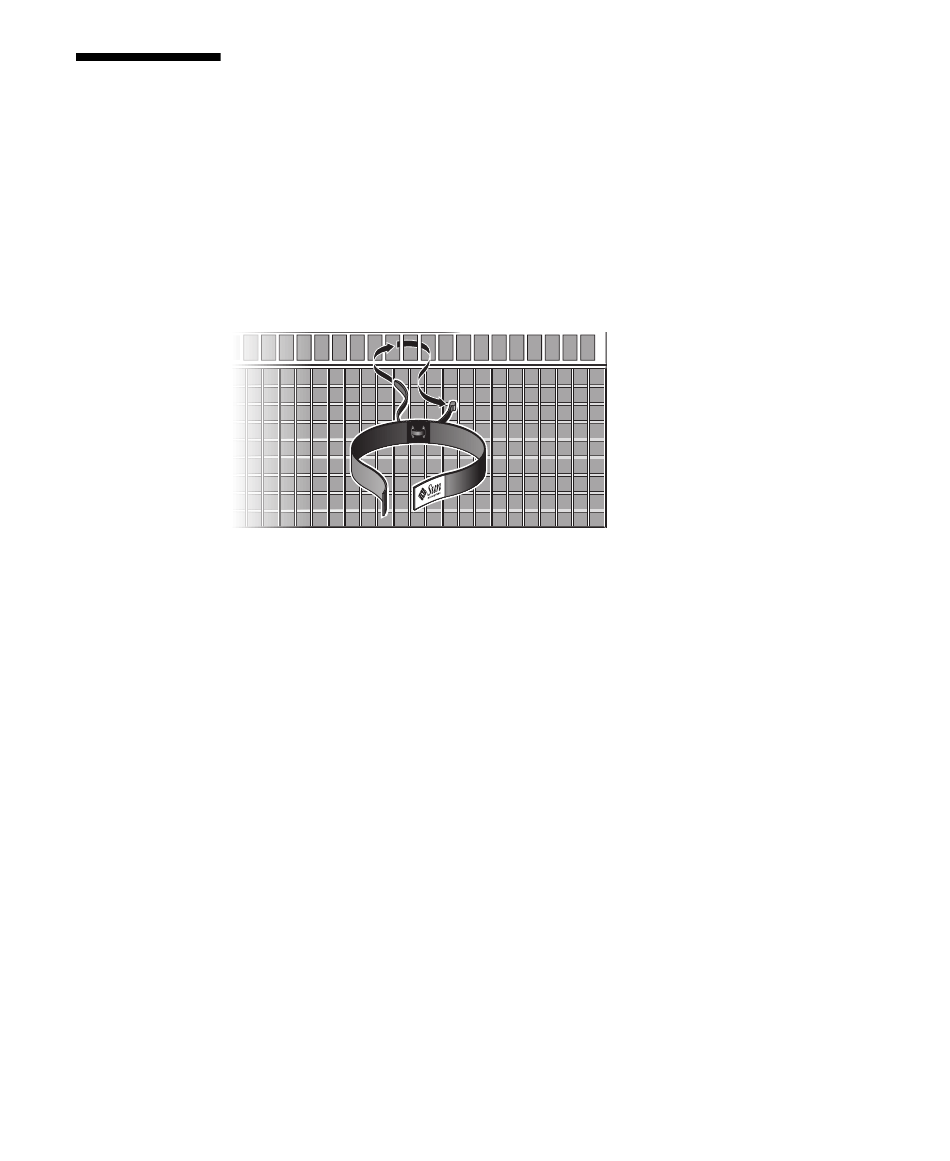

FIGURE 1-1
3. Use side-cutting pliers to cut off the ends of the tie wraps at the air plenum.
FIGURE 1-1
Black Cable Hanger Strap With Tie Wrap
)
at Air Plenum
