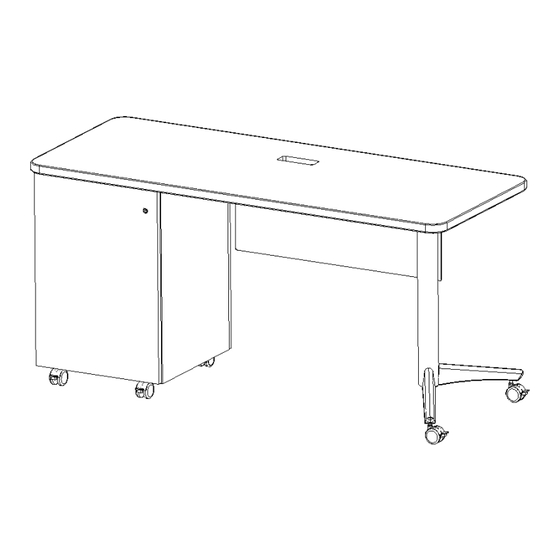

National Maneuver Educational Desk Series Assembly Instruction

Unpack all the boxes and locate the hardware kits. The kits will be attached to a
1
streamer that says hardware. The caster stems will need to be pressed into the casters.
See Figure 1, insert the stem into the caster and press together using a pair of channel
lock pliers. The casters for the mobile pedestal will screw into the inserts on the bottom
panel, make sure to place the flat washer provided on the stem like shown in Figure 2.
Place the locking casters towards the open front, front door side or drawer front side.
Place the non-locking casters towards the rear back panel. Next fasten the hex jam nut
and flat washer to the locking caster stems, see Figure 2 below. Now fasten them into
the feet of the metal Y-base.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call National Customer Service
Figure 1
Figure 2
Assembly Instruc on
Maneuver Educational
Desk Series
Recommend Tools
• Tape measure
• T-Square or straight edge
• Channel lock pliers
• Power drill w/ screw bits
• Pencil
Telephone 800.482.1717
Fax 812.482.8800
www.NationalOfficeFurniture.com
Part # 2878788
Rev A
