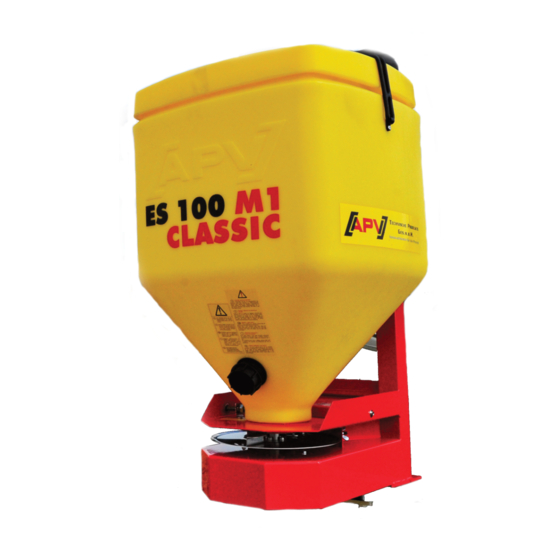

- Page 1 Original operating manual ES 100 M1 Classic Read carefully before initial operation! Version: 06/2019, V2.2 Order no.: 00601-3-507...
- Page 2 Only then can one be satisfied both with the implement and oneself. These operating instructions aim to achieve this. Leipzig-Plagwitz 1872 Original operating manual ES 100 M1 Classic...
-
Page 3: Table Of Contents
14.2 Pick-up mounting bracket ................... 26 14.3 Quad (ATV) bracket .................... 26 14.4 Height-adjustable quad bracket ................. 27 14.5 Precision dispersion plate ................... 27 14.6 Calibration bag ....................27 15 My idea ........................28 16 Index......................... 29 Original operating manual ES 100 M1 Classic... -
Page 4: Ec Declaration Of Conformity
ISO 13857 Safety of machinery; Safety distances If applicable: number / title / current version Your CE contact person at APV is Mr. Jürgen Schöls. He can be reached at the telephone number +43(0)2913-8001. Dallein, 06/2019 City, Date Signature Ing. -
Page 5: Identification Of The Implement
For spare parts orders • To order maintenance and repair work APV - Technische Produkte GmbH HEADQUARTERS Telephone: +43 (0) 2913 8001 Dallein 15 Fax: +43 (0) 2913 8002 A-3753 Hötzelsdorf Email: service@apv.at AUSTRIA Web: www.apv.at Original operating manual ES 100 M1 Classic... -
Page 6: Warranty
• The applicable accident prevention regulations as well as the other generally safety-related, occupational health and road traffic regulations must also be observed. • The manufacturer is not liable for any damage resulting from unauthorised modifications and the use of components and auxiliary parts. Original operating manual ES 100 M1 Classic... -
Page 7: General Safety-Related Instructions And Accident Prevention Regulations
• When driving in curves, take account of the wide radius and/or the centrifugal mass of the implement! • The implement may only be operated when all of the protective devices are installed and in safety position! Original operating manual ES 100 M1 Classic... -
Page 8: Mounted Implements
• Before mounting and dismounting implements on the three-point linkage, move the operating devices into the position that excludes unintentional lifting or lowering! • For three-point mounting, the mounting categories of the tractor and the implement must match or be adapted! Original operating manual ES 100 M1 Classic... -
Page 9: Maintenance
Maintenance and cleaning work must be carried out with the implement lowered, shut down and secured to prevent it being switched on again. Working under the implement is forbidden. Original operating manual ES 100 M1 Classic... -
Page 10: Safety Signs
Risk of injury due to moving parts. observe the safety distance! Switch off the implement and disconnect the power supply when handling! Hot surface! Maintain a safe distance from rotating Do not touch! implement parts! Original operating manual ES 100 M1 Classic... -
Page 11: Technical Data
Power consumption of the motor: 25 amps when starting, 14 amps during normal operation Speed range max.: 2600-3000 rpm Mount category: Cat. II Hole pattern on the counter plate: Units in mm Fig.: 2 Original operating manual ES 100 M1 Classic... -
Page 12: Basic Information
With the type of mounting shown, you bolt on the tractor linkage drawbar between your ES 100 M1 Classic and the supplied counter plate. You should use bolts with a diameter of 10 mm. Bolt the top link bracket onto the top link plate and fix the top link of your towing vehicle with the pin. -
Page 13: Attachment Of The Control Box
The 4-pin cable from the control unit is also connected to the control box. CAUTION: If these instructions are not observed, damage may be caused to the control box! IMPORTANT NOTE: for safety-related reasons, disconnect the controls after using the implement! Original operating manual ES 100 M1 Classic... -
Page 14: Control Box
Quality for Professionals Control box The ES 100 M1 CLASSIC has a control box with a hermetically sealed keyboard foil. On the bottom side, a 2-pin plug (connection to the battery) and a 4-pin plug (connection of the spreader to the control box) are installed. -
Page 15: Regulation Of The Seed Rate
9. Repeat this procedure until you have reached the desired spread rate. 10. After beginning operation, check the spreading on the field. In particular, check the forward speed, the spread rate and distribution across the area. Original operating manual ES 100 M1 Classic... -
Page 16: Emptying The Hopper
Seal the cone again with silicone to prevent the Fig.: 10 penetration of water. TIP: To remove even the last seed residues, clean out the hopper with compressed air. Alternatively, you can remove the seed residues with an industrial vacuum cleaner. Original operating manual ES 100 M1 Classic... -
Page 17: Settings
The spreader must be mounted at least 1.5 m above the ground to achieve optimal spreading density and the maximum working width. NOTE: When the ES 100 M1 Classic is mounted on implements with small working widths and the seed should be spread directly in/in front of the roller, the spreader can also be slanted slightly downwards. -
Page 18: Spreading Disc, Lateral Distribution, Throwing Vanes
If you have decided to use a precision dispersion plate (accessory), install it at the front on the ES 100 M1 Classic. This is suitable for small working widths (up to 4 m) and causes the seed to be spread exactly on the roller, for example. -
Page 19: Setting Charts
5.0 5.3 6.6 7.2 6.0 7.5 White clover White clover Trèfle Blanc Trifolium repens Working width 3.0 m 6.0 m 12.0 m Speed Forward speed km/h Slider opening 10 kg/ha 1.3 1.5 1.8 2.0 1.6 1.9 Original operating manual ES 100 M1 Classic... - Page 20 3.0 m 6.0 m 15.0 m Speed 1 – 2 8 – 9 Forward speed km/h Slider opening 15 kg/ha 2.0 2.3 2.5 3.0 2.8 3.5 25 kg/ha 3.0 3.3 4.0 5.5 4.0 4.8 Original operating manual ES 100 M1 Classic...
- Page 21 Forward speed km/h Slider opening 10 kg/ha 2.7 3.0 3.3 3.7 2.8 3.1 20 kg/ha 3.7 4.0 4.5 5.2 4.2 4.8 Throwing vane 1 normal both normal both normal settings 1 half forward Original operating manual ES 100 M1 Classic...
- Page 22 3.0 m 6.0 m 9.0 m Speed 5 – 6 8 – 9 Forward speed km/h Slider opening 15 kg/ha 1.6 1.8 2.0 3.5 1.9 2.5 20 kg/ha 1.8 2.2 2.8 3.5 2.5 3.2 Original operating manual ES 100 M1 Classic...
- Page 23 20.0 m 24.0 m Speed 5 – 6 7 – 8 8 – 9 9 – 9 Forward speed km/h Slider opening 5 kg/ha 4.5 3.2 3.6 4.5 3.3 4.1 4.8 3.6 4.5 5.5 Original operating manual ES 100 M1 Classic...
-
Page 24: Error Messages
Check the cable routing Motor cable break and the motion of the "E" Error flashes on the spreading disc. display. Check the cable routing Motor blocked (=stiff) and the motion of the spreading disc. Original operating manual ES 100 M1 Classic... -
Page 25: Maintenance And Care
The spreader must be stored in a dry place protected from weather conditions to ensure that it remains functional even if it is stored for a longer period of time. Disposal of the spreader must be performed according to the local disposal regulations for machines. Original operating manual ES 100 M1 Classic... -
Page 26: Accessories
1 pick-up mounting bracket Order number: Item no.: 00300-1-001 Fig.: 15 14.3 Quad (ATV) bracket To mount your ES 100 M1 Classic on an ATV or quad bike, we offer a quad bracket as an accessory. Items included: 1 quad bracket Order number: Item no.: 00300-2-135... -
Page 27: Height-Adjustable Quad Bracket
Fig.: 18 Abb.: 14.5 Precision dispersion plate If you would like to use your ES 100 M1 Classic for small working widths, you can also purchase a precision dispersion plate. It was specially developed for small working widths (up to approx. 4 m) and causes the seed to be spread precisely in the roller (or in front of it). -
Page 28: My Idea
Your information goes directly to the leading developers at APV. I would like to thank you in advance for your involvement and wish you lots of fun with your APV product! Sincerely yours, Your Head of Development & Technology Original operating manual ES 100 M1 Classic... -
Page 29: Index
Intended use ........6 Vetch ..........21 Lateral distribution ......18 Warranty ..........6 Layout and mode of operation ..12 White clover ........19 Lucerne..........22 White mustard ........20 Maintenance ........9 Original operating manual ES 100 M1 Classic... - Page 30 Quality for Professionals Notes Original operating manual ES 100 M1 Classic...
- Page 31 Quality for Professionals Notes Original operating manual ES 100 M1 Classic...
- Page 32 Quality for Professionals Inspired by Farmers & realized by Professionals APV - Technische Produkte GmbH HEADQUARTERS Dallein 15 AT - 3753 Hötzelsdorf Tel.: +43 / (0)2913 / 8001 Fax: +43 / (0)2913 / 8002 www.apv.at office@apv.at...
