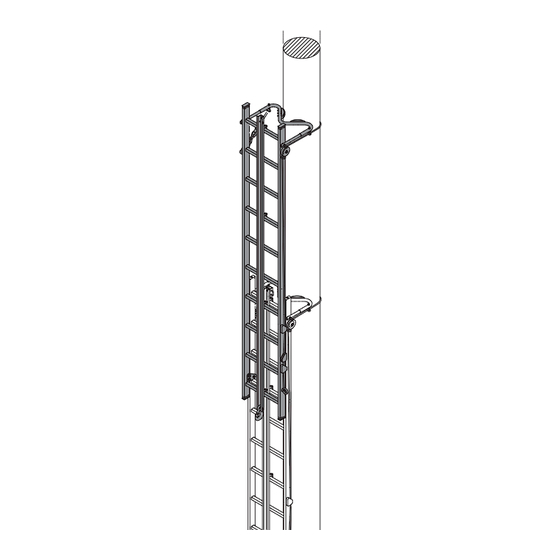

- Page 1 Z600 29860 Pole Access Ladder...
- Page 2 english..................3 ..................... 11...
-
Page 3: Table Of Contents
english Assembly and usage instructions, pole access ladder Contents 1. Information on this manual................4 1.1 Important information on this manual.......... 4 1.2 Explanation of symbols..............4 1.3 Notes for personnel ............... 4 2. Safety instructions ..................5 2.1 Intended use................... 5 2.2 Improper use.................. -
Page 4: Information On This Manual
1. Information on this manual Important informa- The instructions in this manual must be read, understood and complied with to ensure tion on this manual correct and safe erection and operation of the pole access ladders. Failure to comply with these instructions may lead to fatal accidents, injury or damage to property. This manual must be kept at the place of assembly and operation and must be available to personnel at all times. -
Page 5: Safety Instructions
2. Safety instructions Intended use The pole access ladder is intended solely for the following applications: • as a climbing aid to gain access to a pole in order to perform work at a specific maximum height. The maximum height is dependent on the scope of the order (see order confirmation) •... -
Page 6: Safety Instructions For Working With Electrical Equipment
Safety instructions The following safety instructions must be observed when: for working with • you are working with electrical equipment on the pole access ladder, electrical equipment • the pole access ladder is used in the vicinity of electrical units, •... -
Page 7: Technical Description
3. Technical description Scope of delivery • The ladders are of customised design, and the parts delivered vary according to each order. However, as a minimum, each ladder comprises a bottom section, middle section and top section. • Before starting assembly of the product, check that all components listed in the order confirmation and on the delivery note have been supplied and are in perfect condition. -
Page 8: Assembly
> Is the pole access ladder standing in vertical position (at 90° to the horizontal plane) on an even and immobile surface of sufficient load-bearing capacity? > If the subsurface is uneven: Has the ZARGES LCS ladder adapter been used? > Is the product in perfect condition? >... -
Page 9: Use
ANGER ANGER OF SERIOUS OR FATAL INJURY AS A RESULT OF FALLING FROM THE POLE ACCESS LADDER Follow these basic rules when ascending and descending the ladder to prevent dangerous situations arising: > Wear a safety harness in accordance with DIN EN 361 and use a ZAST-OPTIFLEX-R4 safety slide mechanism. -
Page 10: Maintenance And Servicing
The technical expert is authorised to carry out inspection by the operator and must have attended the seminars prescribed by law in the country concerned. • Following successful inspection, the ZARGES inspection plate (Order No. 891209 or 828384) must be attached to the product. The month and year in which the next inspection is due must be clearly legible for users of the equipment. - Page 11 Aufbau 41916...
- Page 12 LCS* 2* = optional safety measures...
- Page 13 ZAST- OPTIFLEX-R4 41917...
- Page 15 ZAST- OPTIFLEX-R4 41918...
- Page 16 ZAST- OPTIFLEX-R4...
- Page 17 Verwenden Max. 150 kg...
- Page 18 ZARGES GmbH Postfach 16 30 82360 Weilheim Tel: + 49-8 81/68 71 00 Fax: +49-8 81/68 75 00 E-Mail: zarges@zarges.de Internet: http://www.zarges.de © 2010 by Zarges GmbH 05.2010...
