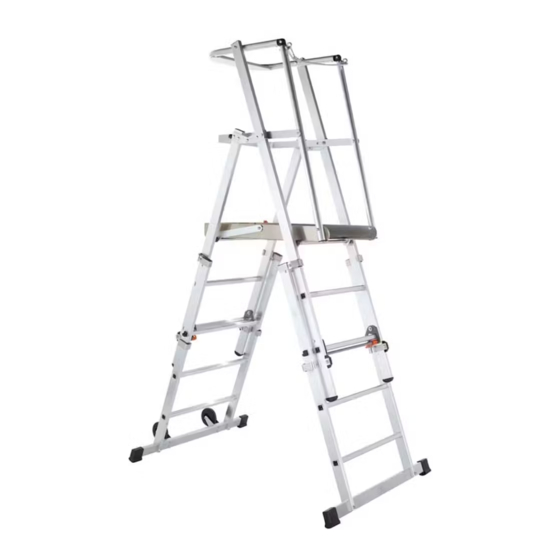

- Page 1 Instructions for assembly and use ZAP telescopic platform ladder Z600 291361...
-
Page 2: Table Of Contents
English Instructions for assembly and use ZAP telescopic platform ladder Contents 1. Information on this manual ............2 1.1 General notes ..................2 1.2 Explanation of symbols .................2 1.3 Product nameplate................3 1.4 Information plate...................4 2. Safety instructions ..............4 2.1 Intended use ..................4 2.2 Improper use ..................4 2.3 General safety instructions..............4 2.4 Notes for personnel ................5... -
Page 3: Information On This Manual
1. Information on this manual 1.1 General notes These instructions are valid for the following products: ZAP telescopic platform ladder The instructions in this manual must be read, understood and complied with to en- sure correct and safe erection and operation of the product. Failure to comply with these instructions may lead to fatal accidents, injury or damage to property. -
Page 4: Product Nameplate
The following pictograms are used in the illustrations section of this manual: Check the scope of delivery. Wear safety shoes. Wear protective gloves. 1.3 Product The product nameplate is attached to the support section on the back of the prod- nameplate uct. -
Page 5: Information Plate
• continuous outdoor use (including overnight and after the end of the shift) • unauthorised structural modifications or incorrectly executed repairs • use of any parts other than original components and original ZARGES spare parts 2.3 General safety... -
Page 6: Notes For Personnel
> For outdoor use, ballasting is required for the product with Item No. 41328 starting from a platform height of 2.65 m. This is done by attaching a ballast weight, Item No. 41331, to each stabiliser. > Check the subsurface for a possible risk of slipping caused by moisture, ice, snow or soiling. -
Page 7: Technical Description
Rated voltage (V) Safety clearance (m) 220 kV – 380 kV 5.0 m or if the rated voltage is not known > When calculating safety clearances, allow for the swinging radius of power lines and the movement radius of working personnel. The movement radius in- cludes any objects held by personnel. -
Page 8: Technical Data
In the event of high winds, evacuate the platform ladder and secure it. Load the product evenly. Do not increase the platform height with additional objects. A maximum of 1 person may use the platform steps. Secure the product to prevent it rolling away. Read the instructions for assembly and use. -
Page 9: Assembly
4. Assembly 4.1 Safety instruc- • Observe the safety instructions in "2.3 General safety instructions". tions for • The order for assembly as shown in the illustrations must be observed. assembly 4.2 Assembly The assembly instructions are in the form of diagrams. instructions See illustrations section of this manual. -
Page 10: Safety Instructions For Moving The Platform Ladder
> When using the product in buildings open to the passage of wind, on unclad buildings or building corners, observe wind speeds and, if necessary, take appropriate measures to prevent the product toppling over (e.g. by anchoring it). > After finishing work, move the product to a wind-sheltered position and, if necessary, take additional measures to secure it against toppling over (e.g. -
Page 11: Disposal
• The inspection must be documented. Check sheets for inspection of the product are available on the ZARGES homepage. After successful inspection, attach the ZARGES inspection plate (Order No. 828384 or 828385) to the product. The month and year in which the next inspection is due must be clearly visible. - Page 12 Assembly / Montage 41328 41325 41326 41327 41328...
- Page 14 41328 41328...
- Page 15 41328...
- Page 16 Scaffold Towers | Ladders & Steps | Podiums | Rigging | Tube & Fittings New & Used Sales | Hire | Repair | Manufacture ZARGES GmbH Postfach 16 30 82360 Weilheim Tel: + 49-8 81/68 71 00 Fax: +49-8 81/68 75 00 E-Mail: zarges@zarges.de Internet: http://www.zarges.de 04.2015 © 2015 by Zarges GmbH...
