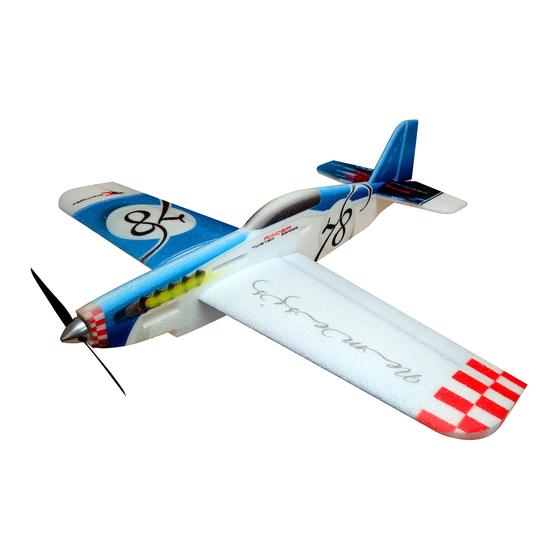

RC Factory Twisted Racer Series Assembly Instructions Manual

780 mm 720 mm 230g

Kit Contents:

* fuselage
* wings
* horizontal stabilizer
Accessory Pack Contents:
* carbon diam. 1.5x50mm ... 2x
* brass pin clevises ... 8x
* heatshrink tube ... 5x
* bowden end ... 2x
* plastic arm ... 1x
* plywood parts
Horns etc.:
1. elevator horns
2. rudder horns
3. ailerons horns
You may also need:
* sharp x-acto knife
* philips screwdriver
* tweezers
* little pliers
* CA glue medium + thin, CA kicker
* drill 1mm
* ruler
* pencil (marker)
* fine handsaw (Dremmel)
Li-pol 2206
8/4 - 8/6
3s 600-850 80-120w
* vertical stabilizer
* accessory pack
* pushrods set
3. 3.
1. 2.
V1.0
