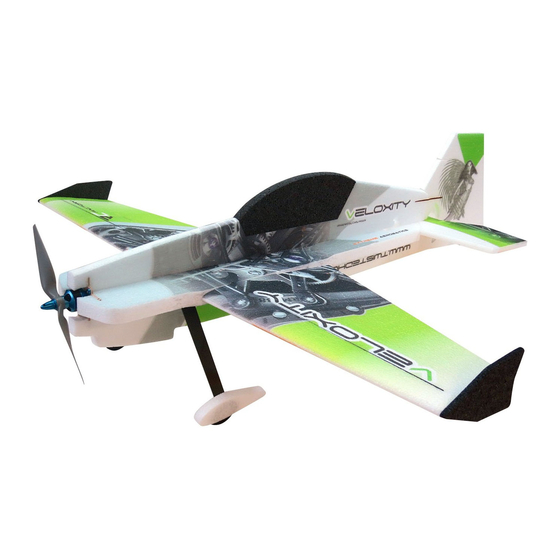

RC Factory VELOXITY Manual

Li-pol
3s 1600 2814
3s 2200 100-120g
Kit contents:
* EPP parts
* Landing Gear (LG)
* Accessory Bag
* Carbon Pushrods
Arms etc.:
1. LG mounting plate
2. LG supports
3. aileron control horns
4. aileron servo arms
5. elevator control horn
6. rudder cotrol horns
7. aileron + rudder servo arms
8. tailskid
You may also need:
* X-acto sharp knife
* philips + flat screwdriver
* tweezers
* little pliers
11/4.7
12/4.7
Carbon Parts List
* 5x1x1000 ... 2x
* 5x1x250 ... 1x
* 3x1x550 ... 2x
* 3x1x250 ... 1x
* 3x1x200 ... 1x
* 2.5x1.5x200 ... 4x
* 3x0.5x125 ... 2x
* 3x0.5x75 ... 2x
* 1.8x55 ... 2x
* 1.8x140 ... 1x
* 1.8x165 ... 1x
2.
6.
5.
3.
* CA glue medium + thin, activator (kicker)
* 10cm servo extension lead
* sandpaper 120 - 180
* pencil
More Parts:
* adjustable link 1.8 ... 4x
* ball link + screw ... 8x
* screw M3x15 ... 2x
* nut M3 ... 2x
* closed nut M3 ... 2x
* washer 3mm ... 2x
* self tapping screw 2.9x6 ... 2x
* self tapping screw 2.9x9 ... 4x
* motor mount ... 1x
* arms set ... 1x
* LG support ... 2x
* wheelpants holder ... 2x
* vertical tail support ply 3 ... 2x
* LG wheels ... 2x
7.
7.
1.
4.
4.
3.
8.
