Summary of Contents for RC Factory Storm

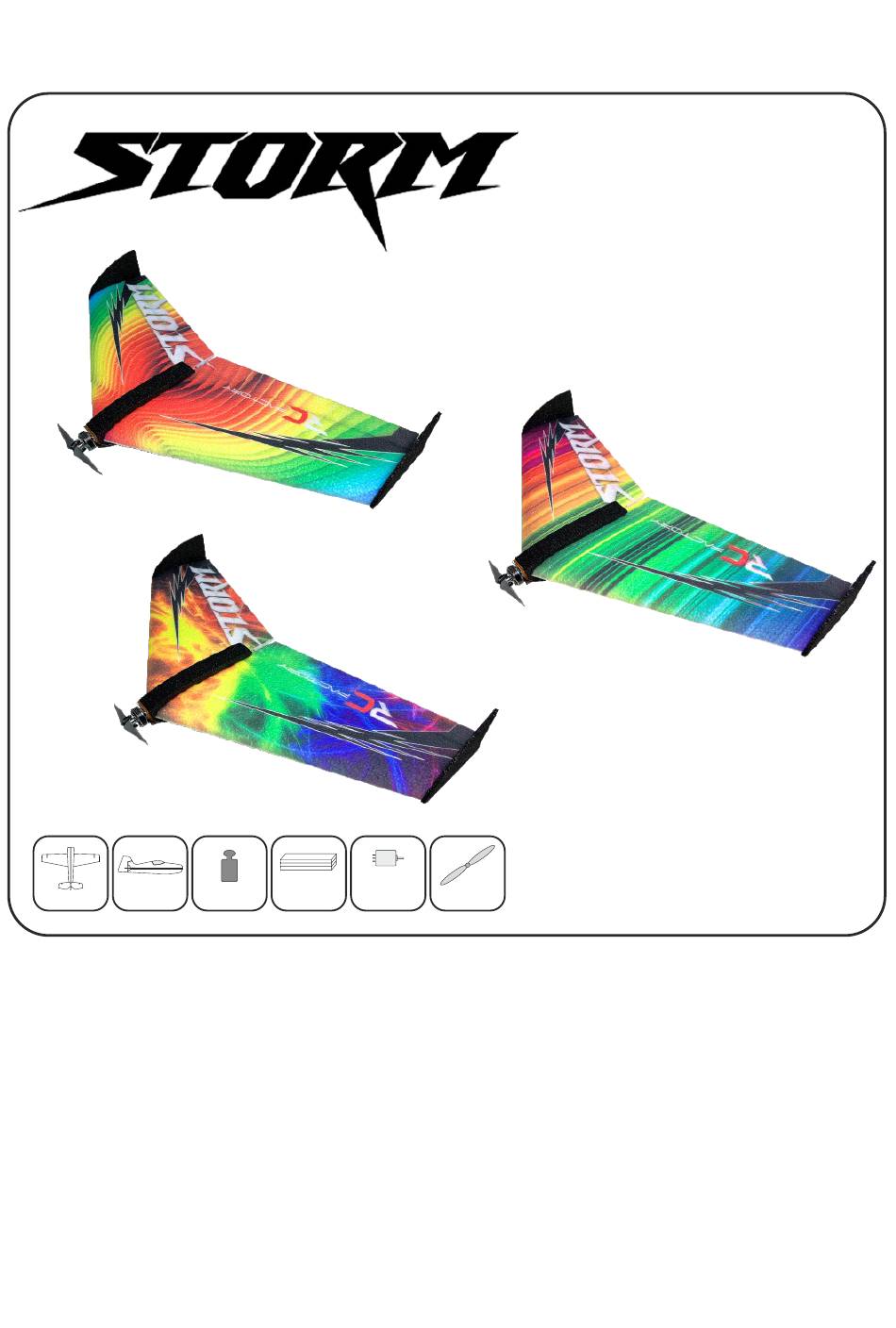

- Page 1 Li-pol 2202 250 mm 110-130g 6-7" 650 mm 2s 350mAh 14g / 30w...
-
Page 2: List Of Parts
List of parts 1pcs - Left wing 1pcs - Right wing 2pcs - Fuselage 2pcs - SFGs 1pcs - 1x550mm carbon 1pcs - 1x450mm carbon 2pcs - 1x250mm carbon 1pcs - 1,5x125mm carbon 4pcs - plastic clevis 4pcs - pins for clevis 1pcs - wood motor mount 1pcs - L+R plastic horns for elevons... -
Page 3: Top Side
Glue it together on the TOP SIDE! Medium CA TOP SIDE 1x550mm 1x250mm 85mm 28mm the template is on the last page! 1x550mm 1x250mm Thin CA... -
Page 4: Bottom Side
BOTTOM SIDE 1x450mm 1x250mm the template is on the last page! cut for servo cable Medium CA Thin CA press the carbons rods in the lines... - Page 5 put the reciever in the hole connect the micro reciever put it in the line cut the line for antenna connect the ESC to reciever 2202 + 15A ESC Medium CA TOP SIDE BOTTOM SIDE...
- Page 6 Thin CA 10mm No Glue Medium CA Thin CA screw it! Medium CA...
- Page 7 plastic clevis plastic clevis clip the pin clip the pin cut 1,5x125mm in the middle Thin CA 1,5x62,5mm Medium CA 5-6" proppeller 2s 350mAh...
- Page 8 The center of gravity 140-150mm We wish you many happy flying hours with the Storm Your RC Factory team...
