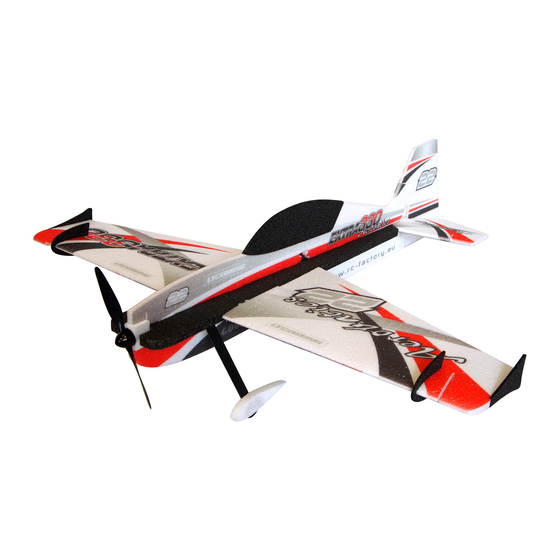

RC Factory Extra 330 Assembly Instructions Manual

Extra 330 + Edge 540 1m
1000 mm 1020 mm 370g
Kit Contents:
*Fuselage
*Wings
*Canopy
*Backbone
Acessory Pack Contents:
1x Landing gear plate
2x Pant brace
1x Tail skid
1x Plastic frame
1x Motor mount
2x Screw M2x16 ... landing gear
4x Washer 2 ... landing gear
4x Nut M2 ... landing gear
2x Screw 2,9x6mm ... landing gear
Plastic frame:
1. Aileron horn (2pcs)
2. Cross tab for aileron horn (2pcs)
3. Horizontal stabilizator horn
4. Vertical stabilizator horn
You Will Also Need:
* S harp hobby knife
* S crewdriver
* P liers
Li-pol
3s 850
*Horizontal stabilizator
*Vertical stabilizator
*SFG's
*Landing gear
*Wheel pant
3.
* CA medium+thin, CA kicker
* Ruler
* S andpaper 100-500
* Drill 2 a 3mm
*Acessory pack
*Carbon parts:
- 2x 1x500 ... stabilizator pushrods
- 2x 1,5x800 ... wing spar
4x Screw 2,9x9mm ... motor instalation
8x Plastic clevises
2x 2/1x0,5cm ... Plastic clevises reduction
2x Threaded end
2x Wheel
2x Vertical stab hinges
1x Wood spar
1x Push rod guides
2x 1,8x110mm ... aileron pushrods
2x 3x0,5x150 ... horizontal stab reinforcement
1.
1.
2.
V1.0
2.
4.
