Norco BPC-7936 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

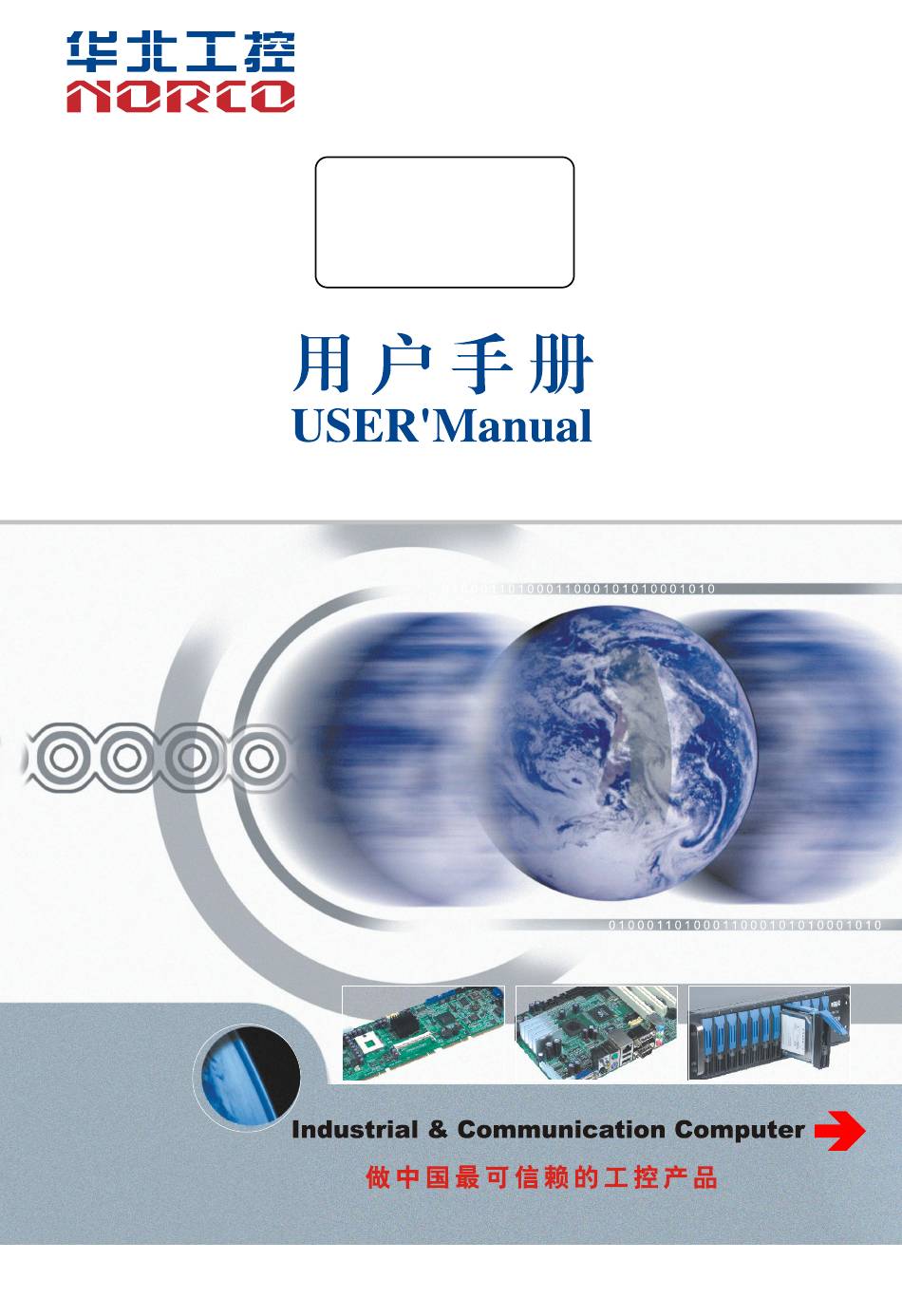

BPC-7936
USER' Manual V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPC-7936 and is the answer not in the manual?

Questions and answers

Related Manuals for Norco BPC-7936

Summary of Contents for Norco BPC-7936

  • Page 1 BPC-7936 USER' Manual V1.1...
  • Page 2 BPC-7936 USER' Manual V1.1 SZ HQ: 0755-27331166 Beijing Office: 010-82671166 Shanghai Office: 021-61212081 Chengdu Office: 028-85259319 Shenyang Office: 024-23960846 Xi’an Office: 029-88338386 Nanjing Office: 025-58015489 Wuhan Office: 027-87858983 Tianjin Office: 022-23727100 Singapore: 65-68530809 For more information, please visit：www.norco.com.cn...
  • Page 3 Before buying products, please learn about the product performance from the distributors to see if it is in line with your needs. NORCO is a registered trademark of Shenzhen NORCO Intelligent Technology CO., LTD.

  • Page 4: Safety Instructions

    Safety Instructions 1.Before using this product, please read this user’s manual carefully; 2.Any plate cards not ready to be installed shall be kept in the anti-static protective bags; 3.Before taking out the plate cards from the anti-static protective bags, first place hands on the grounding metal object for a while so as to release the static electricity from your body and hands;...

  • Page 5: Table Of Contents

    Content Chapter 1 Product Introduction ......................1 1.1 Introduction..........................1 1.2 Hardware Specification......................1 Chapter 2 Hardware Function ......................4 2.1 Interface Location and Dimension Diagram................4 2.2 Installation Steps........................5 2.3 Jumper Setting...........................5 2.3.1 CMOS Content Clearance /Keep Settings（JCC）..........5 2.3.2 Hardware Switch for System Auto Boot upon Power On（JAT）......7 2.3.3 LCD Rated Voltage Selection Jumper（JP1，JP2）..........
  • Page 6 3.2.1 CPU Configuration.......................27 3.2.2 IDE Configuration......................28 3.2.3 Super IO Configuration....................32 3.2.4 Hardware Health Configuration................. 31 3.2.5 ACPI Configuration...................... 32 3.2.6 AHCI Configuration......................34 3.2.7 APM Configuration.......................35 3.2.8 Remote Access Configuration................... 36 3.2.9 USB Configuration....................... 37 3.2.10 Onboard LAN Configuration..................39 3.3 Chipset Menu...........................40 3.3.1 North Bridge........................41 3.3.2 South Bridge.........................

  • Page 7: Packing List

    Packing List Thanks for purchasing NORCO products. Please check the accessories as per the packing list when you open its package. If you find any defect components or anything damaged or lost, please contact your vendor ASAP. ■ BPC-7936 1pcs ■...
  • Page 8 Chapter Product Introdu ction...

  • Page 9: Chapter 1 Product Introduction

    1.1 Introduction BPC-7936 is NORCO’s latest motherboard based on Intel Cedarview platform special for NORCO box computer ， support Intel Cedarview D2550 processor. On board 2GB/4GB DDRⅢ 800/1066MHz memory，memory up to 4GB；Support LVDS、VGA、HDMI display port， support independent dual display ； Provide 2x standard DB9 COM ports （ support RS232/RS422/RS485）...
  • Page 10 BPC-7936 V1.1 User's Manual ●HDMI ： 1xHDMI port ， resolution support: 1920x1200 @ 60Hz ； Support independent dual displays Ethernet ●Network controller：Adopt PCIe interface chip，model: 82583V ●Rate：10/100/1000MBps ●Support Wake On LAN（WOL） Storage ●Support SATAI/SATAII/SATAIII ●Provide 2xstandard 7Pin SATA2.0 port and 2x5Pin HDD power supply voltage interface ●Provide 1xCF card and IDE interface...
  • Page 11 BPC-7936 V1.1 User's Manual Watchdog ●Super I/O，support hardware reset BIOS ●64M bit SPI BIOS Operating Environment ●Operating Temperature：0℃~60℃ ●Storage Temperature：-40~85℃ ●Operating Humidity：5%~95%，non-condensing ●Storage Humidity：5%~95%，non-condensing...

  • Page 12: Chapter 2 Hardware Function

    Chapter Hardware Function...
  • Page 13 BPC-7936 V1.1 User's Manual Chapter Two Hardware Function 2.1 Interfaces Location and Dimension Following picture illustrates the front interfaces and dimension of board BPC-7936. Please pay attention to the installation process. Improper installation of some components may lead to system failure.

  • Page 14: Installation Steps

    BPC-7936 V1.1 User's Manual 2.2 Installation Steps Please follow the steps below to assemble your computer： 1．Adjust all jumpers onboard BPC-7936 according to the user manual. 2．Install other expansion cards. 3．Connect all signal line, cables, panel control circuit and power adapter.
  • Page 15 BPC-7936 V1.1 User's Manual JCC： Setting Clear CMOS，BIOS renew to initialization Normal status (default) Do not clear CMOS when power on, otherwise it will damage the motherboard！...

  • Page 16: Hardware Switch For System Auto Boot Upon Power On（Jat

    BPC-7936 V1.1 User's Manual 2.3.2 Hardware Switch for System Auto Boot upon Power On（JAT） JAT： Setting Open Disable Auto Boot Close Enable Auto Boot 2.3.3 LCD Rated Voltage Selection Jumper（JP1，JP2） Before using LCD, please know its required working rated voltage. Here jumper sets the...

  • Page 17: Interface Specification

    BPC-7936 V1.1 User's Manual JP1、JP2： Setting 3.3V × × × 2.4 Interface Specification When connecting external connectors, please read this manual carefully in order to avoid damage to the motherboard！ 2.4.1 Serial Port（COM1、COM2） Board with 2x standard DB9 serial port COM，support RS232/RS422/RS485 transmission...
  • Page 18 BPC-7936 V1.1 User's Manual COM1、COM2 Signal Name When COM1、COM2 are set to R232/RS422/RS485，definition of PIN： RS232（default） RS422 RS485 DATA- DATA+...

  • Page 19: Sata Port（Sata1、Sata2、Jsatapwr1、Jsatapwr2

    BPC-7936 V1.1 User's Manual 2.4.2 SATA Port（SATA1、SATA2、JSATAPWR1、JSATAPWR2） Provide 2x standard 7Pin SATA port, and 2x5Pin HDD power supply voltage interface （SATA1 port and MINI IDE port alternative）. SATA2 JSATAPWR2 JSATAPWR1 SATA1 SATA1/2： Signal Name...
  • Page 20 BPC-7936 V1.1 User's Manual JSATAPWR1/2： Signal Name +3.3V +12V 2.4.3 USB、LAN Port（USB12、USB_LAN1、USB_LAN2） Provide 2xstandard double layer USB2.0 port and one 2x5Pin pin. Provide 2xstandard LAN network interface, support Wake On LAN（WOL）. USB12 USB_LAN1 USB_LAN2 USB12： Signal Name Signal Name USBD_N1...

  • Page 21: Keyboard And Mouse Interface（Km

    BPC-7936 V1.1 User's Manual USBD_N2 RJ45 LAN LED Status Description： LILED（Green） Function ACTLED（Yellow） Function 100/1000M link FLASH Data transfer 10M link or closed Data transfer stop 2.4.4 Keyboard & Mouse Interface（KM） Provide 1x standard keyboard & mouse interface Signal Name...

  • Page 22: Audio Port & Rear Panel Led（Audio，Line-In，Led

    BPC-7936 V1.1 User's Manual KB： Signal Name KB_DATA KB_CLK 2.4.5 Audio Port & Rear Panel LED（AUDIO，LINE-in，LED） BPC-7936 adopts ALC887 audio control chip. Green for audio output interface （ Speak-out） ， Pink for microphone input interface（MIC-in）. Provide 1xLine-in pin. Line_in AUDIO Line_in： Signal Name...
  • Page 23 BPC-7936 V1.1 User's Manual 2.4.6 Display Port（LVDS、VGA、HDMI） Provide 1xsingle channel 2x20Pin LVDS port，1xVGA port and one 2x8Pin HDMI pin. JVGA HDMI LVDS LVDS: Signal Name Signal Name VDD_PANEL VDD_PANEL TX0_DN_R DDC_DATA TX0_DP_R DDC_CLK TX1_DN_R CLK_DN_R TX1_DP_R CLK_DN_R TX2_DN_R TX3_DN_R TX2_DP_R...

  • Page 24: Lvds Power Supply Voltage（Jlvds

    BPC-7936 V1.1 User's Manual CRT_VSYNC1 CRT_DDC_CLK_OUT HDMI: Signal Name Signal Name DATA0_P CLK_P DATA0_N CLK_N DATA1_P DATA1_N DATA2_P DETECT DATA2_N 2.4.7 LVDS Power Supply Voltage（JLVDS） JLVDSPWR JLVDSPWR： Signal Name BKLT_CTRL...

  • Page 25: Power Interface（Pwr

    BPC-7936 V1.1 User's Manual BKLT_EN +12V 2.4.8 Power Interface（ ） Square shape 2X2pin single power supply interface. PWRBT PWR： Signal Name +12V +12V 2.4.9 Fan Interface（FAN1，FAN2） Board with 1x3Pin CPU fan interface and 1x4Pin CPU fan interface. Pay attention to the following two points when using the fan：...
  • Page 26 BPC-7936 V1.1 User's Manual FAN1 FAN2 FAN1： Signal Name +12V FANTACH1 FAN2： Signal Name +12V FANIN FANOUT...

  • Page 27: Programmable I/O Interface (Jgpio)

    BPC-7936 V1.1 User's Manual 2.4.10 Programmable I/O Interface (JGPIO) JGPIO JGPIO： Signal Name Signal Name GP30 GP31 GP34 GP32 GP35 GP33 GP36 GP37 2.4.11 Front Panel Interface（JFP） JFP is used to connect function keys and LED indicator on the front panel.
  • Page 28 BPC-7936 V1.1 User's Manual JFP： Signal Name Signal Name PLED+ HDD_LED+ HDD_LED- BUZZDATA# PF_RESET_BT POWERSW#_R Please follow the table below to connect, pay attention to the anode (+) and cathode (-), otherwise some function cannot be realized. POWER-LED HDD-LED BUZZ...

  • Page 29: Expansion Slot

    BPC-7936 V1.1 User's Manual 2）Reset Key Pin（Pin 7、Pin 8 RESET） Connect the reset button cable to these two pins. When system fails, reset button can make the system restart to work and no need to turn on / off the power.
  • Page 30 BPC-7936 V1.1 User's Manual PCIE_RXN1 SRXN_A_10048 PCIE_RXP1 SRXP_A_10048 GP1027 USB_PP7 USB_PN7 DBUGCLK USB_PP8 SIO2CLK33M USB_PN8 2.4.13 MINI IDE Port（MINII DE） Board with 1xMINIDE slot ， users can expand the IDE hard disk according to their own needs, only one IDE hard disk can be connected, and the hard disk must be set as the main mode.

  • Page 31: Cf Card Interface

    BPC-7936 V1.1 User's Manual CS0n CS1n DASPn 2.4.14 CF Card Interface Board with 1x standard CF card interface...

  • Page 32: Chapter 3 Bios Set Up

    Chapter Three BIOS Set up...

  • Page 33: Ami Bios Reflesh

    BPC-7936 V1.1 User's Manual Chapter Three BIOS SET UP AMI BIOS Refresh BIOS functions as a bridge connecting hardware and operating system. Hardware and software are upgrading all the time, so when your system goes wrong, for example, your system cannot support the newest CPU, you need to upgrade BIOS to keep up with the latest technology.

  • Page 34: Main Menu

    BPC-7936 V1.1 User's Manual 3、 Use the “←↑→↓” to select the option which you want to modify, press <Enter> to go to the sub-menu. 4、 Use the “←↑→↓” and <Enter> to modify the value; press “ Enter” to modify BIOS options that you choose.

  • Page 35: Advanced

    BPC-7936 V1.1 User's Manual 3.2 Advanced Launch LAN1/2 PXE OpROM To set whether the onboard network card PXE is allowed to start. [Enabled]/ [Disabled] ACPI Settings Advanced configuration and power management interface settings APM Configuration Set RTC wake-up parameters CPU Configuration...
  • Page 36 BPC-7936 V1.1 User's Manual 3.2.1 ACPI Settings ACPI Sleep State To select the power saving mode when the system is sleeping. If the mode is different, the power consumption of the system is different. Suspend Disabled：Shut down hibernation S3 only (Suspend to RAM) : Suspend to ram...

  • Page 37: Apm Configuration

    BPC-7936 V1.1 User's Manual 3.2.2 APM Configuration RTC Power On Function Automatic power up setting，set value: [Enabled] [Disabled] ；Default: [Disabled]. When this option is set to Enabled, the following three options will appear to set the specific wake-up time and date.
  • Page 38 BPC-7936 V1.1 User's Manual 3.2.3 CPU Configuration Read-only items contain CPU details, including CPU manufacturers, models, frequencies, L1 cache size, L2 cache size and other information. Hyper-Threading Whether to use the hyper threading technology of CPU, setting value: [Enabled][Disabled]. Execute Disable Bit “Execute Disable Bit”...
  • Page 39 BPC-7936 V1.1 User's Manual EIST Intelligent frequency reduction technology ON or OFF settings CPU C state Report Whether to Enable CPU power state report，Set value：[Disabled]，[Enabled] 3.2.4 SATA Configuration Serial ATA Port 1/2 Display the status of the current SATA Port 1/2 Serial-ATA Controller（S）...

  • Page 40: Usb Configuration

    BPC-7936 V1.1 User's Manual 3.2.5 USB Configuration USB 2.0 (EHCI) Support [Enabled]: Allow using USB EHCI transport protocol, transmission rate up to 480Mpbs [Disabled]:USB2.0 port is forbidden，the traditional transmission rate is 12Mpbs Legacy USB Support Legacy USB supports setting. To support USB devices in DOS mode, such as USB flash disk, USB keyboard, select this option as [Enabled] or [Auto].
  • Page 41 BPC-7936 V1.1 User's Manual 3.2.6 Super IO Configuration Serial Port 1 Configuration Serial Port 2 Configuration Watch Dog Configuration...
  • Page 42 BPC-7936 V1.1 User's Manual Serial Port 1 Configuration 1）Serial Port [Enabled]/ [Disabled] serial port 2）Device Setting（read only） Display interrupt and address of serial port 3）Change Setting Set the interrupt and address of the serial port Serial Port 2 Configuration Serial Port 2 Configuration the same setting as above...
  • Page 43 BPC-7936 V1.1 User's Manual WDT Timeout Mode Watchdog function setting ， default:[Disabled]. When set to Minute/Second the following option WDT Timeout Value (0-255) are displayed.
  • Page 44 BPC-7936 V1.1 User's Manual 3.2.7 H/W Monitor PC Health Status Hardware security detection, BIOS will display the current system temperature, CPU temperature, fan speed, and other related voltage values. All of the above parameters have a certain range, and the system cannot operate beyond these ranges.

  • Page 45: Chipset Menu

    BPC-7936 V1.1 User's Manual 3.3 Chipset Menu North Bridge North bridge configuration options. Including display memory, display device and other options South Bridge South bridge configuration options. Including sound card, network card, auto boot upon power on and other options...
  • Page 46 BPC-7936 V1.1 User's Manual 3.3.1 North Bridge Boot Display Device To set the display device used to display the output when the system starts Flat Panel Type Sets the resolution when LVDS display mode is selected Active LFP Enabled / Disabled LVDS...
  • Page 47 BPC-7936 V1.1 User's Manual 3.3.2 South Bridge Audio Controller Enabled / Disabled on board sound card LAN 1/2 Controller Enabled / Disabled onboard LAN controller Restore AC Power Loss This option is to setup the system status while connecting the power again after the AC Power Loss <Power Off>: System remains the status of power off.

  • Page 48: Boot Menu

    BPC-7936 V1.1 User's Manual 3.4 Boot Menu Setup Prompt Timeout Number of seconds to wait for setup shortcut key. If don’t press Setup key within the pre-set time, system will continue to start. Bootup Numlock State This function allows users to activate Numlock function when boot up. [ON]: Numlock is activated when system boots up [OFF]: Numlock under cursor control.

  • Page 49: Security Menu

    BPC-7936 V1.1 User's Manual priority should set for these HDDs, then the prior one will show in Boot Option #1 3.5 Security Menu The password length: Min: 1 character, Maximum: 20 characters. Administrator Password Set supervisor password User Password This prompt line is used to indicate whether the normal user password has been set. If it is...

  • Page 50: Save&Exit Menu

    BPC-7936 V1.1 User's Manual 3.6 Save & Exit Menu Save Changes and Exit Save the BIOS settings and exit the setup interface to continue starting the computer Save Change and Exit To save changes to BIOS settings and restart the computer. Press Enter on this item to confirm.

  • Page 51: Appendix

    Appendix...

  • Page 52: Appendix 1：Watchdog Programming Guide

    BPC-7936 V1.1 User's Manual Appendix Appendix 1：Watchdog Programming Guide watchdog reference code（C） ----------------------------------------------------------------------------------------------------------------------------- Set the port to realize watchdog function. In C programming language, different functions of Watchdog Timer can be realized by operating ports by writing data to corresponding ports.

  • Page 53: Appendix 2：Glossary

    BPC-7936 V1.1 User's Manual Appendix 2：Glossary ACPI Advanced Configuration and Power Management. ACPI specifications allow operating system to control most power of the computer and its add-on. Windows 98/98SE，Windows 2000 and Windows ME supports this specification. BIOS Basic input/output system. It is software including all in/out control code interface in PC. The software will detect hardware when it auto boot, operate OS, and provide an interface between OS and hardware.
  • Page 54 BPC-7936 V1.1 User's Manual Dual-Inline-Memory-Modules. It is a small circuit board with memory chipset providing 64 bit memory bus width. DRAM Dynamic Random Access Memory. It’s a general type of memory for regular computer which usually store 1 bit with a transistor and a capacitance. With the development of the technology, more and more types of DRAM with different specifications exist in computer applications.
  • Page 55 BPC-7936 V1.1 User's Manual It is the Universal Serial Bus for short. A hardware interface adapts to low speed peripherals, and is always used to connect keyboard, mouse etc. One PC can connect maximum 127 USB devices, providing 12Mbit/s transmit bandwidth USB supports hot swap and multi- data stream, namely, you can plug USB devices while system is running, system can auto-detect and makes it work on.

  • Page 56: Appendix 3：Driver Installation

    BPC-7936 V1.1 User's Manual Appendix 3：Driver Installation Please install the driver in the following way： Put the driver CD into the CD-ROM drive for automatic installation and manual installation. Now the manual installation is introduced as follows (take the installation of video card driver as an example)：...
