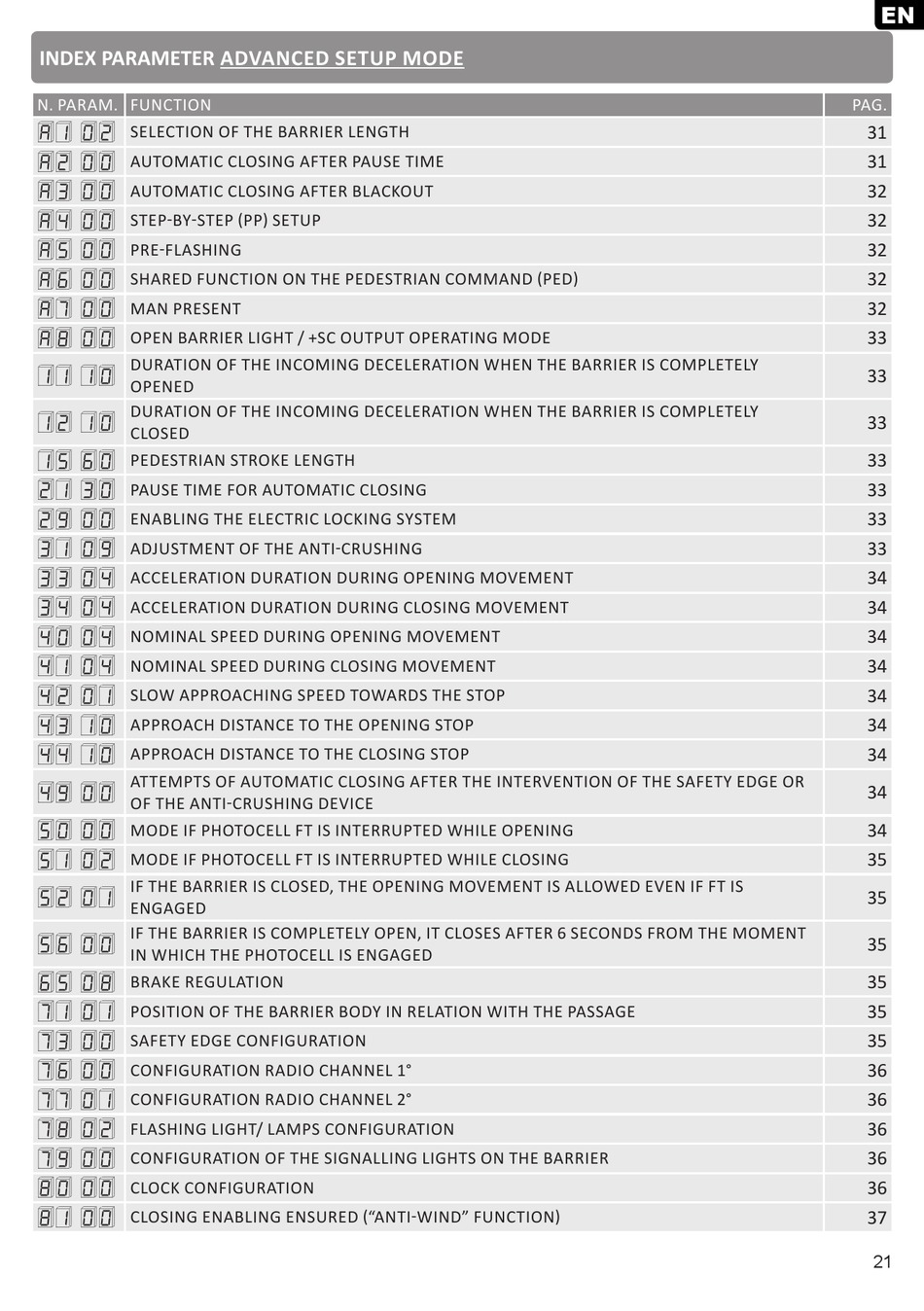

INDEX PARAMETER ADVANCED SETUP MODE
N. PARAM. FUNCTION
A1 02 SELECTION OF THE BARRIER LENGTH
A2 00 AUTOMATIC CLOSING AFTER PAUSE TIME
A3 00 AUTOMATIC CLOSING AFTER BLACKOUT
A4 00
STEP-BY-STEP (PP) SETUP
A5 00 PRE-FLASHING
A6 00 SHARED FUNCTION ON THE PEDESTRIAN COMMAND (PED)
A7 00 MAN PRESENT
A8 00
OPEN BARRIER LIGHT / +SC OUTPUT OPERATING MODE
DURATION OF THE INCOMING DECELERATION WHEN THE BARRIER IS COMPLETELY
11 10
OPENED
DURATION OF THE INCOMING DECELERATION WHEN THE BARRIER IS COMPLETELY
12 10
CLOSED
15 60 PEDESTRIAN STROKE LENGTH
21 30
PAUSE TIME FOR AUTOMATIC CLOSING
29 00 ENABLING THE ELECTRIC LOCKING SYSTEM
31 09 ADJUSTMENT OF THE ANTI-CRUSHING
33 04 ACCELERATION DURATION DURING OPENING MOVEMENT
34 04
ACCELERATION DURATION DURING CLOSING MOVEMENT
40 04 NOMINAL SPEED DURING OPENING MOVEMENT
41 04 NOMINAL SPEED DURING CLOSING MOVEMENT
42 01 SLOW APPROACHING SPEED TOWARDS THE STOP
43 10
APPROACH DISTANCE TO THE OPENING STOP
44 10
APPROACH DISTANCE TO THE CLOSING STOP
ATTEMPTS OF AUTOMATIC CLOSING AFTER THE INTERVENTION OF THE SAFETY EDGE OR
49 00
OF THE ANTI-CRUSHING DEVICE
50 00 MODE IF PHOTOCELL FT IS INTERRUPTED WHILE OPENING
51 02 MODE IF PHOTOCELL FT IS INTERRUPTED WHILE CLOSING
IF THE BARRIER IS CLOSED, THE OPENING MOVEMENT IS ALLOWED EVEN IF FT IS
52 01
ENGAGED
IF THE BARRIER IS COMPLETELY OPEN, IT CLOSES AFTER 6 SECONDS FROM THE MOMENT
56 00
IN WHICH THE PHOTOCELL IS ENGAGED
65 08 BRAKE REGULATION
71 01 POSITION OF THE BARRIER BODY IN RELATION WITH THE PASSAGE
73 00 SAFETY EDGE CONFIGURATION
76 00
CONFIGURATION RADIO CHANNEL 1°
77 01
CONFIGURATION RADIO CHANNEL 2°
78 02 FLASHING LIGHT/ LAMPS CONFIGURATION
79 00 CONFIGURATION OF THE SIGNALLING LIGHTS ON THE BARRIER
80 00 CLOCK CONFIGURATION
81 00
CLOSING ENABLING ENSURED ("ANTI-WIND" FUNCTION)
