６．Panel mounting

1. Panel mounting

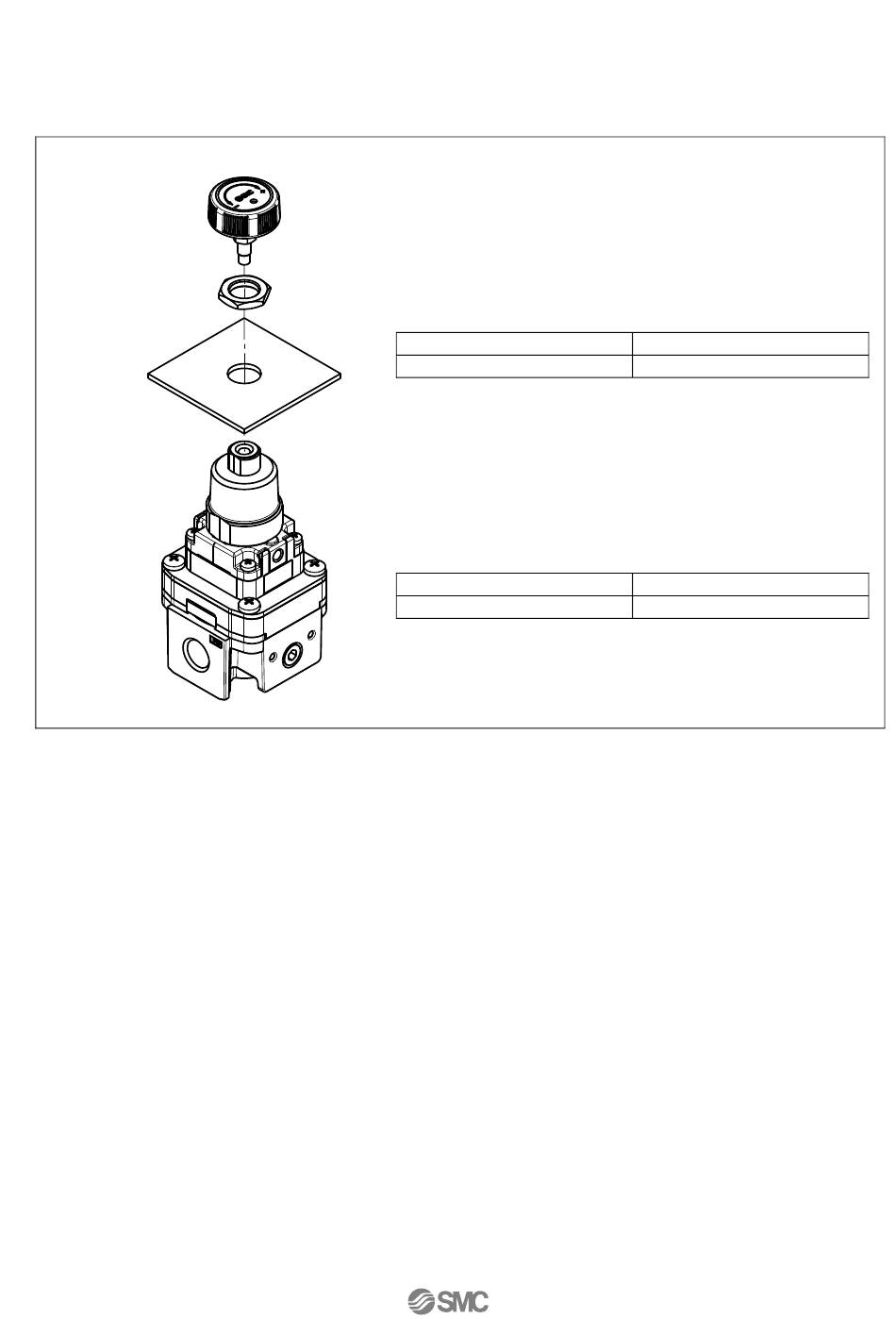

Handle
Hexagon panel nut
Panel
Regulator
1) Handle removal
Remove the handle from the regulator.
2) Panel mounting
Insert the regulator into the panel.
3) Nut tightening
Adjust the regulator position and tighten the attached
hexagon panel nut.
Recommended tightening torque
Wrench size [mm]
17
4) Handle mounting
Mount the handle back onto the regulator.
* Excessive tightening of the handle may cause
excessive pressure on the outlet side when
supplying pressure.
* Recommended panel dimension
Panel hole diameter [mm]
φ12.5
-11-
Tightening Torque[N-m]
3 to 4
Panel thickness [mm]
4 or less
