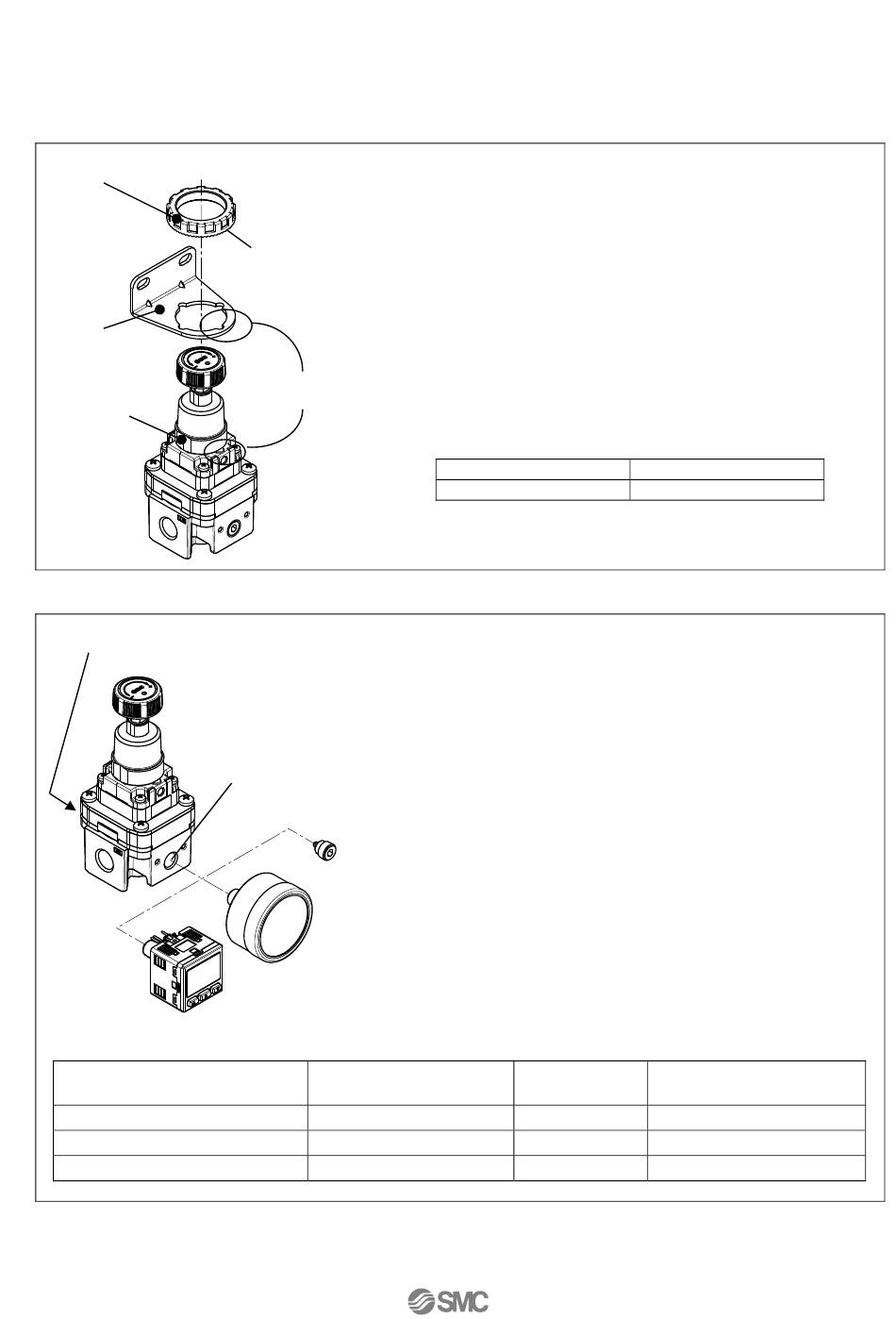

５． Bracket, gauge and switch assembly (optional)
1. Bracket
(Grooved)
Bracket
(Upper
surface of the
bracket)
(Bonnet thread)
2. Round type pressure gauge, digital pressure switch
(Rear pressure gauge connection port)
Regulator
Digital pressure switch
Part name
Plug
Round type pressure gauge
Digital pressure switch
Set nut
(Knurled tool face)
(Rotation
stopper)
Regulator
(Front pressure gauge
connection port)
Plug
Round type
pressure gauge
Hexagon wrench key
Wrench
Wrench
1) Installation of bracket
Mount the bracket to the regulator as shown on the picture.
Assemble so that the regulator and rotation stopper of the
bracket align properly.
2) Holding with the set nut
Insert the set nut into the bonnet of the regulator so that the
knurled tool face of the set nut will face the upper surface of
the bracket.
It is recommended that the set nut is tightened securely by
hand.
* When retightening
Please use hook spanner on hook groove of the set nut, and
tighten. Please follow the table below for hand tightening and
retightening.
Tool size [mm]
34/38
1) Instruction for mounting of the round type pressure
gauge and digital pressure switch
Confirm that sealant is applied to the round type pressure
gauge and digital pressure switch. Mount them into the
chosen pressure gauge connection port. Please refer to
"Piping" on page 5 when using sealant tape.
* Position adjustment of the round type pressure gauge
and digital pressure switch
Adjust the round type pressure gauge and digital pressure
switch by tightening the thread. Do not unscrew the gauge
as air leakage may occur.
* Position adjustment of the pressure gauge and digital
pressure switch on the back of the regulator
The pressure gauge connection port on the front of the
regulator with round type pressure gauge and digital
pressure switch is not plugged. When mounting the round
type pressure gauge or digital pressure switch on the back
of the regulator, please remove the plug on the back and
mount it at the front.
Tools Tool size
-10-
Reference torque [N-m]
1.8 to 2.2
Recommended torque
[mm]
4 0.55 to 0.65
12
12
[N-m]
7 to 9
7 to 9
