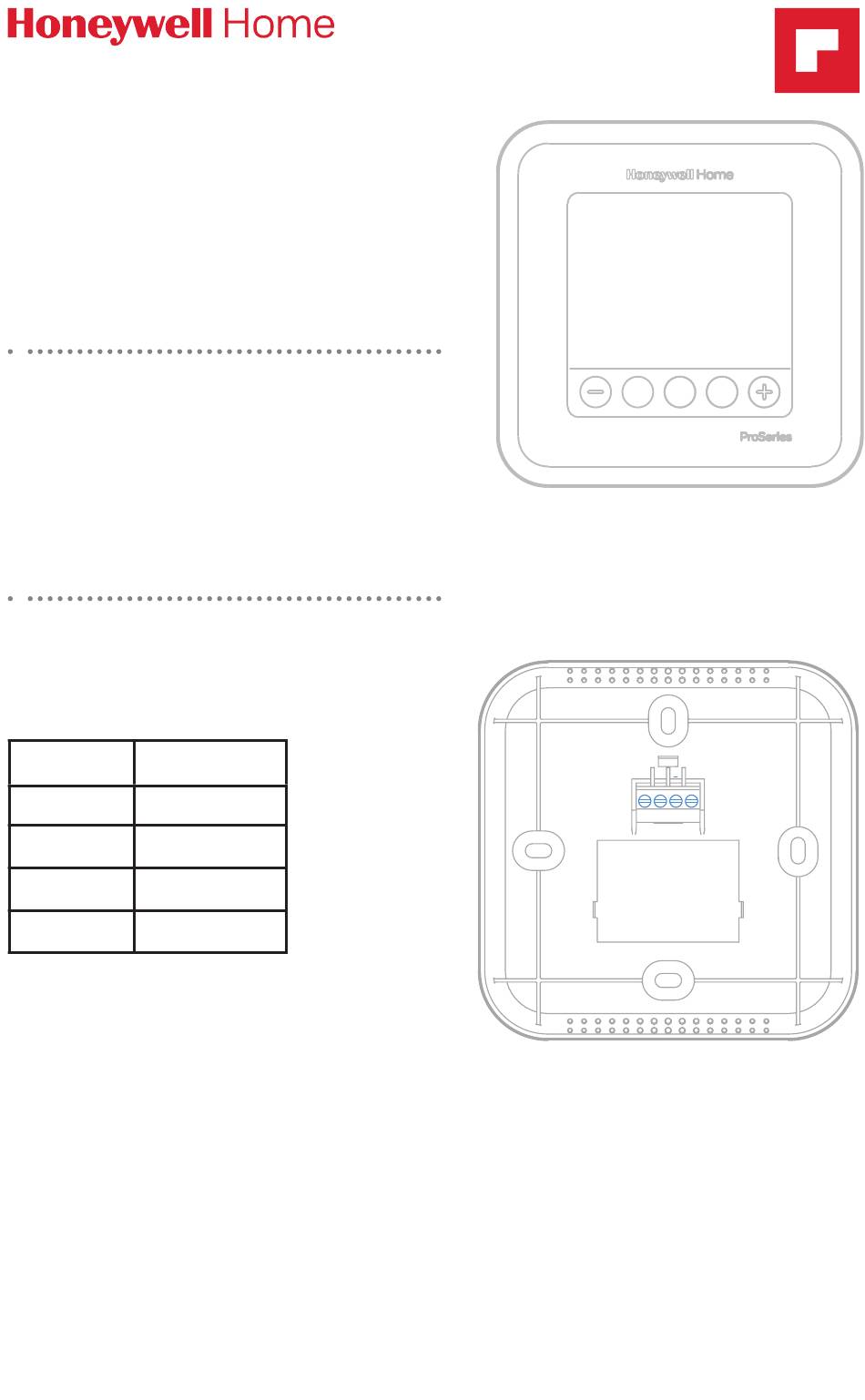

T2 Pro THECC11060MX

Programmable Thermostat

Installation Instructions

Read before installing the unit
Package Includes:
• T2 Pro Thermostat
• Wall Plate Mounting System
• Terminal Block (12 to 14 AWG)
• Screws
• Installation Instructions and User
Guide
Wiring terminal designation
Power Supply: 120V~ @ 60 Hz, 13A
Terminal
Designation
L
Line
2
Pump
1
Low
C
High
Selecting Location
Install the thermostat about 5 ft. (1.5m) above the floor in an area with good air
circulation at average temperature.
Do not install the thermostat where it can be affected by:
– Drafts or dead spots behind doors and in corners.
– Hot or cold air from ducts.
– Radiant heat from sun or appliances.
– Concealed pipes and chimneys.
– Unheated (uncooled) areas such as an outside wall behind the thermostat.
L 2 1 C
M37448

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T2 Pro THECC11060MX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Honeywell Home T2 Pro THECC11060MX

Summary of Contents for Honeywell Home T2 Pro THECC11060MX

  • Page 1: Programmable Thermostat

    T2 Pro THECC11060MX Programmable Thermostat Installation Instructions Read before installing the unit Package Includes: • T2 Pro Thermostat • Wall Plate Mounting System • Terminal Block (12 to 14 AWG) • Screws • Installation Instructions and User Guide Wiring terminal designation...

  • Page 2: Terminal Block Assembly

    Terminal block assembly WALL PLATE FRONT SIDE MCR37449 The terminal block is inserted in the wall plate at the factory. DO NOT remove the terminal block from the wall plate. If the terminal block is accidentally removed from wall plate, please follow the next steps.
  • Page 3 Insert wires into the terminal block inputs and tighten screws HI SPEED using a screwdriver (wire color doesn’t indicate terminal designation). See “Terminal block assembly” on page 2. LOW SPEED MOTOR Place the wall plate over the gang WALL PLATE box holes and be sure the arrow is pointing UP.

  • Page 4: Thermostat Mounting

    Thermostat mounting 1 Push excess wire back into the wall opening. 2 Align the wall plate with the thermostat, and push gently until the thermostat snaps in place. 3 Turn the power on at the breaker box or switch. MCR37469 Set the time and day 1 Press to choose between 12 or 24...

  • Page 5: System Test

    System test M on 1 Wait 5 minutes to allow thermostat to sense the Pre-Wet room temperature correctly (after this time a change in the temp displayed could occur). 2 Press the Mode button until “Manual” flashes on the left side. Press Select. Mode Menu 3 “Pump Only”...
  • Page 6 Advanced set up options (ISU) #ISU ISU Name ISU options (factory default in bold) Scheduling Options [0] = No schedule [1] = All days same [2] = |MO-FR|SA-SU| [3] = |MO-FR|SA|SU| [4] = Individual days (7 Days Programmable) Temperature Indication [0] = Fahrenheit Scale [1] = Celsius...

  • Page 7: Specifications

    Specifications Temperature Ranges ° ° ° ° F to 95 F (15 C to 35 Working Ambient Temperature ° ° ° ° F to 120 F (0 C to 48.9 Shipping Temperature ° ° ° ° F to 120 F (-28.9 C to 48.9 Operating Relative Humidity 5% to 90% (non-condensing)

  • Page 8: Customer Assistance

    33-00404ES—07 M.S. Rev. 09-19 Printed in United States This product is manufactured by Resideo Technologies, Inc., Golden Valley, MN ©2019 Resideo Technologies, Inc. The Honeywell Home trademark is used under 33-00404ES-07 license from Honeywell International Inc. All rights reserved.

  • Page 9: Instrucciones De Instalación

    T2 Pro THECC11060MX Termostato programable Instrucciones de instalación Lea antes de instalar la unidad El paquete incluye lo siguiente: • Termostato T2 Pro • Sistema de placa de montaje en pared • Bloque de terminales (12 a 14 AWG) • Tornillos •...
  • Page 10 Ensamble del bloque de terminales PLACA DE PARED PARTE FRONTAL MSCR37449 El bloque de terminales se inserta en la placa de pared en la fábrica. NO retire el bloque de terminales de la placa de pared. Si accidentalmente se retira el bloque de terminales de la placa de pared, siga los pasos siguientes.
  • Page 11 ALTA VELOCIDAD Inserte los cables en las entradas del bloque de terminales y ajuste los tornillos con un destornillador (el color de los cables no indica la designación de terminales). BAJA VELOCIDAD Consulte el “Ensamble del bloque MOTOR PLACA de terminales” en la página 2. DE PARED Coloque la placa de pared sobre los orificios de la caja de salida y...

  • Page 12: Montaje Del Termostato

    Montaje del termostato 1 Meta el exceso de cables en la abertura de la pared. 2 Alinee la placa de pared con el termostato y presione ligeramente hasta que el termostato encaje en el lugar. 3 Conecte la alimentación en el interruptor o la caja de fusibles.
  • Page 13 Prueba de sistema M on 1 Espere 5 minutos para que el termostato perciba Pre-Wet la temperatura de la habitación correctamente (después de este tiempo, es posible que ocurra un cambio en la temperatura que se muestra). 2 Presione el botón Mode (Modo) hasta que aparezca “Manual”...
  • Page 14 Opciones de configuración avanzada (ISU) N.º de ISU Nombre de ISU Opciones de ISU (la configuración predeterminada de fábrica se muestra en negrita) Opciones de [0] = Sin programación programación [1] = Todos los días el mismo programa [2] = |MO-FR|SA-SU| (|LUN- VIE|SÁB-DOM|) [3] = |MO-FR|SA|SU| (|LUN- VIE|SÁB|DOM|)

  • Page 15: Especificaciones

    Especificaciones Rangos de temperatura De 59 °F a 95 °F (15 °C a 35 °C) Temperatura ambiente de trabajo De 32 °F a 120 °F (0 °C a 48,9 °C) Temperatura de envío De -20 °F a 120 °F (-28,9 °C a 48,9 °C) Humedad relativa de funcionamiento 5 % a 90 % (sin condensación) Dimensiones físicas en pulgadas y mm (A x A x P)
  • Page 16 Impreso en EE. UU. Este producto es fabricado por Resideo Technologies, Inc., Golden Valley, MN ©2019 Resideo Technologies, Inc. La marca comercial Honeywell Home se utiliza en virtud de la 33-00404ES-07 licencia emitida por Honeywell International Inc. Todos los derechos reservados.
