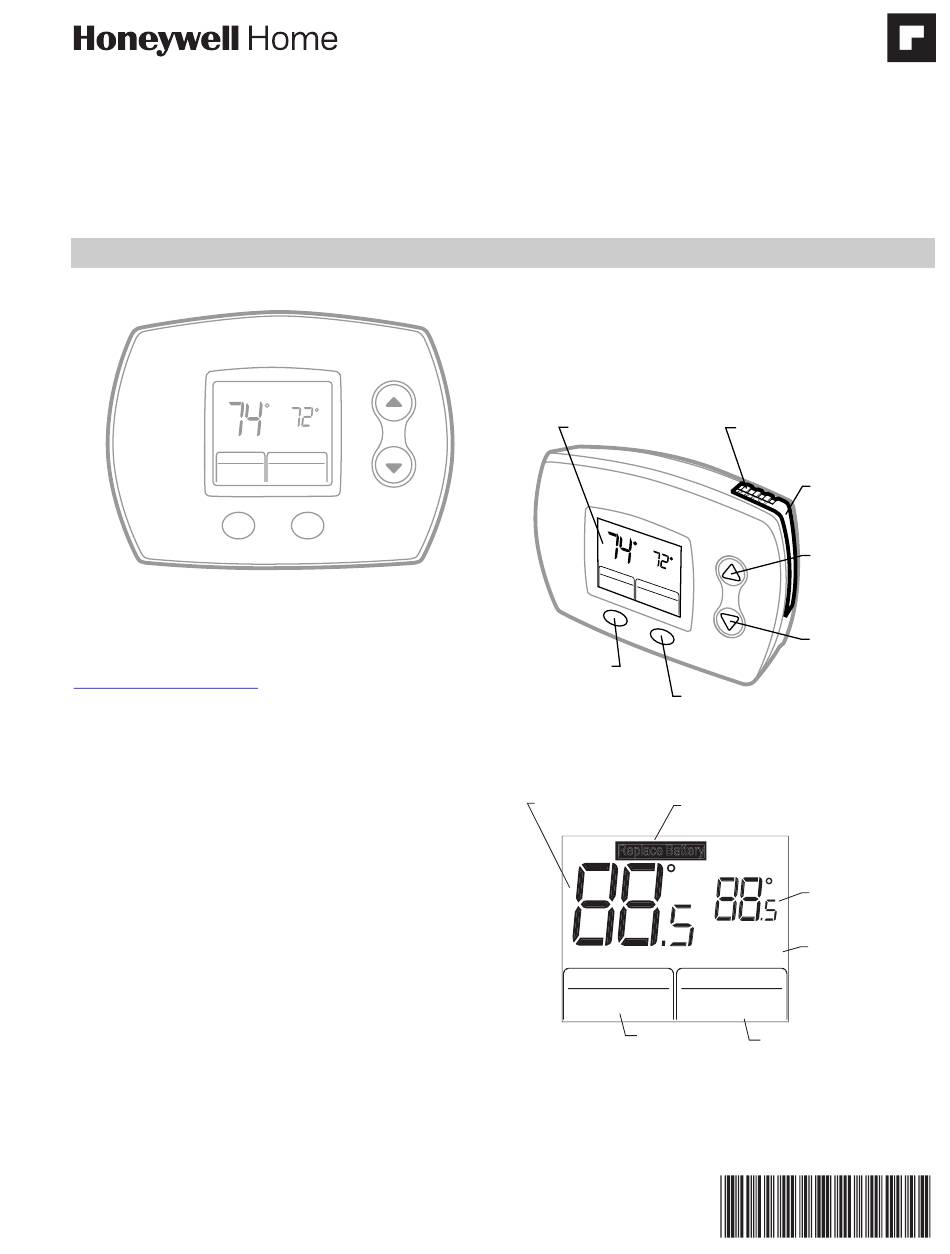

TH5110D
NON-PROGRAMMABLE THERMOSTAT
Inside
Fan
Auto
The TH5110D Thermostat provides electronic control of
24 Vac single- stage heating and cooling systems or
750 mV heating systems.
For assistance with your product please visit
www.honeywellhome.com
at 1-800-468-1502.
Read and Save these Instructions
FEATURES
• Large, Clear, Backlit Display: Easy-to-see and read—
even in the dark.
• Precise Comfort Control: ±1ºF of your set
temperature.
• Simplified Operation: Soft-key controls.
Simultaneously displays both room temperature and
temperature setting.
• Easy Change Battery Holder.
• Built-in Compressor Protection: Minimum-off timer
protects compressor from restarting too early after a
shutdown.
Operating Instructions
Cool
Setting
System
Cool
M37933A
or call Customer Care toll free
OPERATING INSTRUCTIONS
GET TO KNOW YOUR
THERMOSTAT
Thermostat
DIGITAL DISPLAY
FAN BUTTON
SELECTS AUTO OR ON
SYSTEM BUTTON
SELECTS HEAT, OFF, COOL OR AUTO
Display
INSIDE
INDICATES BATTERIES ARE
TEMPERATURE
LOW AND MUST BE REPLACED
Replace Battery
Inside
Fan
System
On Auto
CURRENT
FAN SETTING
BATTERY HOLDER LATCH
PRESS TO RELEASE
BATTERY HOLDER
BATTERY
HOLDER
TWO AAA
ALKALINE
BATTERIES
TEMPERATURE
SETTING BUTTON
RAISES
TEMPERATURE
SETTING
TEMPERATURE
SETTING BUTTON
LOWERS
TEMPERATURE
SETTING
M22084A
Heat
Cool
Setting
TEMPERATURE
SETTING
Heat
On
INDICATES
Cool
On
THERMOSTAT IS
"CALLING" FOR
HEAT OR COOL
Heat Cool
AutoOff
CURRENT
SYSTEM SETTING
M22083
69-1713-01
